Auxiliary Input / Output Jack: Service and Repair

Audio & Visual System - Part 4:

VIDEO(VIDEO ADAPTER) TERMINAL

REPLACEMENT

1. REMOVE REAR DOOR SCUFF PLATE LH
2. REMOVE REAR DOOR WEATHERSTRIP LH
3. REMOVE BACK DOOR WEATHERSTRIP
4. REMOVE BACK DOOR SCUFF PLATE
5. REMOVE QUARTER TRIM PANEL ASSEMBLY FRONT LH




6. REMOVE VIDEO(VIDEO ADAPTER) TERMINAL

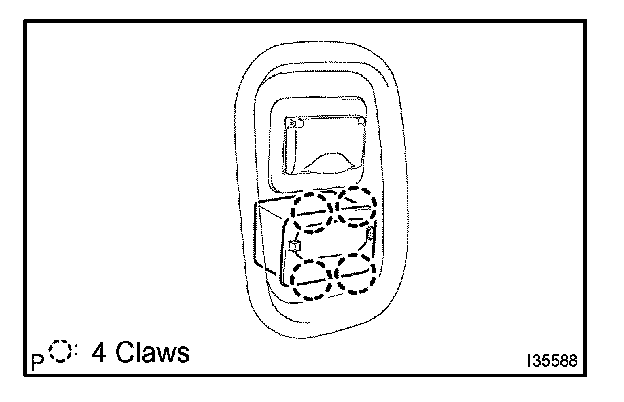

a. Release the 4 claw fittings and remove the video (video adapter) terminal.
