ECU Power Source Circuit

ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to operate the multiplex network body ECU.

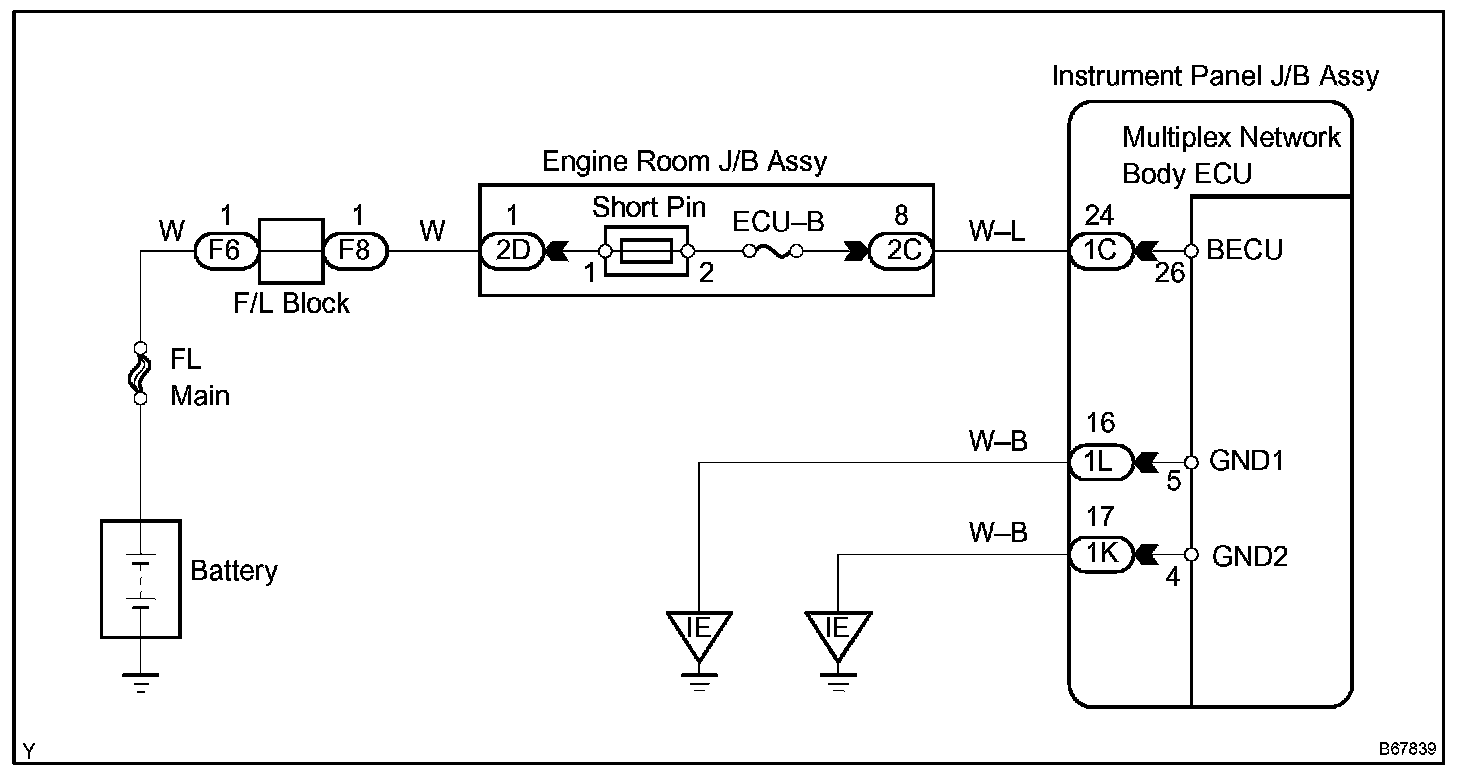

Wiring Diagram:






Step 1:

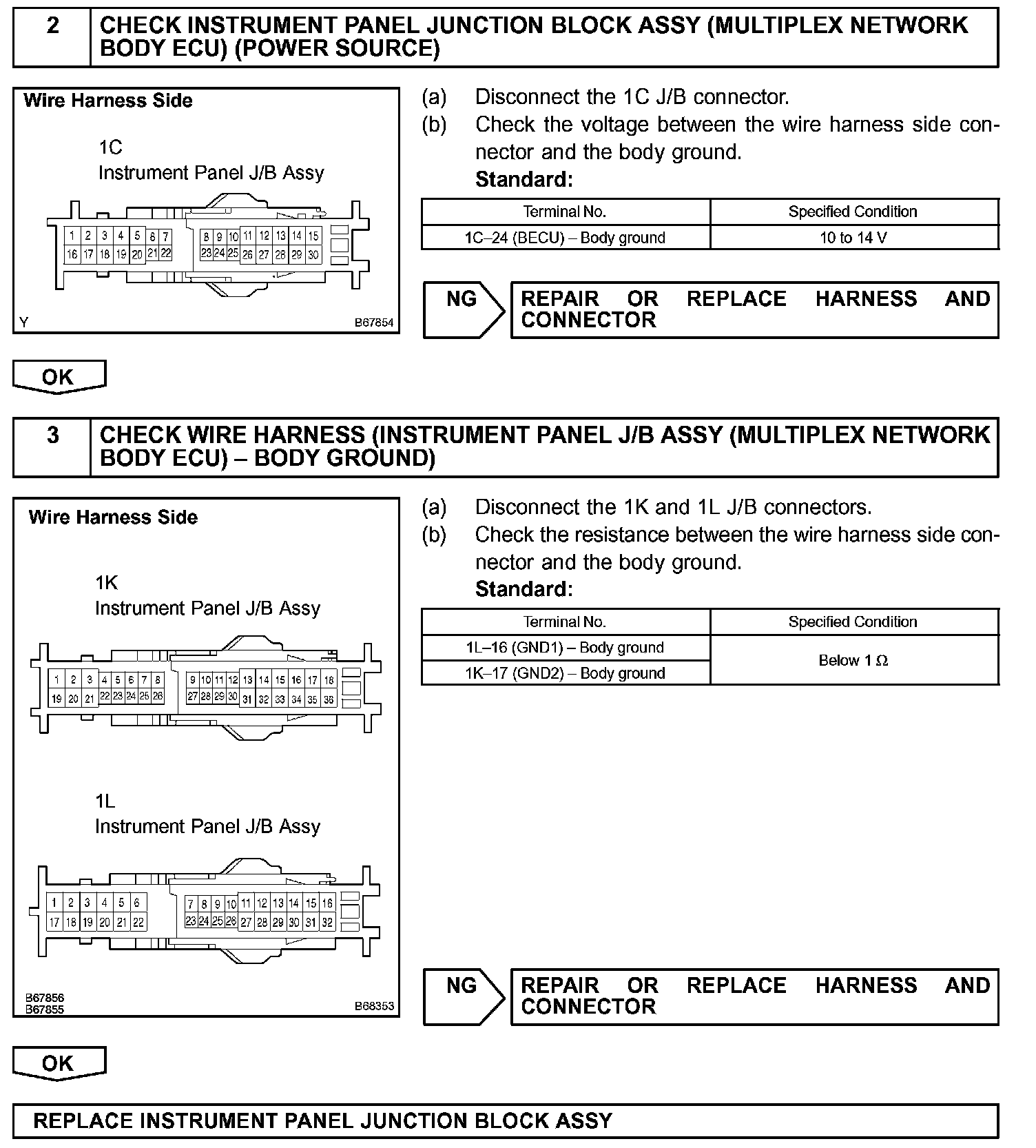

Step 2 - 3:
