Symptom Related Diagnostic Procedures

POWER WINDOW CONTROL SYSTEM

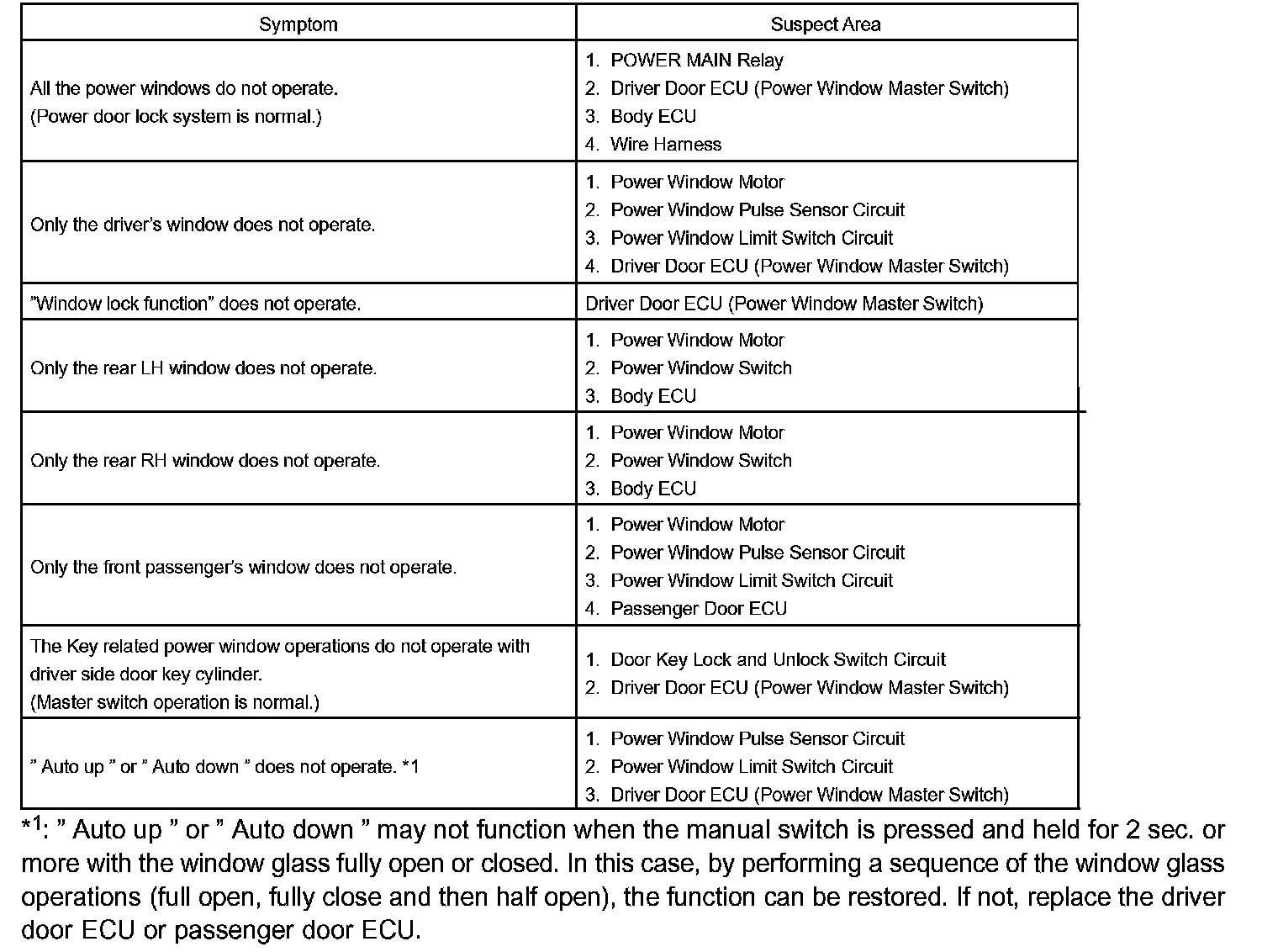

Problem Symptoms Table - Power Window Control System:

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.
