Heated Glass Element Switch: Testing and Inspection

Connector disconnected:
INSPECT DEFOGGER SWITCH (in INTEGRATION CONTROL PANEL SWITCH) CIRCUIT

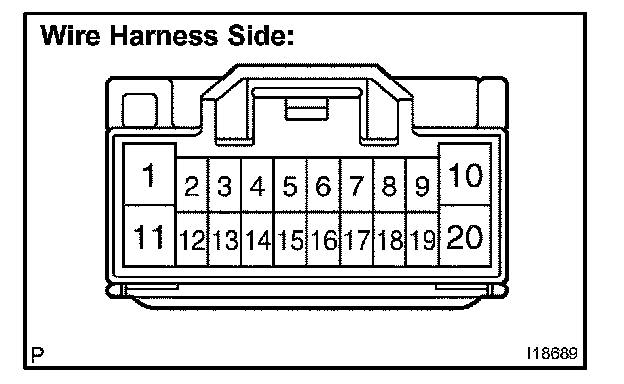

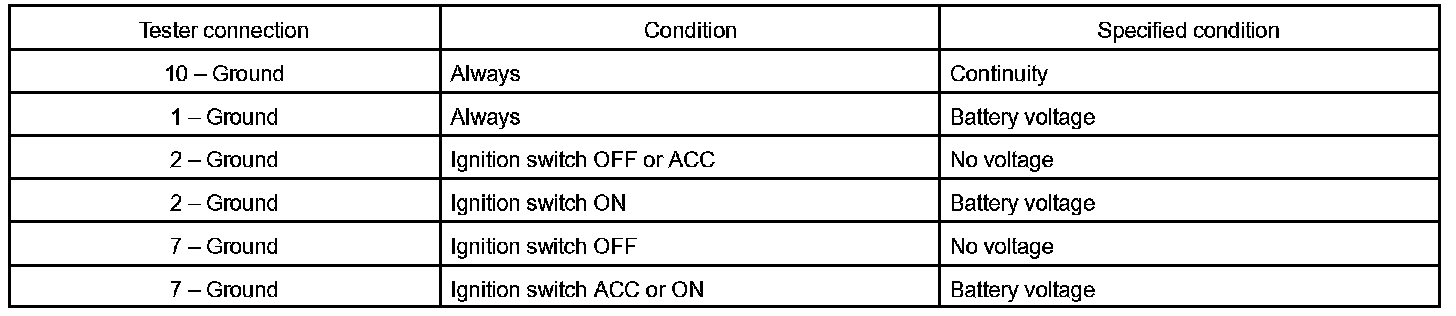

Disconnect the connector from the panel switch and inspect the connector on the wire harness side, as shown in the chart below.
If the circuit is not as specified, inspect the circuit connected to other parts.
