Replacement

REAR DIFFERENTIAL CARRIER








COMPONENTS

REPLACEMENT
REPLACE COMPANION FLANGE DUST DEFLECTOR





a. Using SST, a socket wrench and a press, remove the dust deflector.
SST 09950-00020

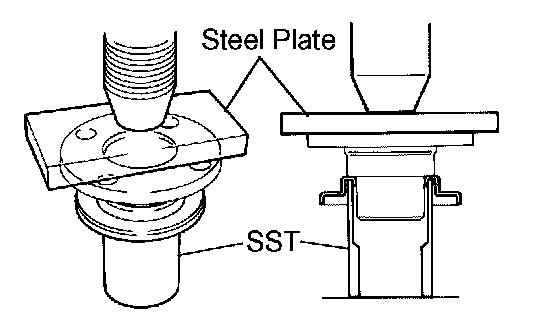

b. Using SST, a press and steel plate, install a new dust deflector.
SST 09523-36010
