Seals and Gaskets: Service and Repair

EXTENSION HOUSING OIL SEAL (A750E)

ON-VEHICLE REPAIR

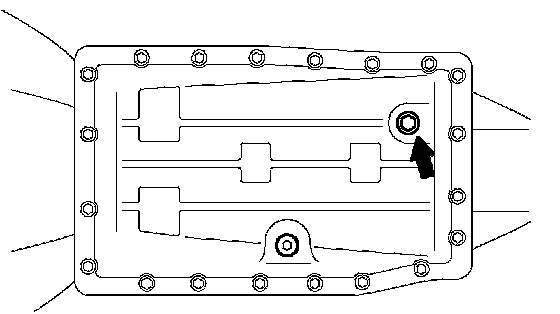

1. DRAIN AUTOMATIC TRANSMISSION FLUID
a. Remove the drain plug and gasket, and drain the ATF.
b. Install a new gasket and the drain plug.
Torque: 20 Nm (204 kgf-cm, 15 ft. lbs.)
2. REMOVE PROPELLER SHAFT





3. REMOVE REAR OIL SEAL

NOTICE: Clean the extension housing before removing the oil seal.

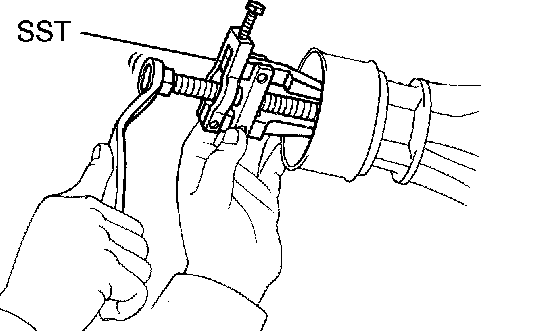

Using SST, remove the oil seal.
SST 09308-10010





4. INSTALL OIL SEAL

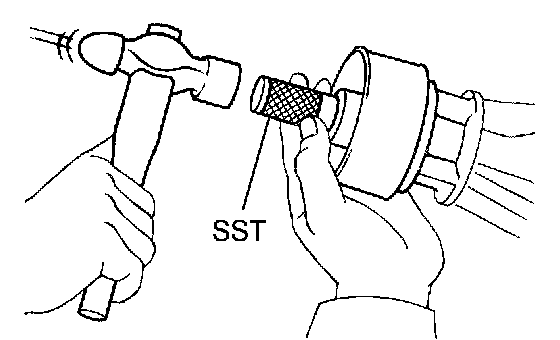

a. Using SST and a hammer, carefully drive a new oil seal in until it stops.
SST 09325-40010
b. Coat the lip of the oil seal with MP grease.
5. INSTALL PROPELLER SHAFT
6. CHECK FLUID LEVEL
