Removal and Installation

Starter Part 1:

Starter Part 2:

Starter Part 3:

REMOVAL

1. REMOVE THROTTLE BODY COVER
2. REMOVE INTAKE AIR CONNECTOR
3. DISCONNECT CABLE FROM NEGATIVE (-) BATTERY TERMINAL
4. DISCONNECT THROTTLE BODY ASSEMBLY FROM INTAKE MANIFOLD
5. REMOVE INTAKE MANIFOLD ASSEMBLY
6. REMOVE AIR PUMP ASSEMBLY




7. REMOVE STARTER

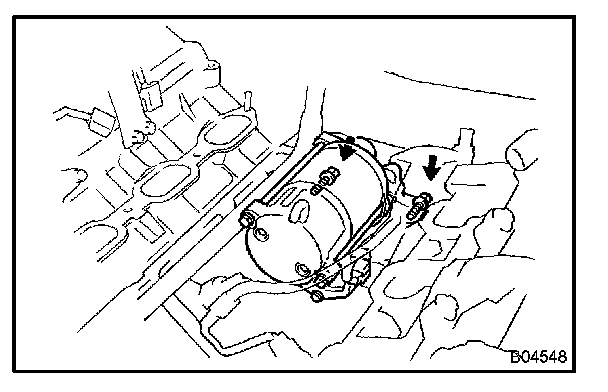

a. Remove the 2 bolts holding the starter from the cylinder block.
b. Disconnect the starter from the cylinder block.




c. Disconnect the starter connector.
d. Remove the nut, bolt and disconnect the starter wire.

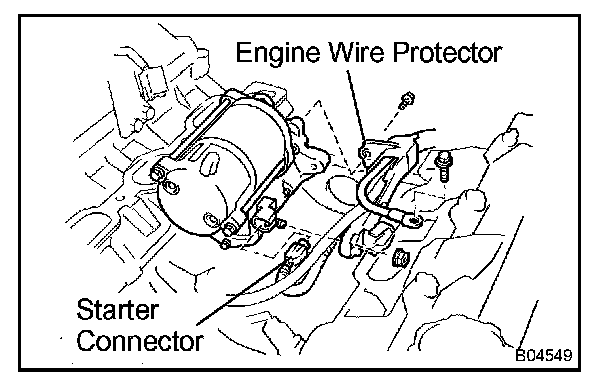

e. Remove the bolt, and disconnect the engine wire protector from the starter.
f. Remove the starter.

INSTALLATION




1. INSTALL STARTER

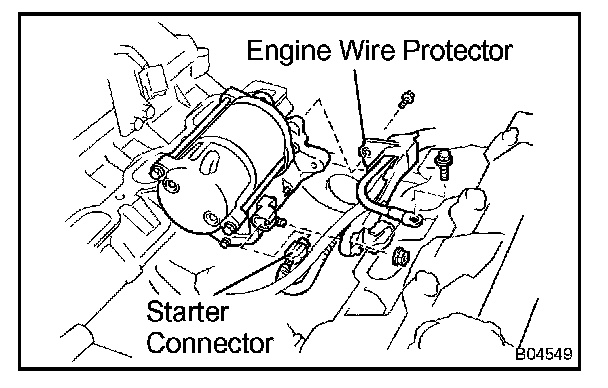

a. Install the engine wire protector to the starter with the bolt.

Torque: 9.81 N.m (100 kgf.cm, 84 in.lbf)

b. Connect the starter wire with the nut.

Torque: 9.81 N.m (100 kgf.cm, 84 in.lbf)

c. Connect the starter connector.
d. Connect the starter to the cylinder block.
e. Connect the engine wire with the bolt.

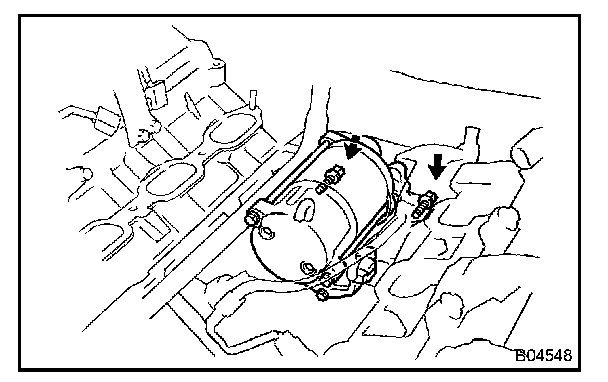

f. Install the starter with the 2 bolts.

Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

2. INSTALL AIR PUMP ASSEMBLY
3. INSTALL INTAKE MANIFOLD ASSEMBLY
4. CONNECT THROTTLE BODY ASSEMBLY TO INTAKE MANIFOLD
5. INSTALL INTAKE AIR CONNECTOR
6. INSTALL THROTTLE BODY COVER
7. CONNECT CABLE TO NEGATIVE (-) BATTERY TERMINAL
8. PERFORM INITIALIZATION
Some system need initialization when disconnecting the cable from the battery terminal.
