Initial Inspection and Diagnostic Overview
INSPECTION

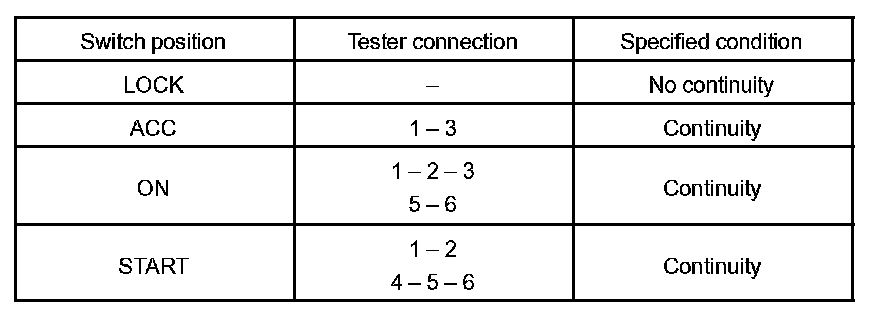

1. INSPECT IGNITION SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

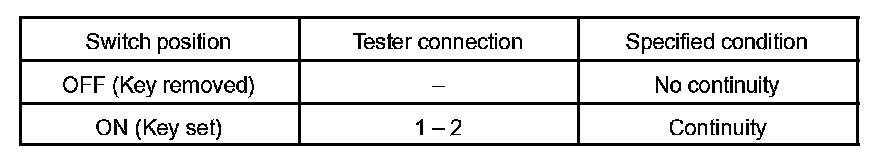

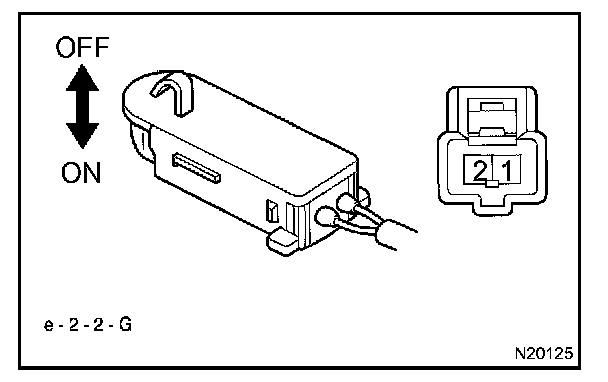

2. INSPECT KEY UNLOCK WARNING SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
1. INSPECT IGNITION SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
2. INSPECT KEY UNLOCK WARNING SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
