Vehicle Skid Control (VSC) System

FOR VEHICLES EQUIPPED WITH VEHICLE SKID CONTROL (VSC) SYSTEM

NOTE:
- Even if TRAC is initially OFF, it automatically becomes ON when the vehicle speed becomes about 30 km/h (19 mph) or more. Therefore, please drive in the test mode to avoid dangerous situations caused by the TRAC control.
- VSC/ABS may be failed when the vehicle is driven on the two-wheel chassis dynamo. Therefore, after driving on the chassis dynamo, please clear DTC before normal driving.
- Fasten the vehicle with the lock chain.


a. Confirm VSC system is OFF




1. Turn the ignition switch OFF.

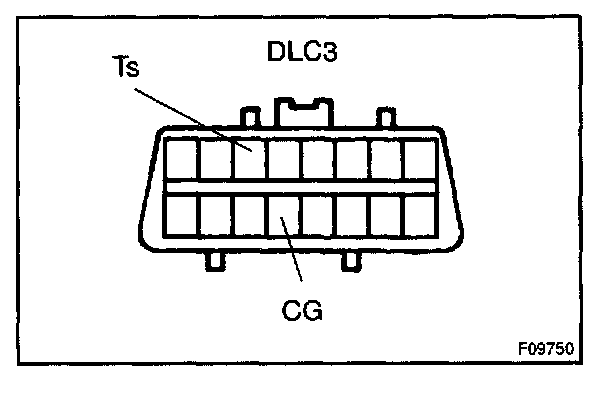

2. Using SST, connect terminals Ts and CG of DLC3.
SST 09843-18040

3. Start the engine.

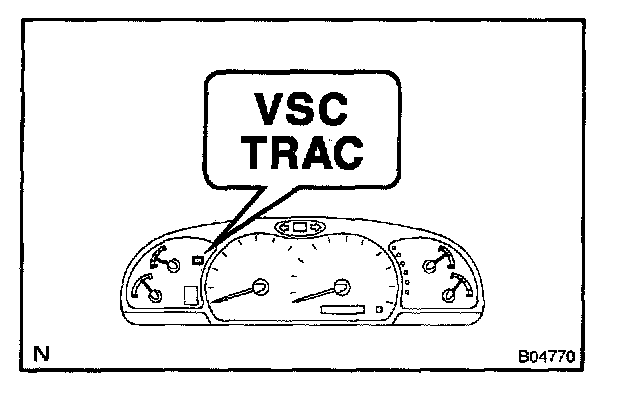

4. Check that the VSC TRAC warning light blinks.
5. After the measurement, remove the SST and restart the engine. At this time make sure that the VSC TRAC warning light is off.

b. Notice in VSC operation.

1. Removal and reinstall of VSC-related components may misadjust them. Do not remove or reinstall them without necessary.
2. When conducting VSC-related operations, do not fail to make sure that the preparation and the finishing of the operation are all performed in accordance with the direction given.
