Removal and Installation

Curtain Shield Airbag Assembly:

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

NOTE:
- If the wiring connector of the SRS is disconnected with the ignition switch in the ON position, DTCs will be recorded.
- Never use airbag parts from another vehicle. When replacing parts, replace them with new ones.

1. PRECAUTION
Refer to Air Bag Systems; Service Precautions.
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

3. REMOVE REAR SEAT NO. 2 ASSEMBLY
4. REMOVE REAR DOOR SCUFF PLATE
5. REMOVE REAR FLOOR PANEL SUPPORT PLATE
6. REMOVE QUARTER TRIM PLATE




7. REMOVE CURTAIN SHIELD AIRBAG SENSOR ASSEMBLY LH
a. Disconnect the curtain shield airbag sensor assembly LH connector.

NOTE: Disconnect the connector with the sensor assembly installed.

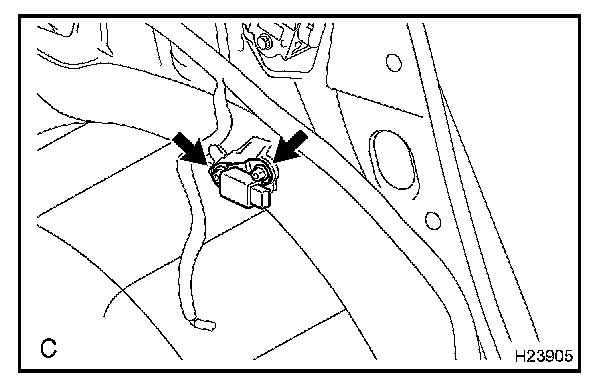

b. Remove the 2 nuts and curtain shield airbag sensor assembly LH.

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

NOTE:
- Never use SRS parts from another vehicle. When replacing parts, replace them with new ones.
- Never reuse the curtain shield airbag sensor assembly involved in a collision when the airbag has deployed.
- If the curtain shield airbag sensor assembly center has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
- When installing the curtain shield airbag sensor assembly center, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
- After installing, shake the curtain shield airbag sensor assembly to check that there is no looseness.





1. INSTALL CURTAIN SHIELD AIRBAG SENSOR ASSEMBLY LH

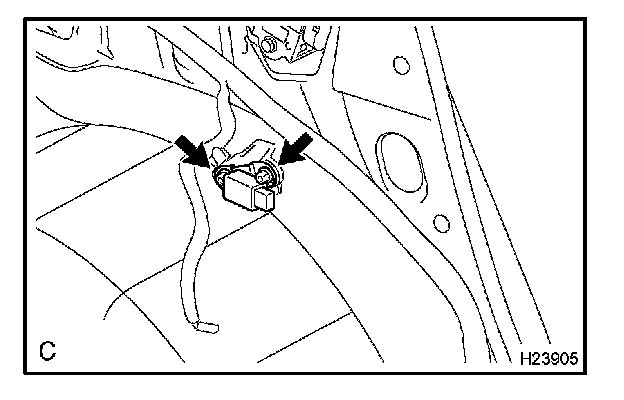

a. Install the curtain shield airbag sensor assembly LH with the 2 nuts.

Torque: 17.5 N.m (179 kgf.cm, 13ft.lbf)

b. Connect the curtain shield airbag sensor assembly LH connector.

2. INSTALL RETRACTOR OF FRONT SEAT OUTER BELT
3. INSTALL QUARTER TRIM PLATE
4. INSTALL REAR FLOOR PANEL SUPPORT PLATE
5. INSTALL REAR DOOR SCUFF PLATE
6. INSTALL REAR SEAT NO. 2 ASSEMBLY
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

8. PERFORM INITIALIZATION
Some system need initialization when disconnecting the cable from the negative battery terminal.

9. INSPECT SRS WARNING LIGHT
