Pinout Values and Diagnostic Parameters

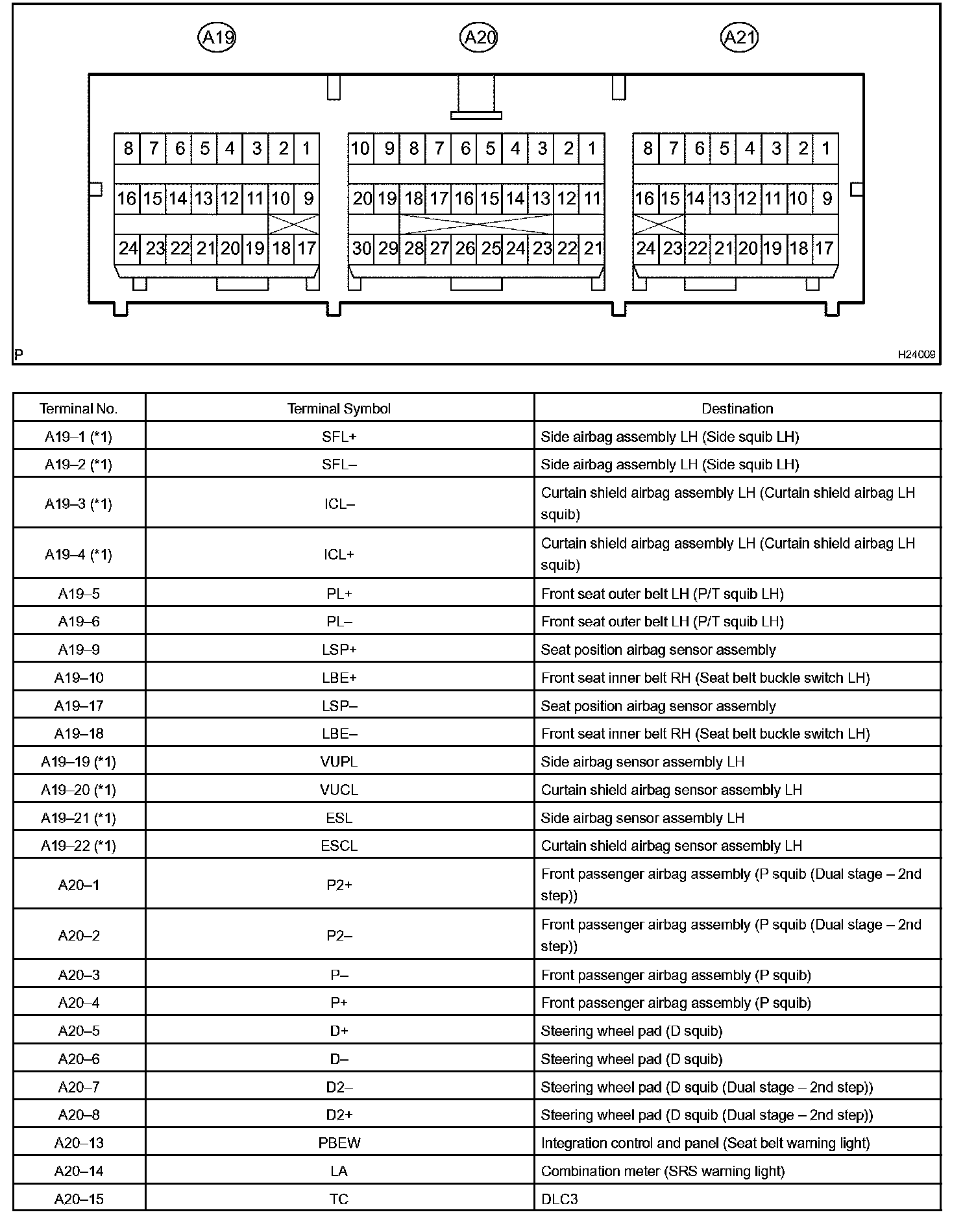

Terminals Of Control Module/Pinouts - Airbag Sensor Assembly Part 1:

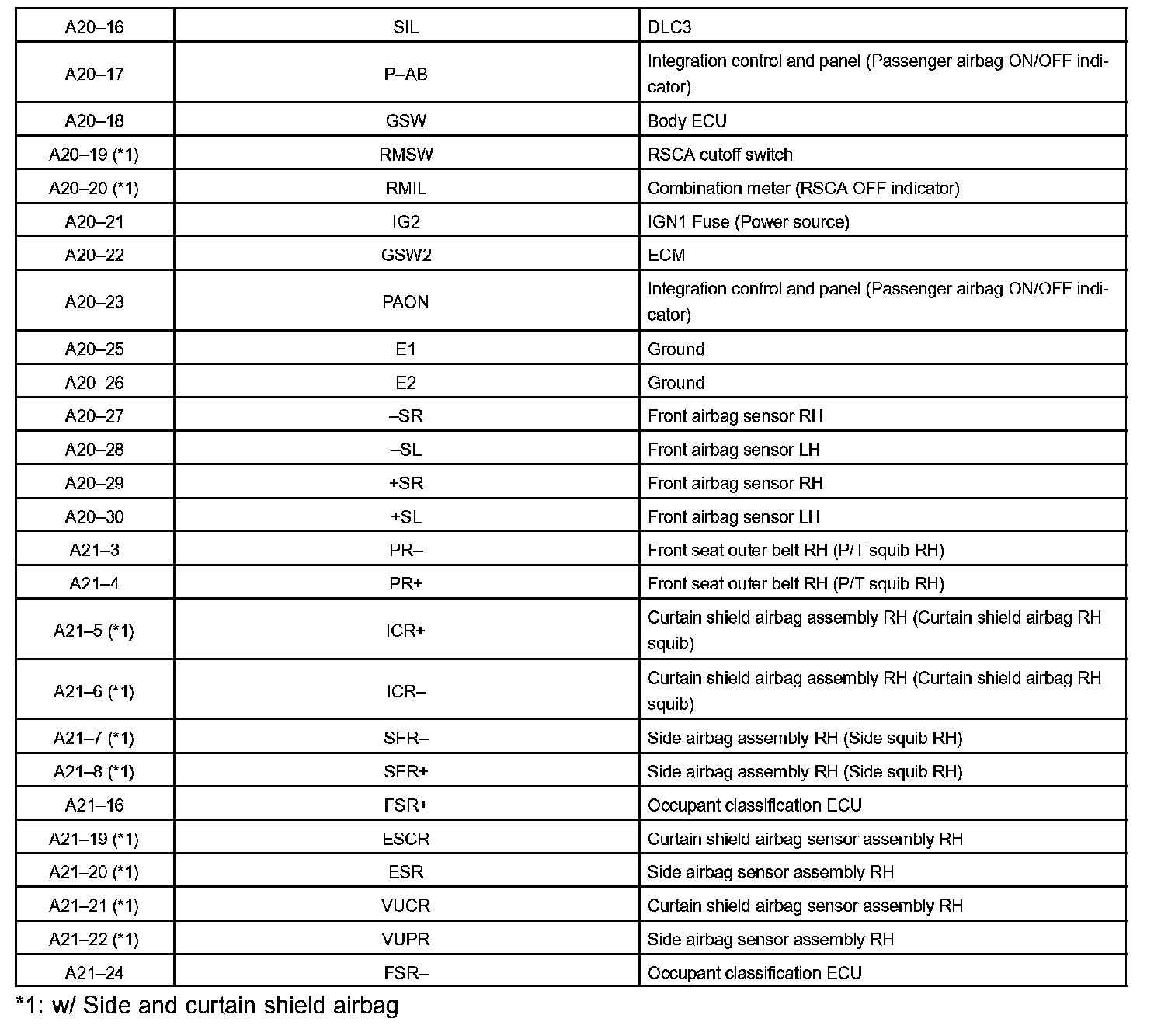

Terminals Of Control Module/Pinouts - Airbag Sensor Assembly Part 2:

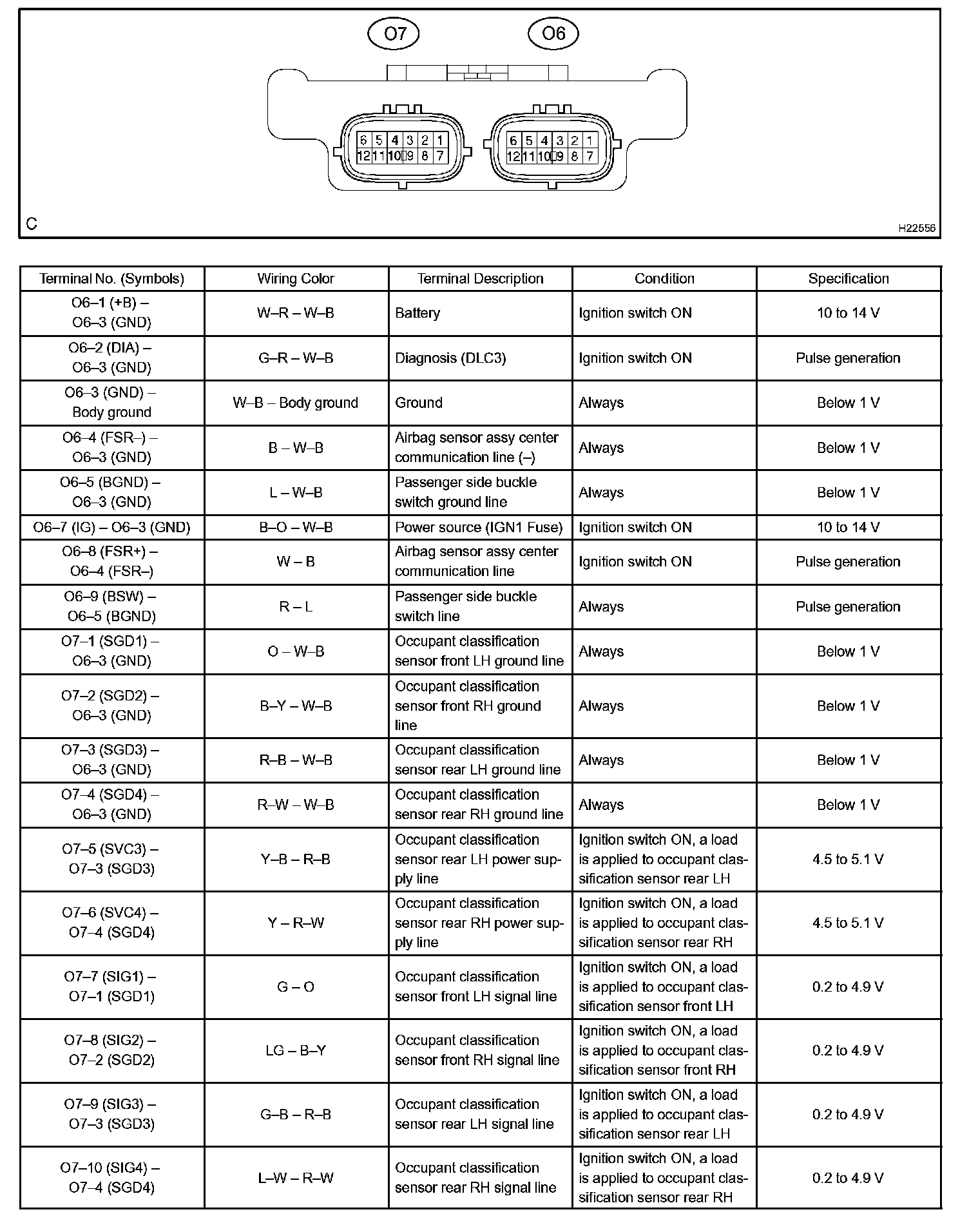

Terminals Of Control Module/Pinouts - Occupant Classification ECU Part 1:

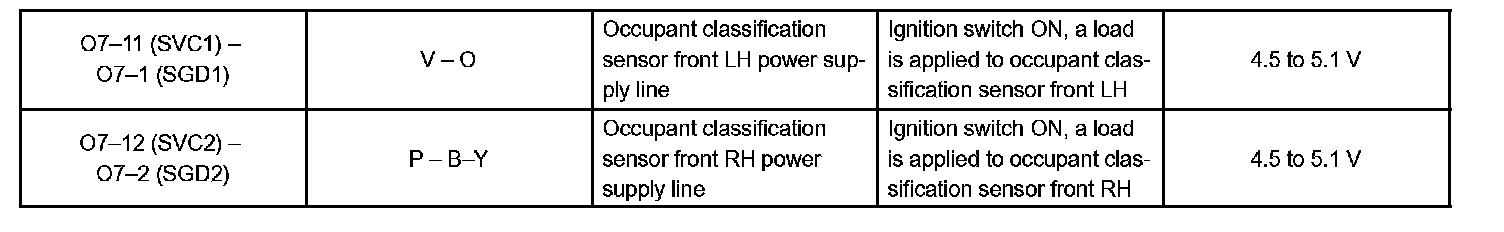

Terminals Of Control Module/Pinouts - Occupant Classification ECU Part 2:
