Removal and Installation

Airbag Sensor Assembly:

REMOVAL

NOTE:
- If the wiring connector of the SRS is disconnected with the ignition switch in the ON position, DTCs will be recorded.
- Never use airbag parts from another vehicle. When replacing parts, replace them with new ones.

1. PRECAUTION
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
- Never reuse an airbag sensor assembly if the airbag has previously deployed in a collision.

3. REMOVE SHIFTING HOLE COVER
4. REMOVE UPPER CONSOLE PANEL
5. REMOVE REAR CONSOLE BOX
6. REMOVE FRONT CONSOLE BOX




7. REMOVE AIRBAG SENSOR ASSEMBLY
a. Disconnect the holder (with connectors) from the airbag sensor assembly.

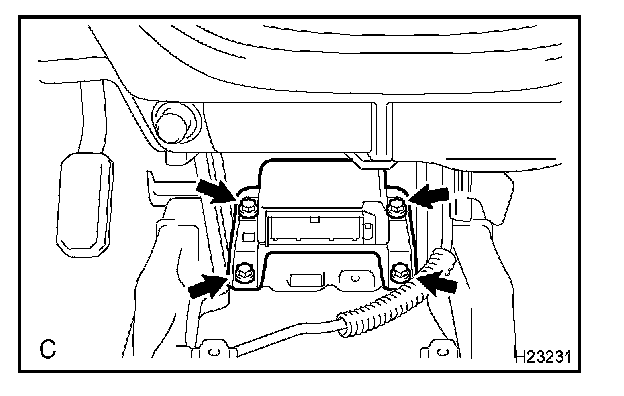

b. Remove the 4 bolts and airbag sensor assembly

INSTALLATION

NOTE:
- Never use SRS parts from another vehicle. When replacing parts, replace them with new ones.
- Never reuse the airbag sensor assembly involved in a collision when the airbag has deployed.
- If the airbag sensor assembly center has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
- When installing the airbag sensor assembly center, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
- After installing, shake the airbag sensor assembly to check that there is no looseness.




1. INSTALL AIRBAG SENSOR ASSEMBLY
a. Install the airbag sensor assembly with the 4 bolts.

Torque: 17.5 N.m (179 kgf.cm, 13ft.lbf)

b. Connect the airbag sensor holder (with connectors).

2. INSTALL FRONT CONSOLE BOX ASSEMBLY
3. INSTALL REAR CONSOLE BOX ASSEMBLY
4. INSTALL UPPER CONSOLE PANEL
5. INSTALL SHIFTING HOLE COVER
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
Some system need initialization when disconnecting the cable from the negative battery terminal.

8. INSPECT SRS WARNING LIGHT
