Suspension Control Module: Testing and Inspection

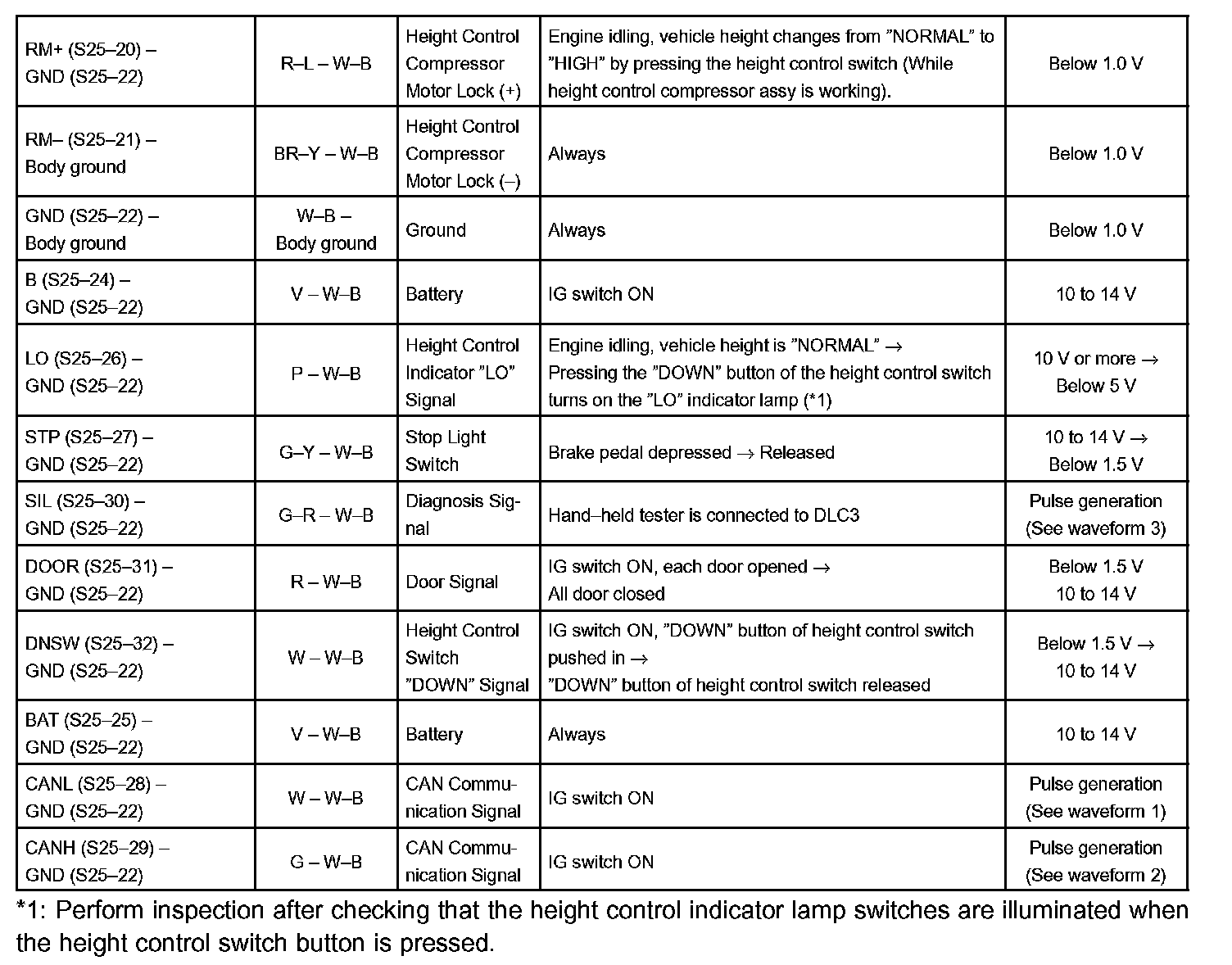

Terminals Of Control Module/Pinouts Part 1:



Terminals Of Control Module/Pinouts Part 2:

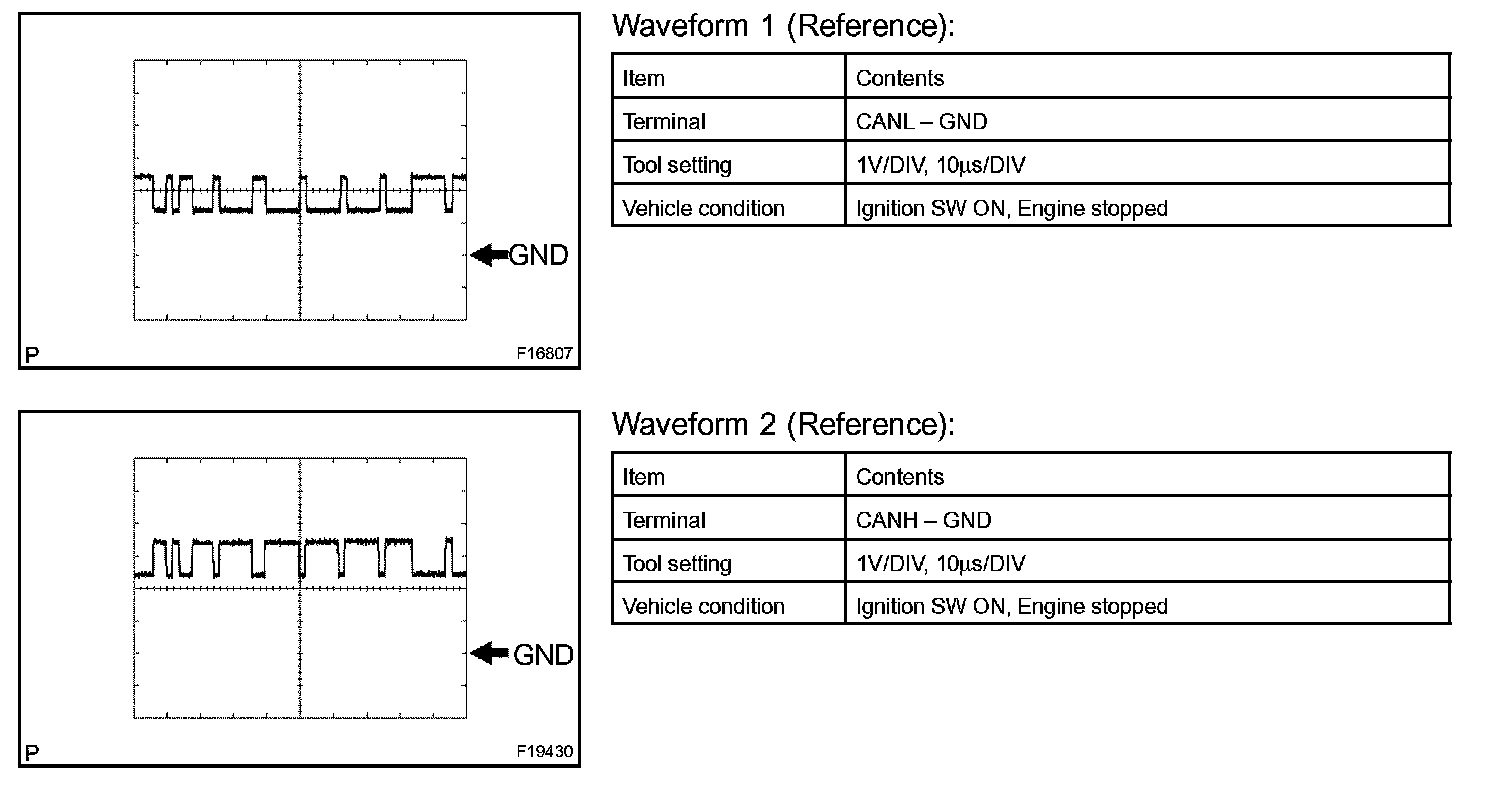

Oscilloscope Waveforms Part 1:



Oscilloscope Waveforms Part 2:
