Suspension Control Module: Service and Repair

SUSPENSION CONTROL ECU

REPLACEMENT
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE INTEGRATION CONTROL PANEL

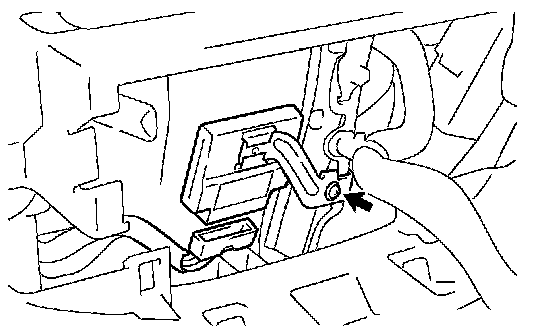

3. REMOVE SUSPENSION CONTROL ECU
a. Disconnect the connector.
b. Remove the screw and suspension control ECU.





4. INSTALL SUSPENSION CONTROL ECU
a. Install the suspension control ECU with the screw.
b. Connect the connector.
5. INSTALL INTEGRATION CONTROL PANEL
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
Some systems need initialization when disconnecting the cable from the negative battery terminal.
