Seat Temperature Relay: Testing and Inspection

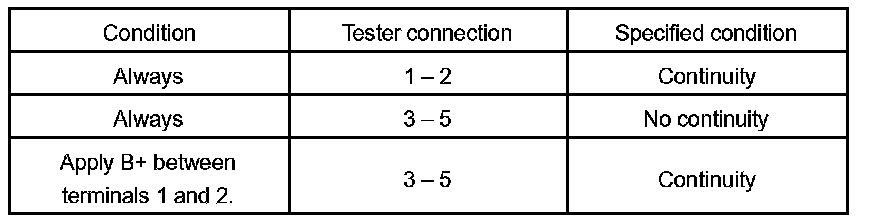

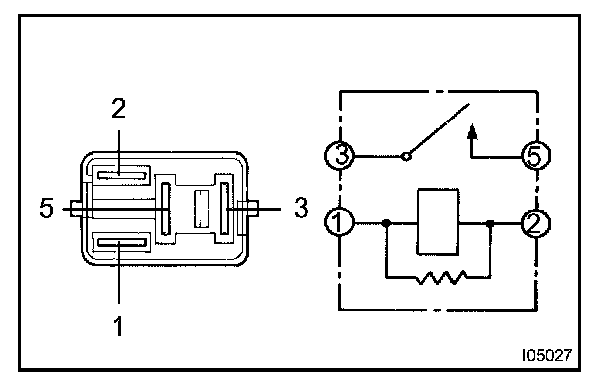

INSPECT SEAT HEATER RELAY CONTINUITY
If continuity is not as specified, replace the relay.
