Variable Induction Control Solenoid: Testing and Inspection

INSPECT VSV

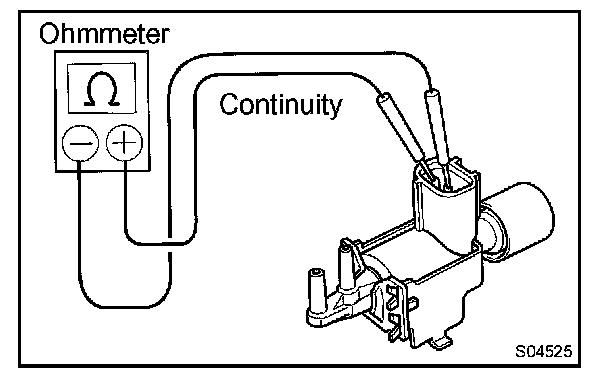

a. Using an ohmmeter, check that there is continuity between each terminal.

Resistance: 33 to 39 Ohm at 20 °C (68 °F) .

If there is no continuity, replace the VSV.

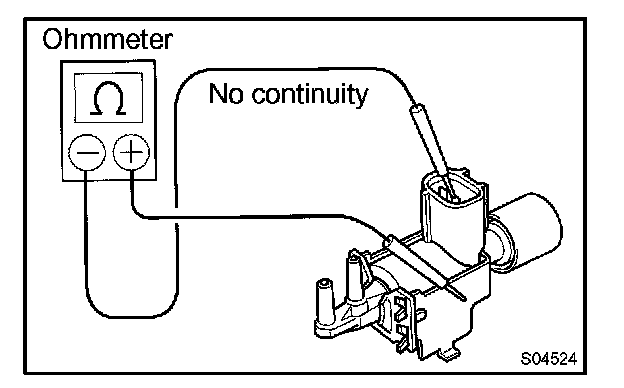

b. Using an ohmmeter, check that there is no continuity between each terminal and the body.

If there is continuity, replace the VSV.

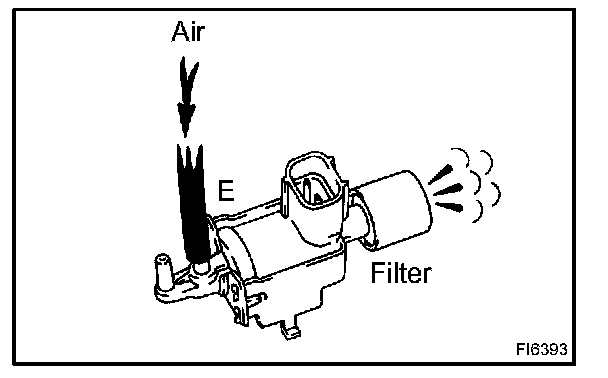

c. Check that air flows from port E to the filter.

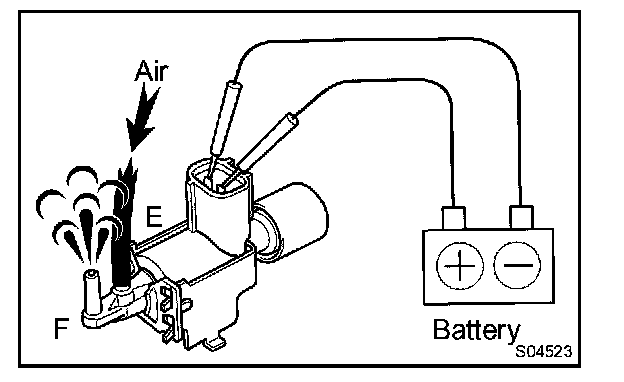

d. Apply battery voltage across the terminals.
e. Check that air flows from port E to port F.
If operation is not as specified, replace the VSV.
