Air Injection Pump: Testing and Inspection

INSPECT AIR PUMP

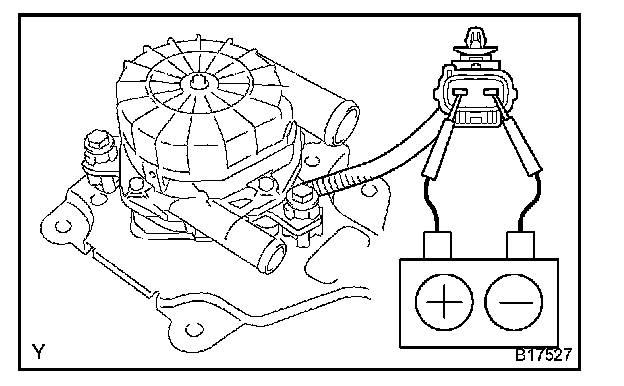

Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2, and check that air flows.

If operation is not as specified, replace the air pump.
