Suspension Control ECU Communication Stop Mode
Suspension Control ECU Communication Stop Mode
SUSPENSION CONTROL ECU COMMUNICATION STOP MODE

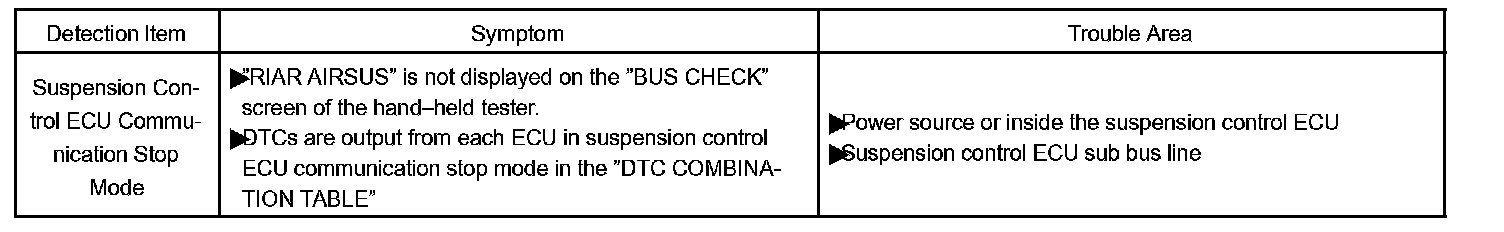

Detection Item:
MODE DESCRIPTION

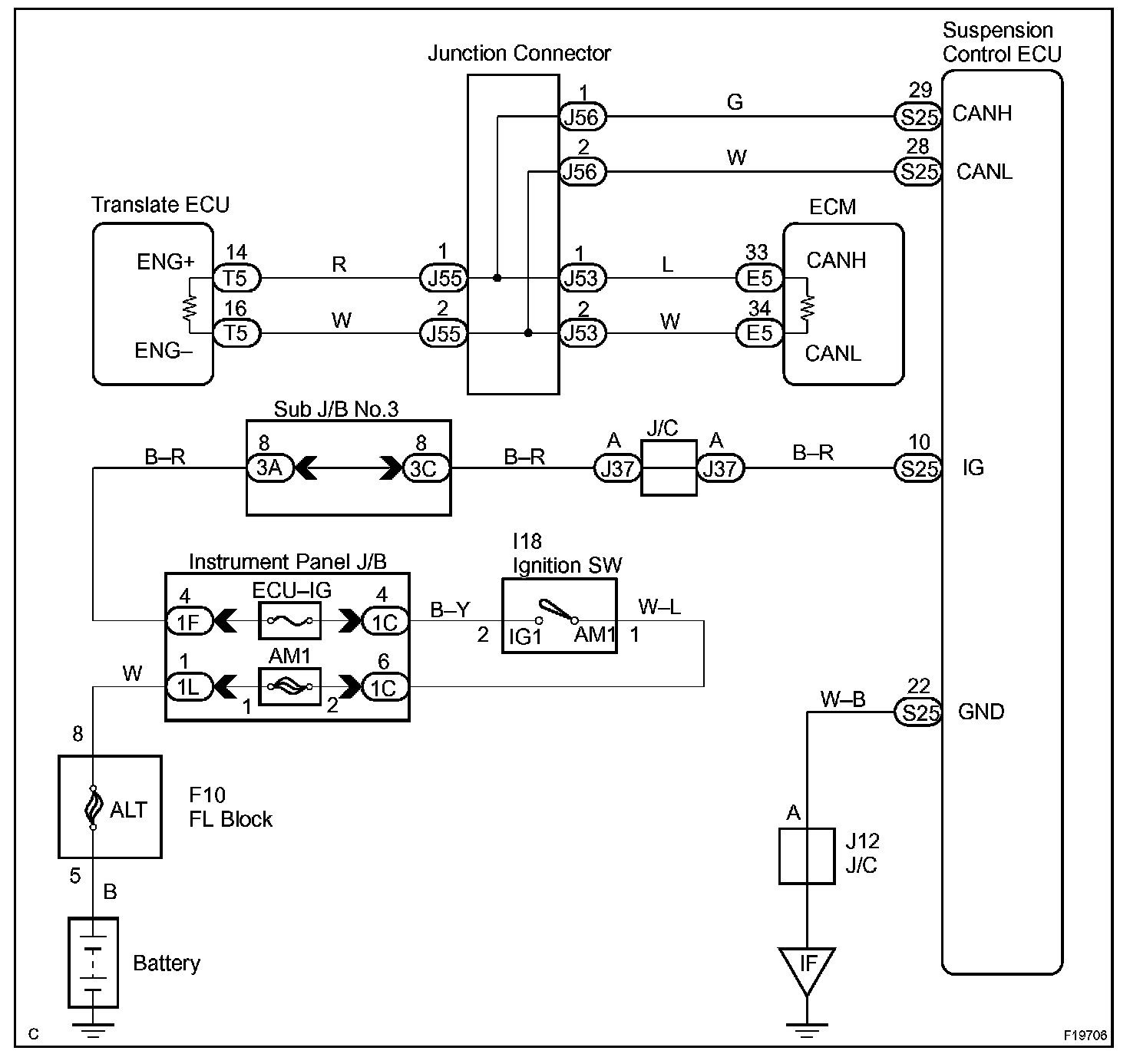

Wiring Diagram:

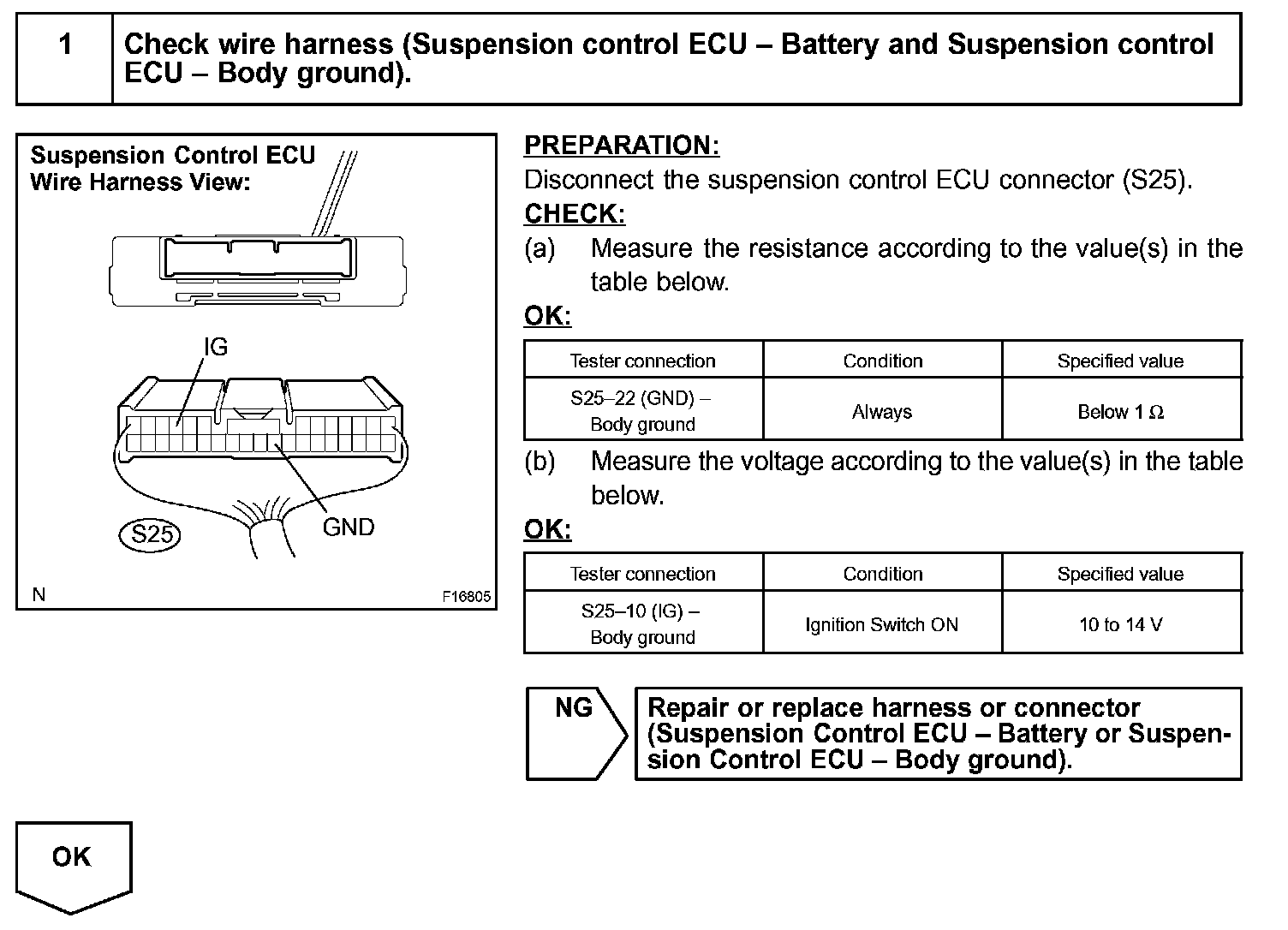

Step 1:

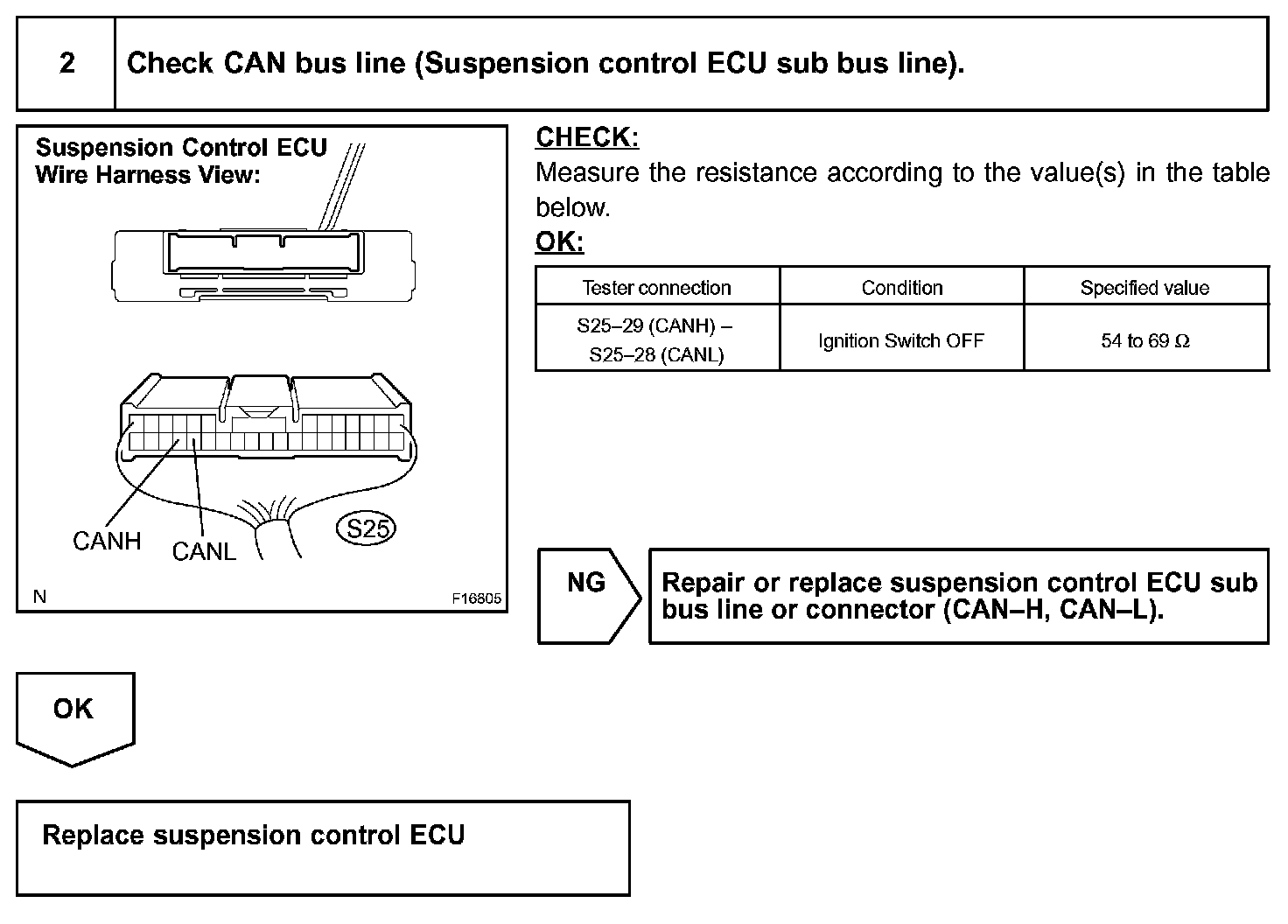

Step 2:
INSPECTION PROCEDURE
