Check CAN Bus Lines For Short Circuit

CHECK CAN BUS LINES FOR SHORT CIRCUIT

CIRCUIT DESCRIPTION

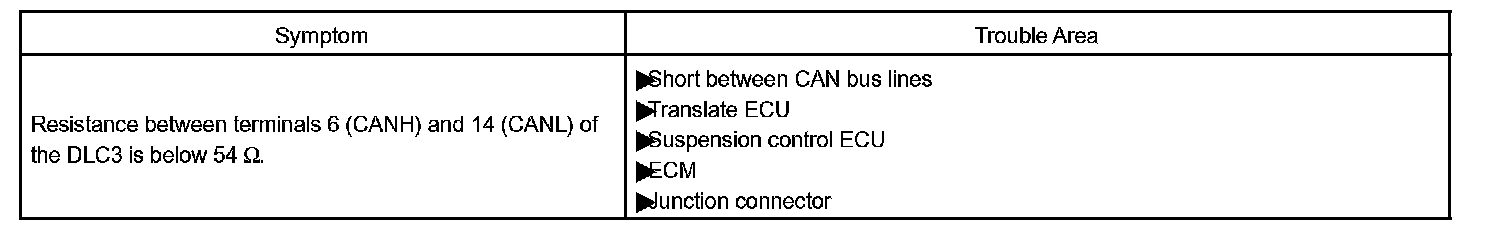

There may be a short circuit between the CAN bus lines when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 Ohms.

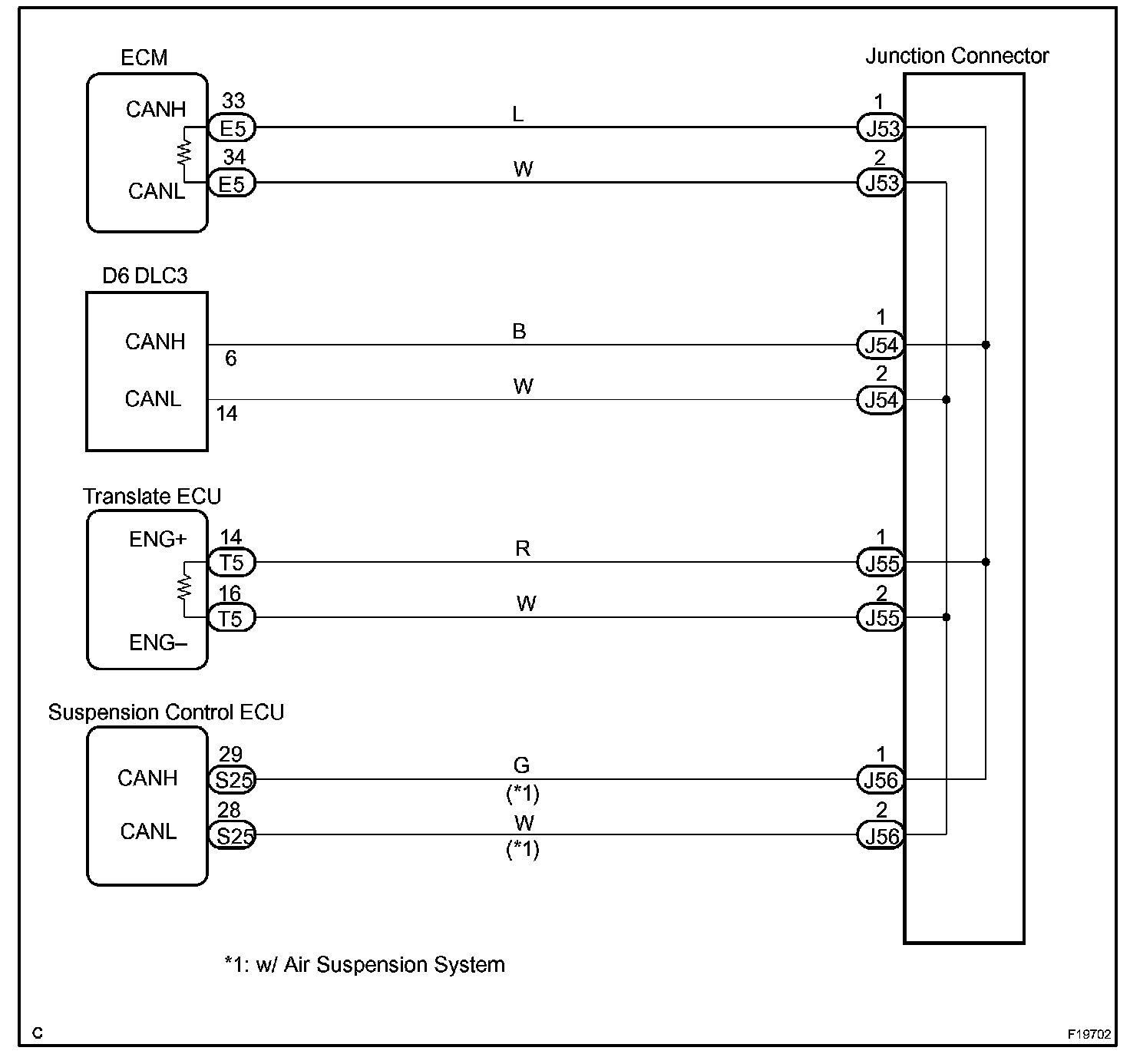

Wiring Diagram:

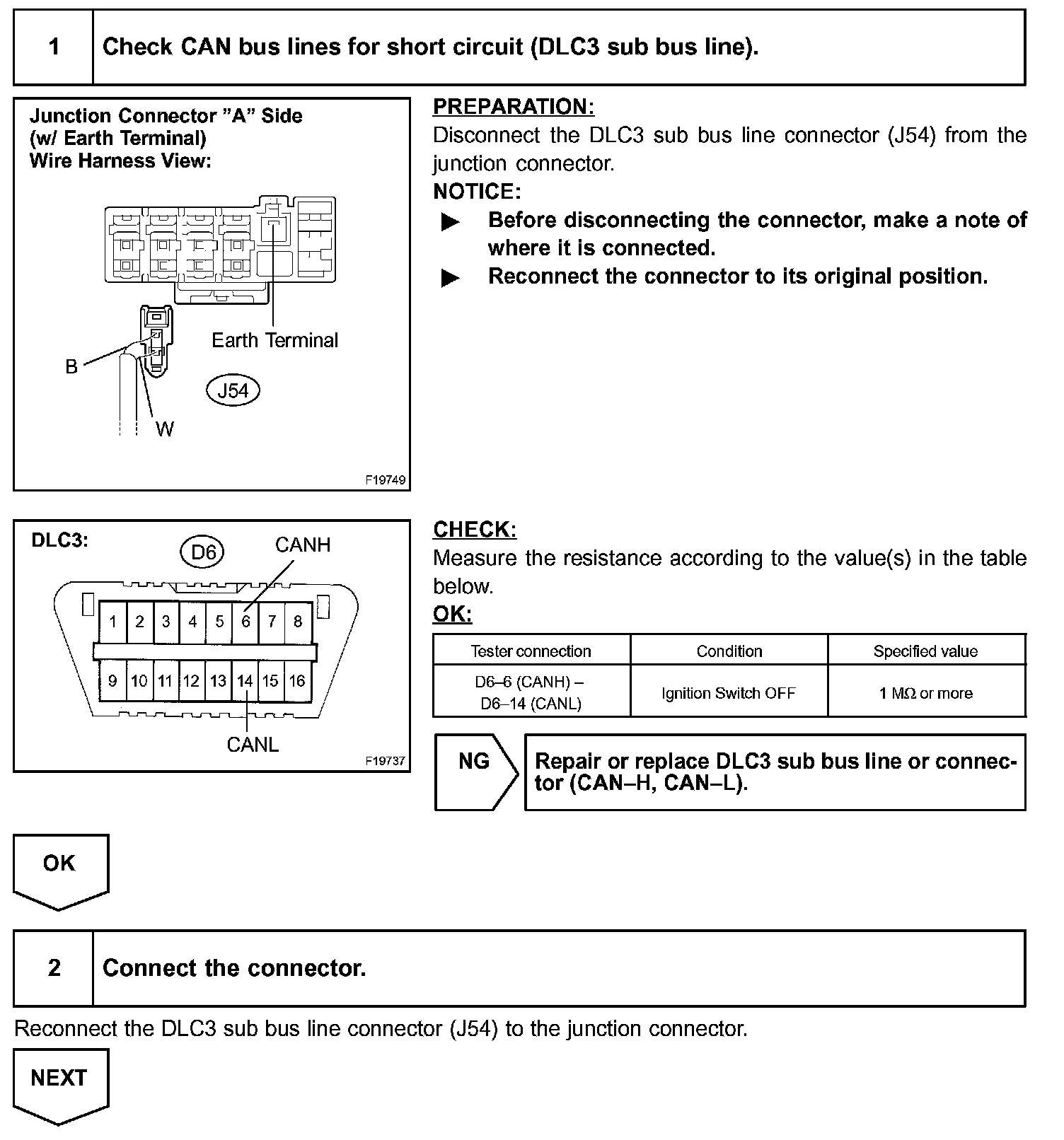

Step 1 - 2:

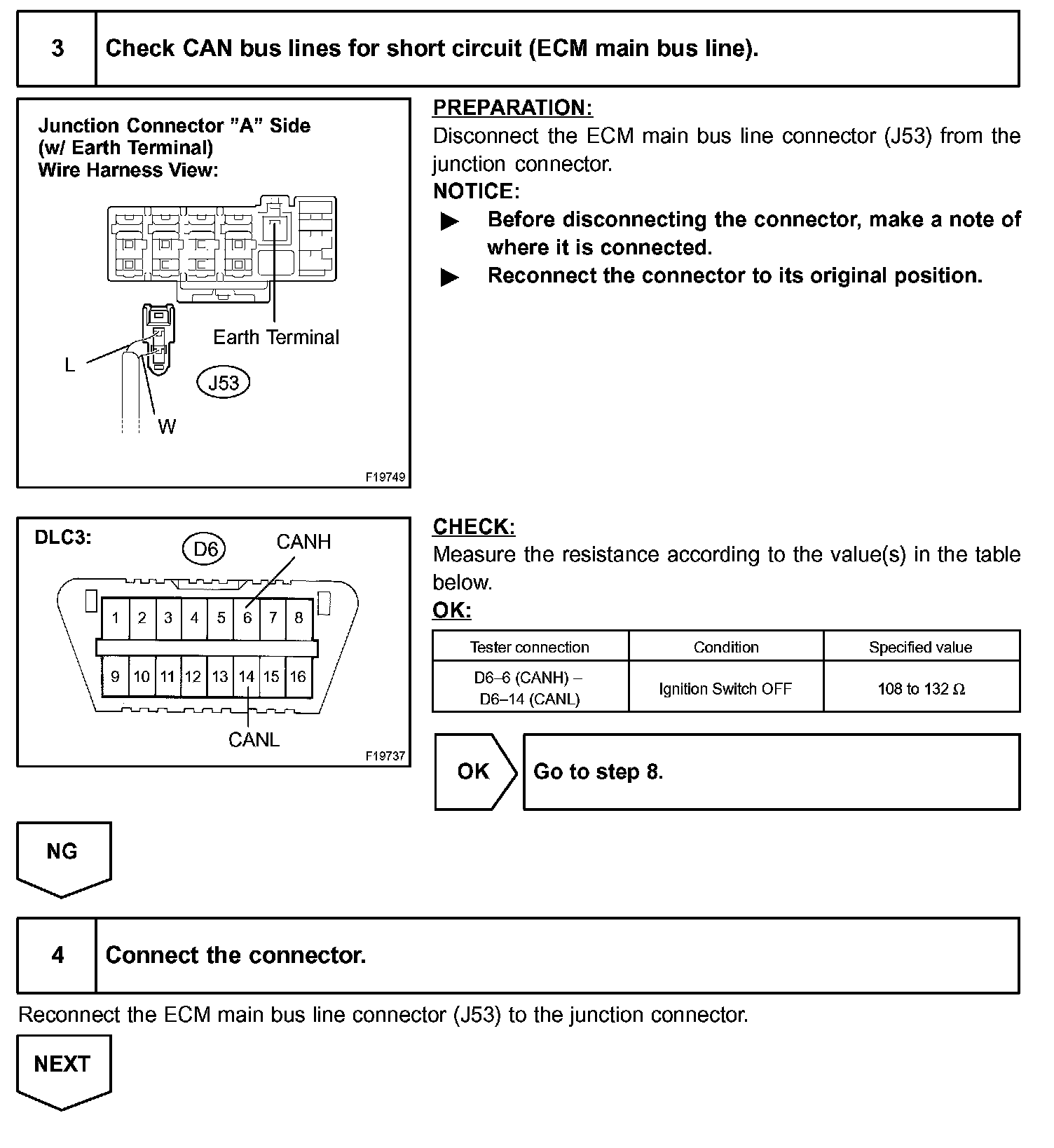

Step 3 - 4:

Step 5 - 6:

Step 7 - 8:

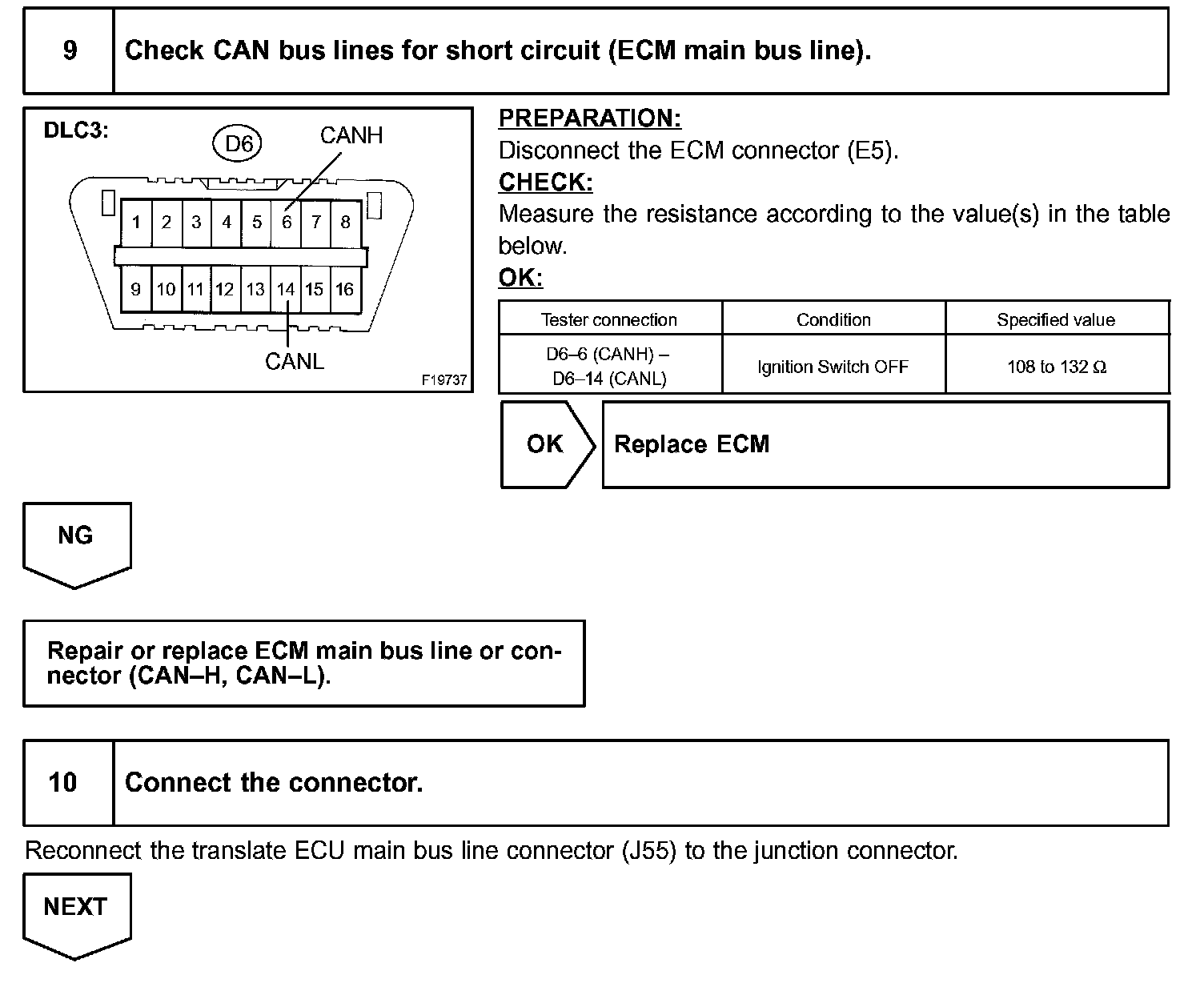

Step 9 - 10:

Step 11 - 12:

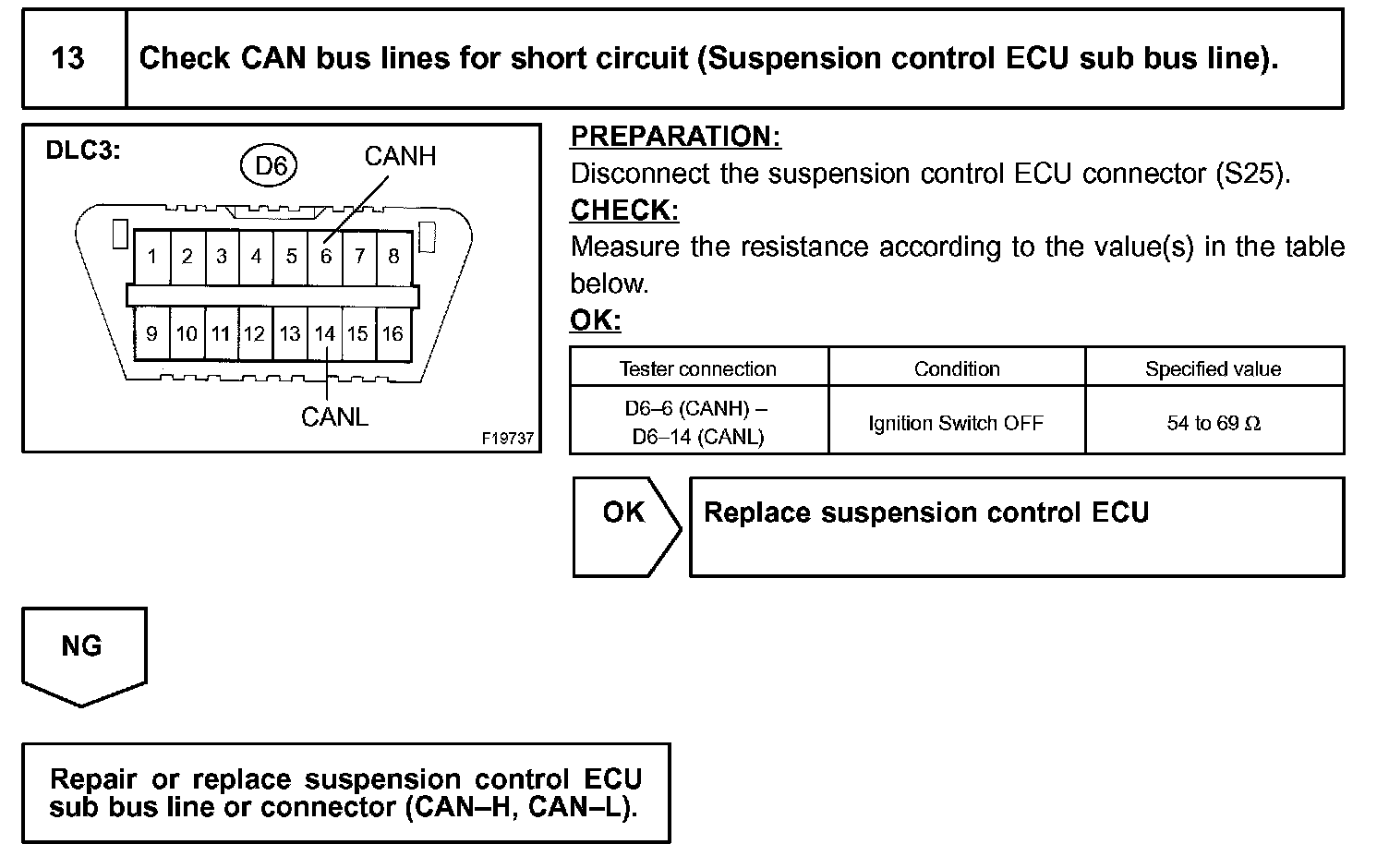

Step 13:

INSPECTION PROCEDURE
