Multiple Junction Connector: Locations

EB4 - ED2, EA - EN:

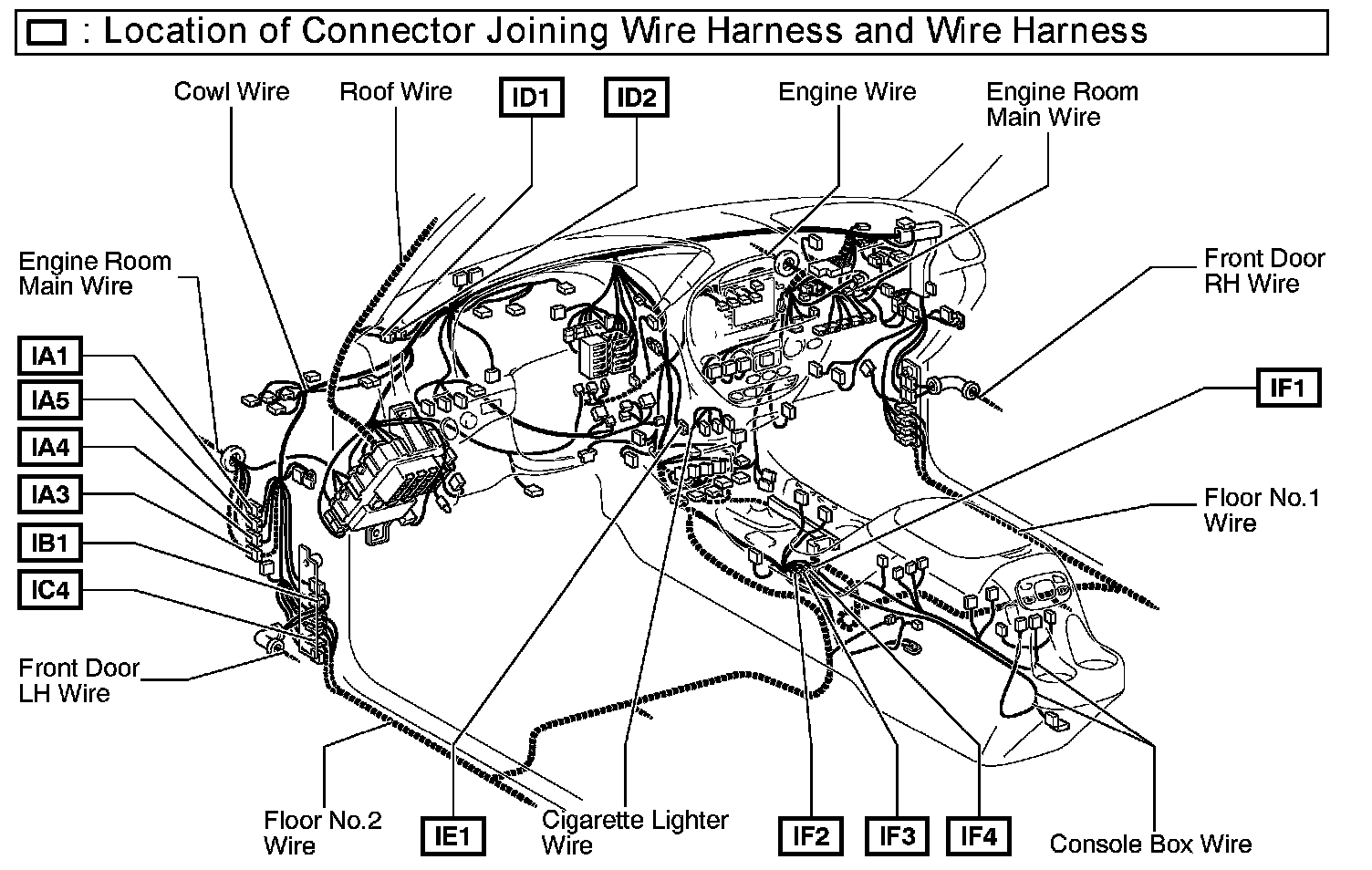

IA1 - IF4:

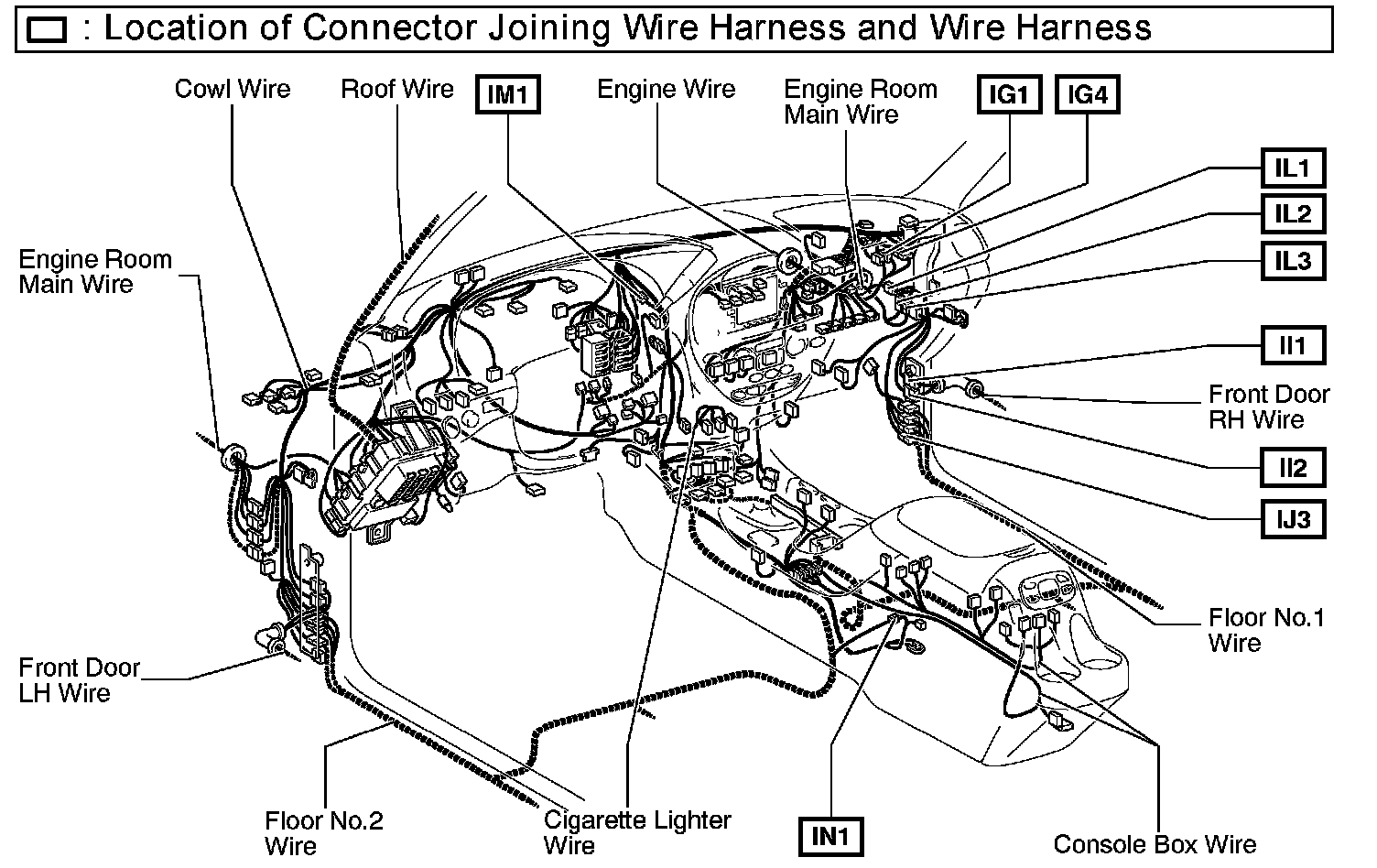

IG1 - IN1:

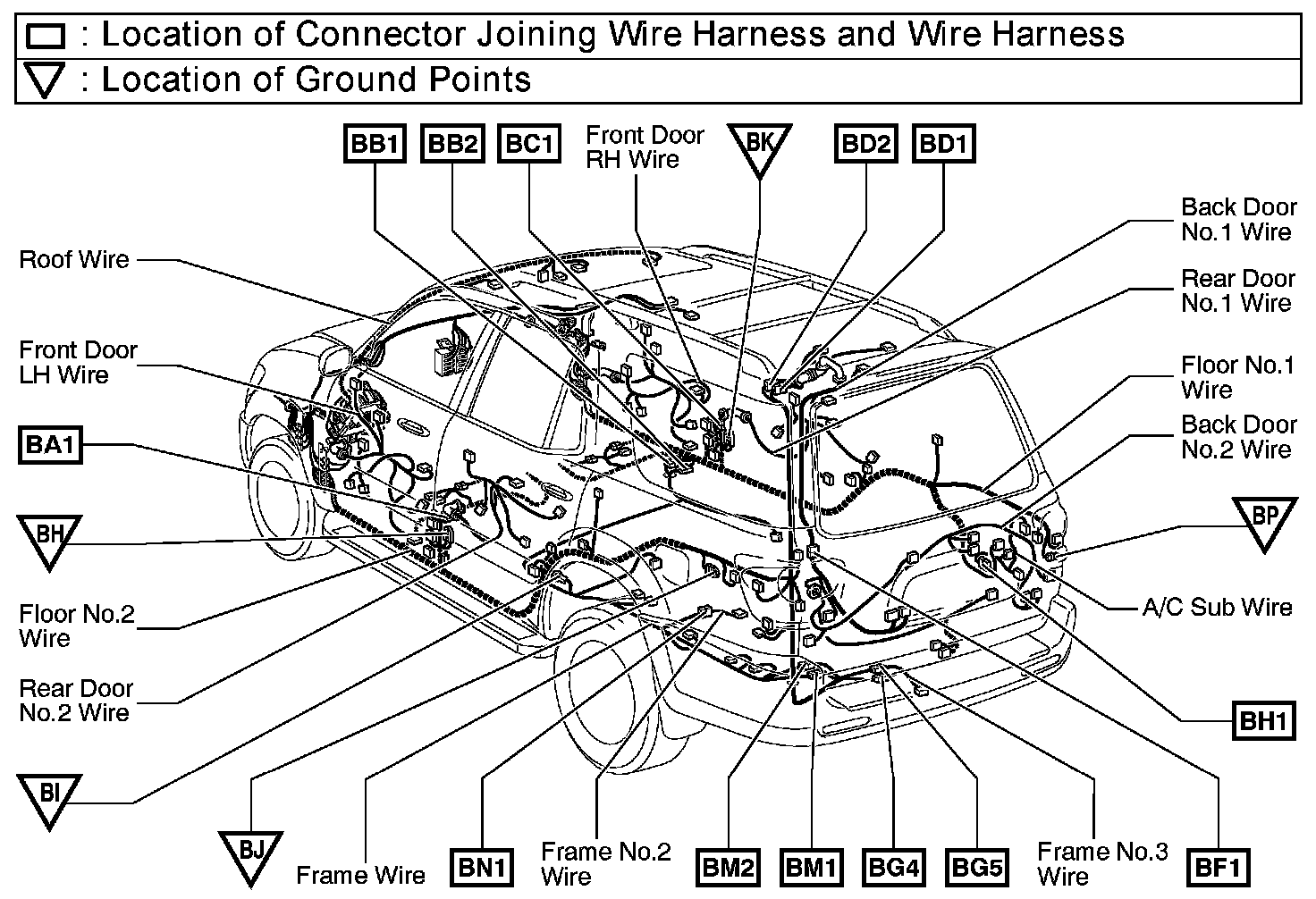

BA1 - BN1, BH - BP:

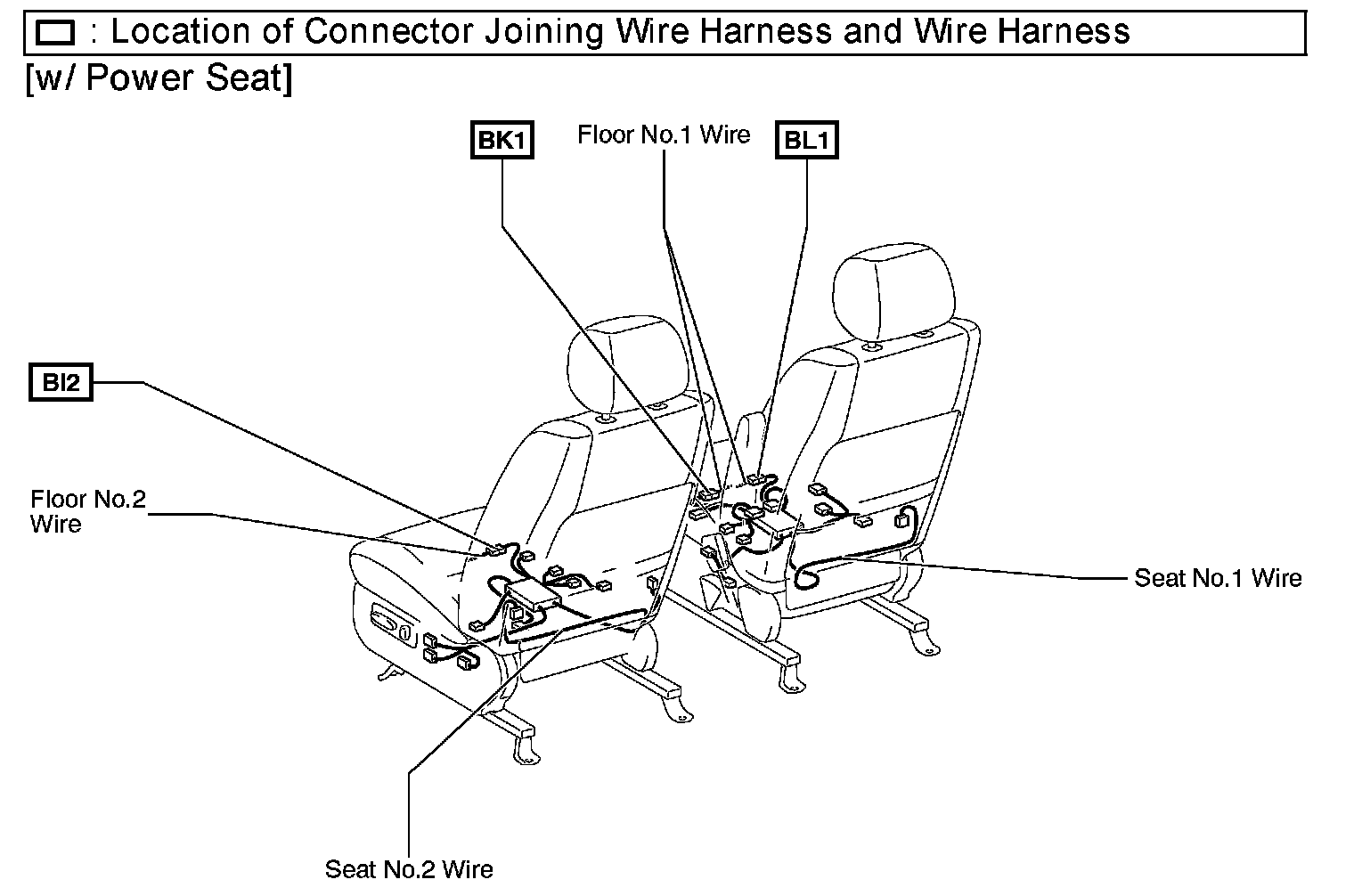

BI2 - BL1:

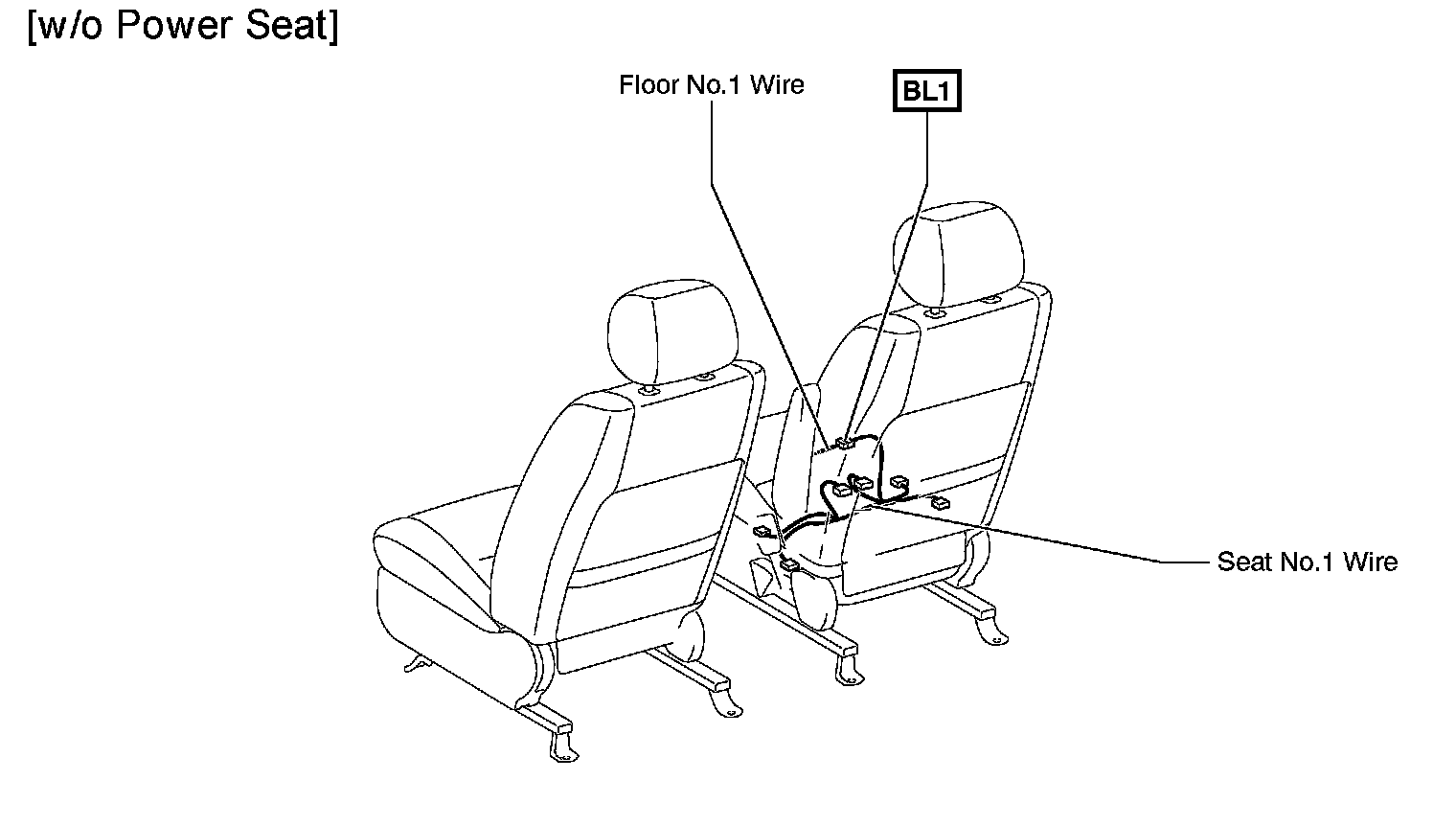

BL1:
