Home
>>
Toyota Truck
>>
2005
>>
Sequoia 2WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
Power and Ground Distribution: Locations

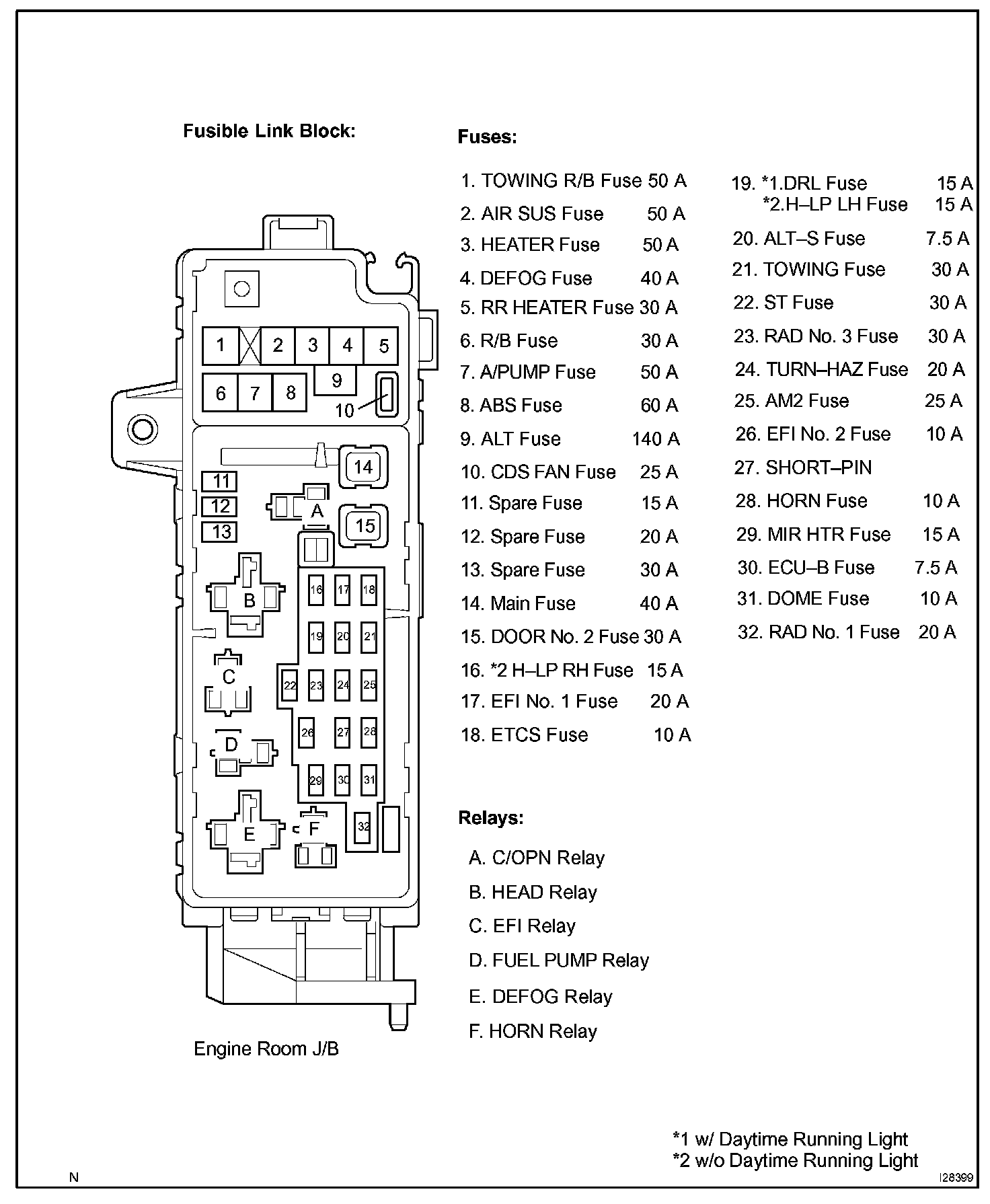

Power Source Part 1:

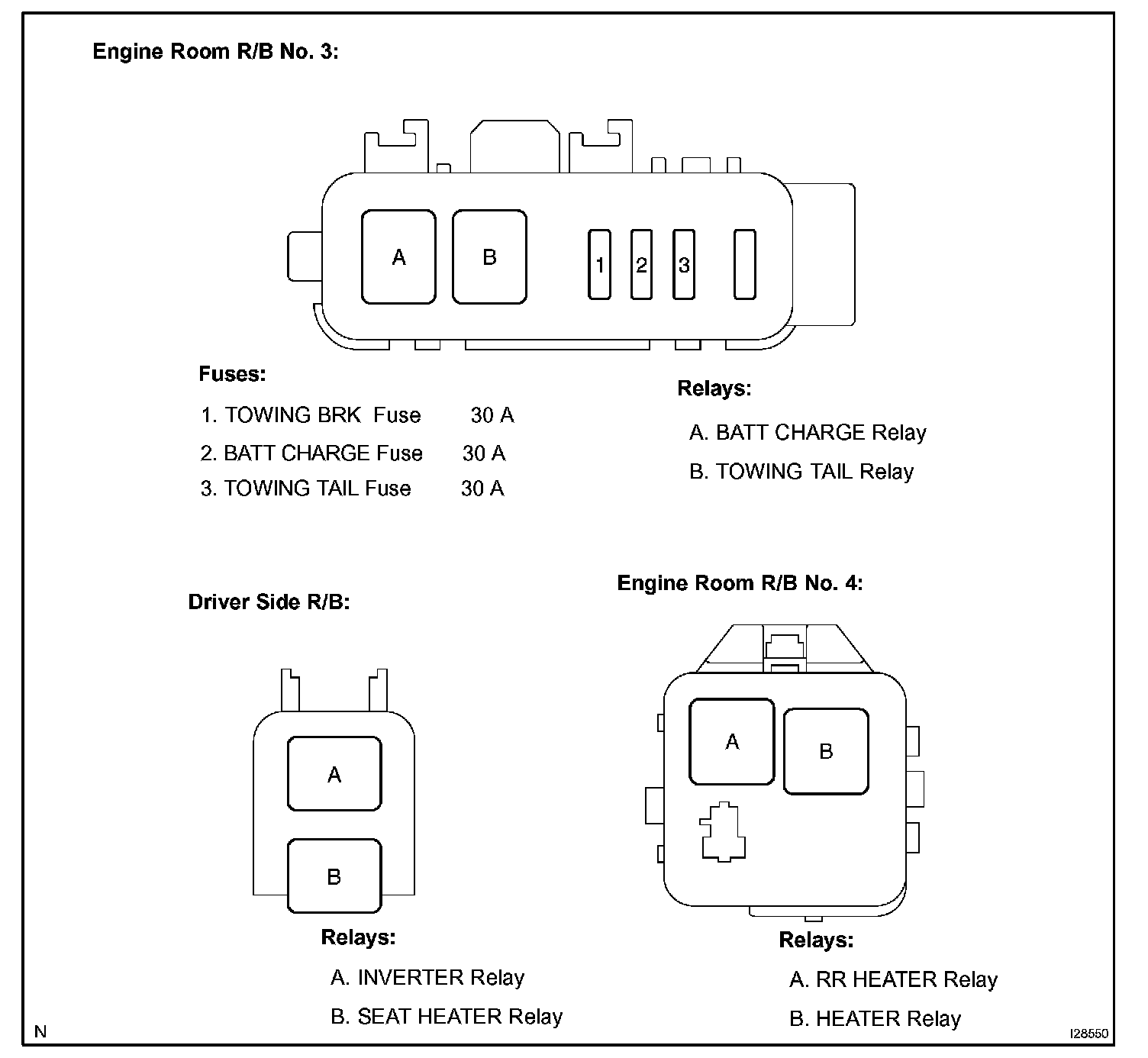

Power Source Part 2:

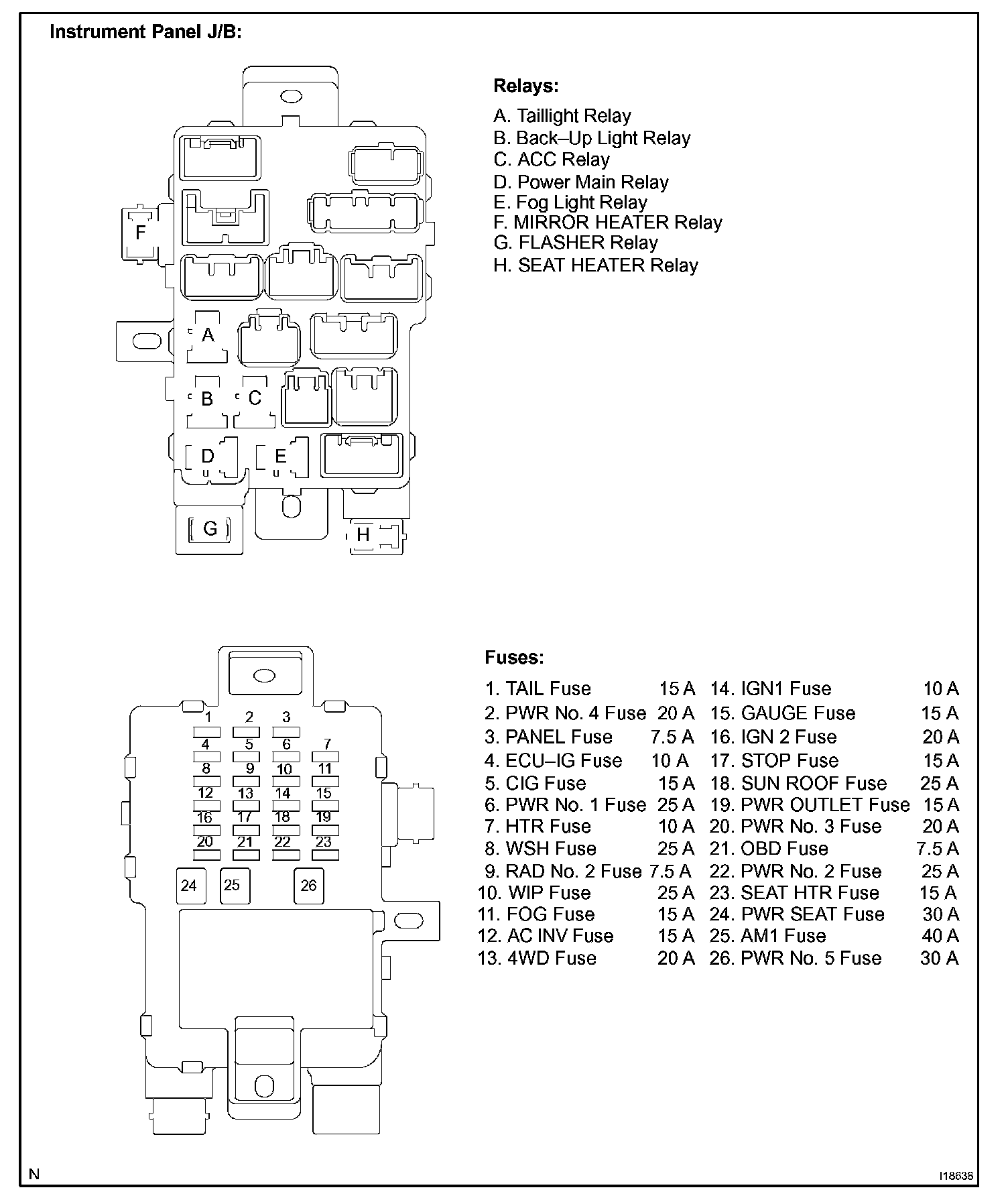

Power Source Part 3:

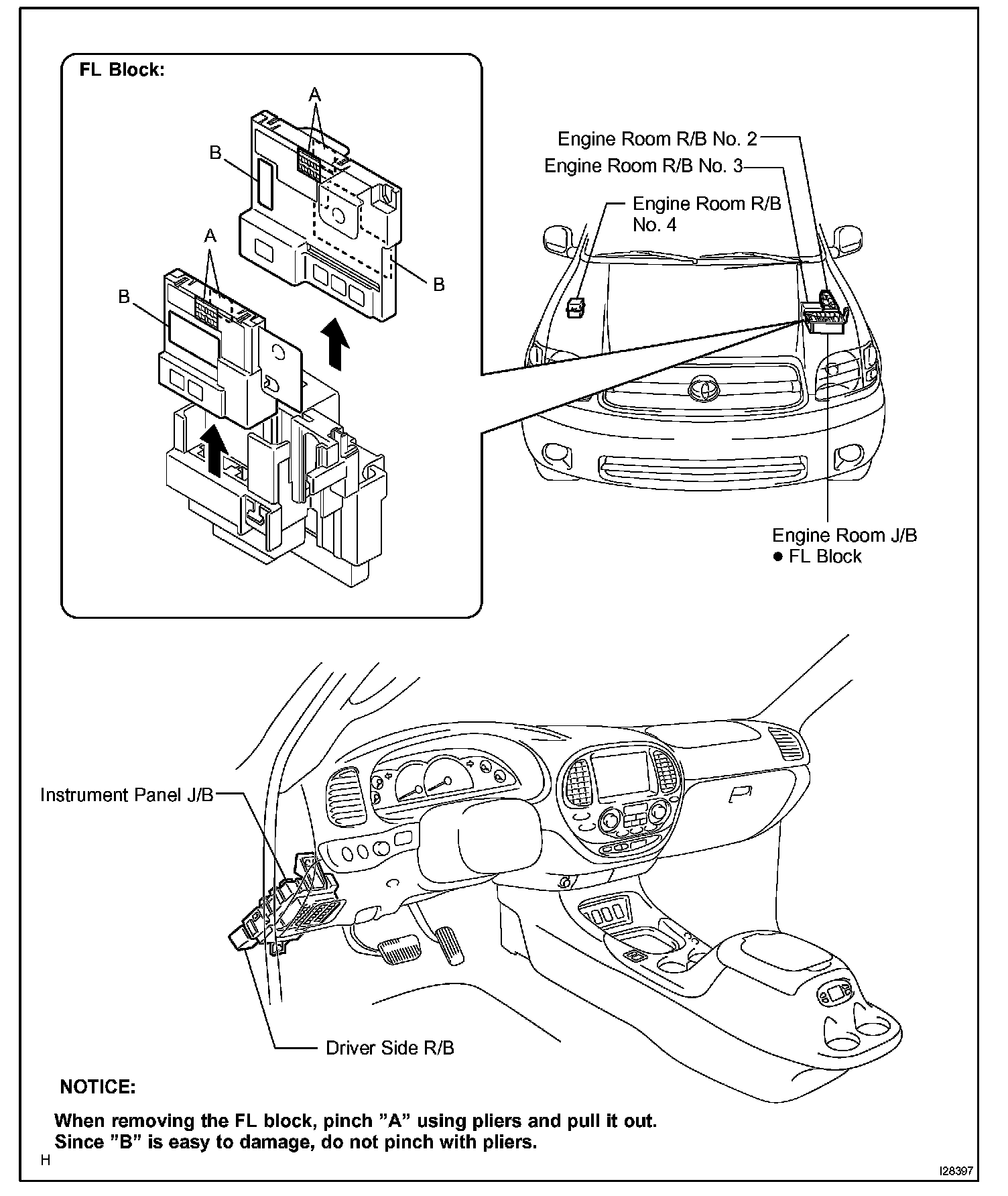

Power Source Part 4:

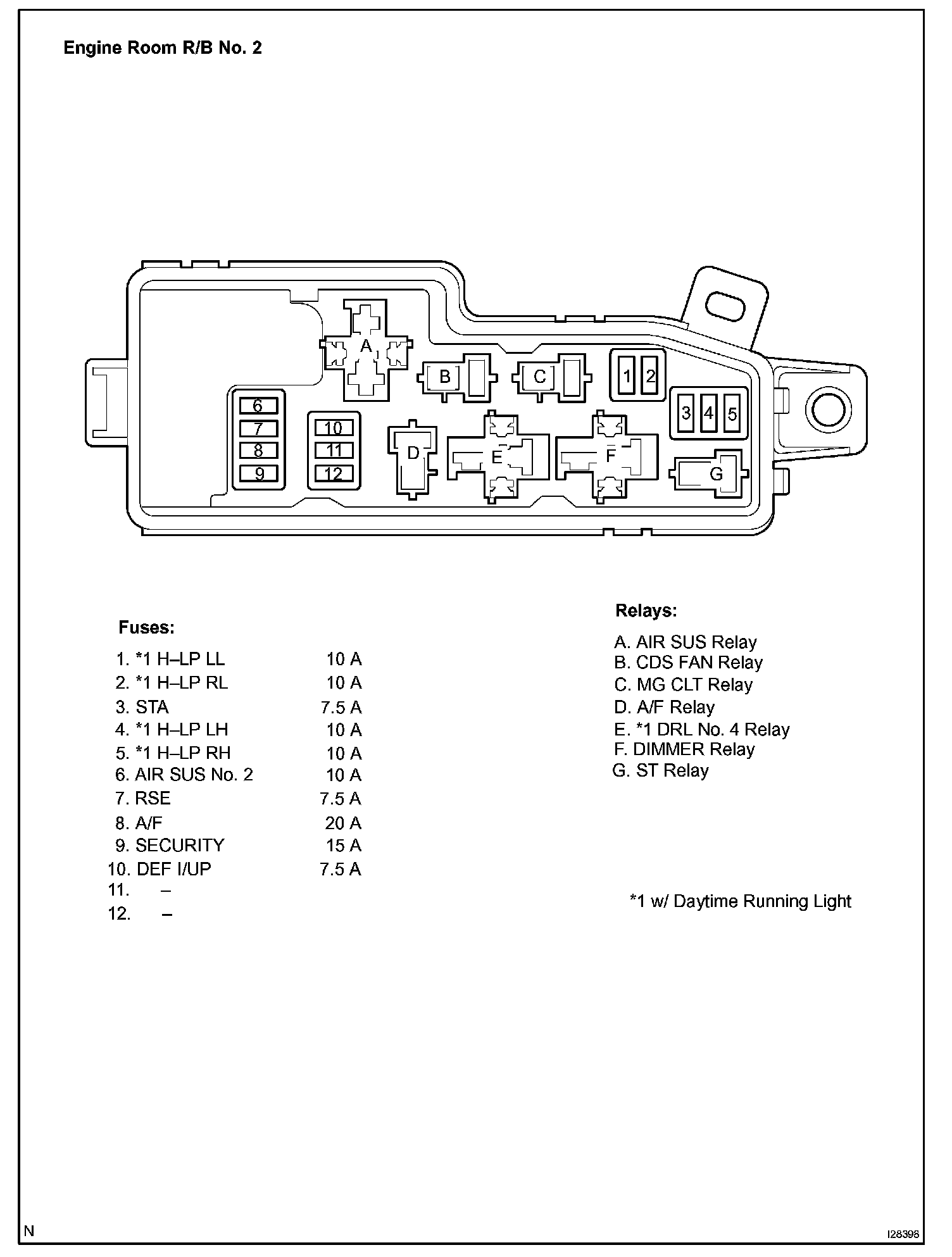

Power Source Part 5:
