Tire Pressure Module: Service and Repair

TIRE PRESSURE MONITOR ECU

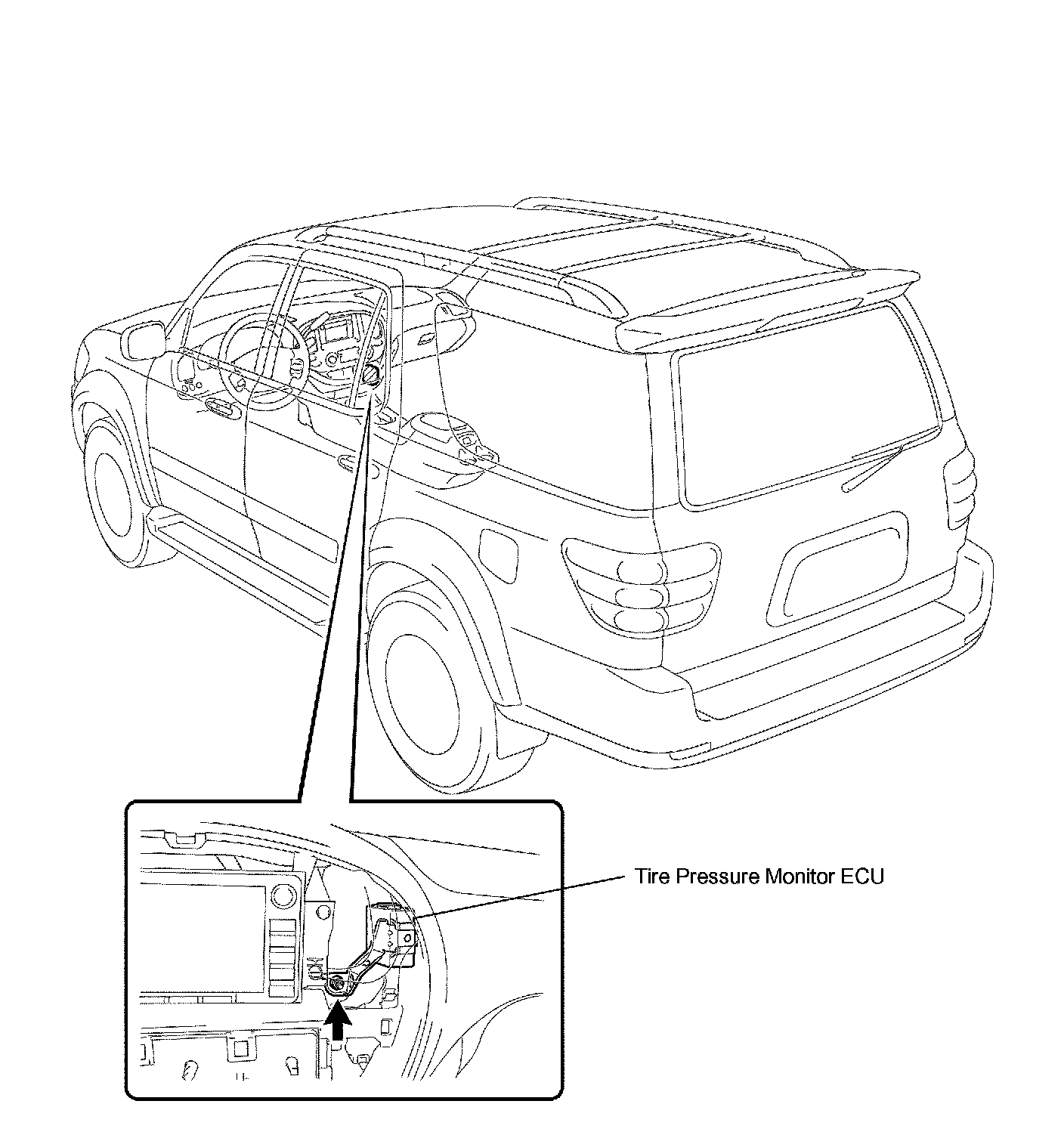

COMPONENTS

REPLACEMENT
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE INTEGRATION CONTROL PANEL
3. REMOVE GLOVE COMPARTMENT

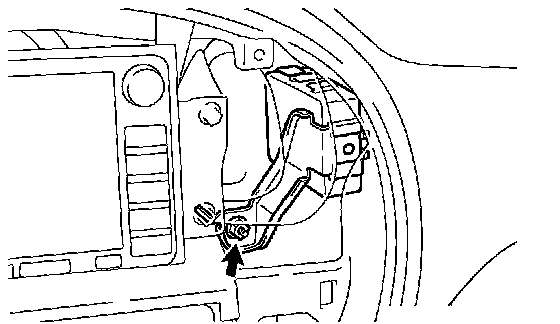

4. REMOVE TIRE PRESSURE MONITOR ECU
a. Disconnect the connector.
b. Remove the nut and tire pressure monitor ECU.

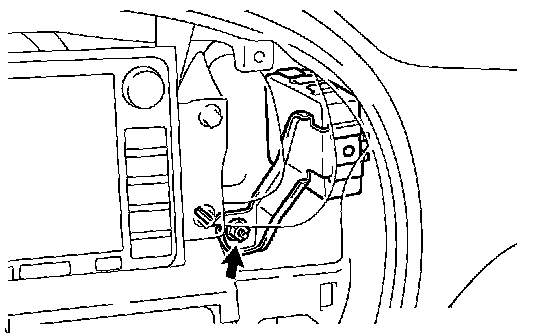

5. INSTALL TIRE PRESSURE MONITOR ECU
a. Install the tire pressure monitor ECU with the nut.
b. Connect the connector.
6. INSTALL GLOVE COMPARTMENT
7. INSTALL INTEGRATION CONTROL PANEL
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
9. REGISTRATION OF TRANSMITTED ID
10. INSPECT TIRE PRESSURE WARNING SYSTEM
SST 09843-18040
11. PERFORM INITIALIZATION
Some systems need initialization when disconnecting the cable from the negative battery terminal.
