Toyota Truck
>>
2005
>>
Sequoia 2WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
Splice Locations

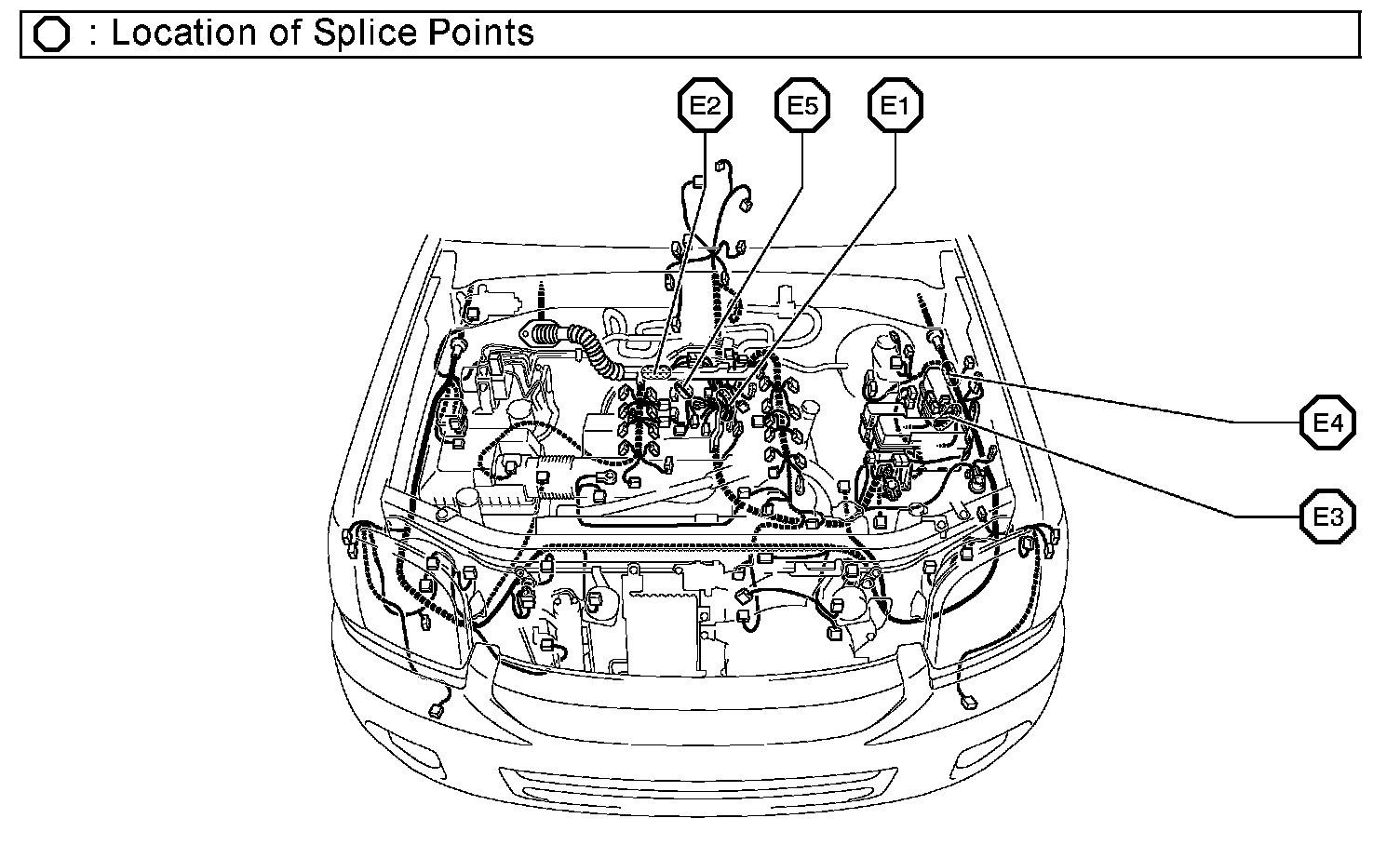

E1 - E5:

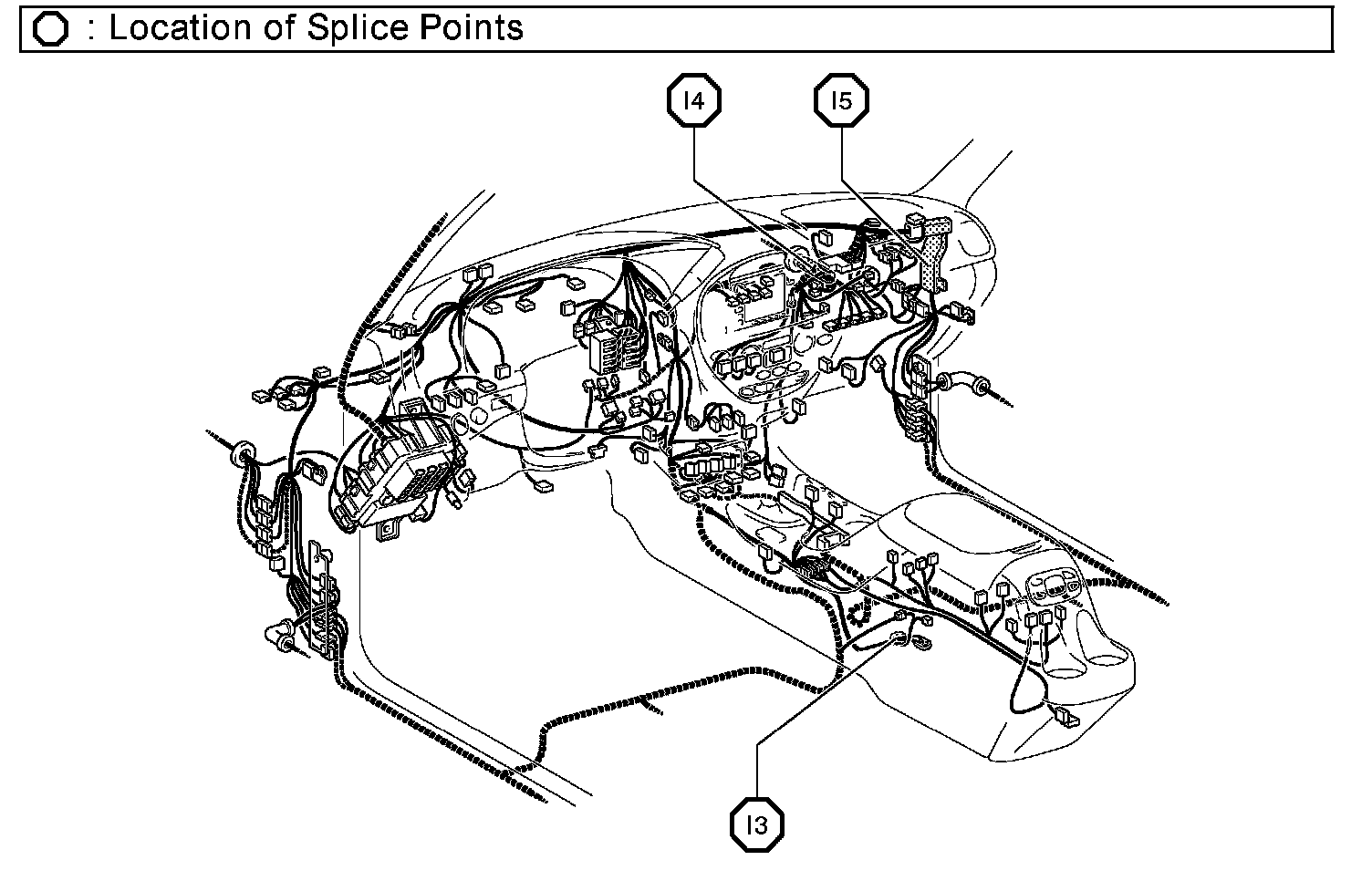

I3 - I5:

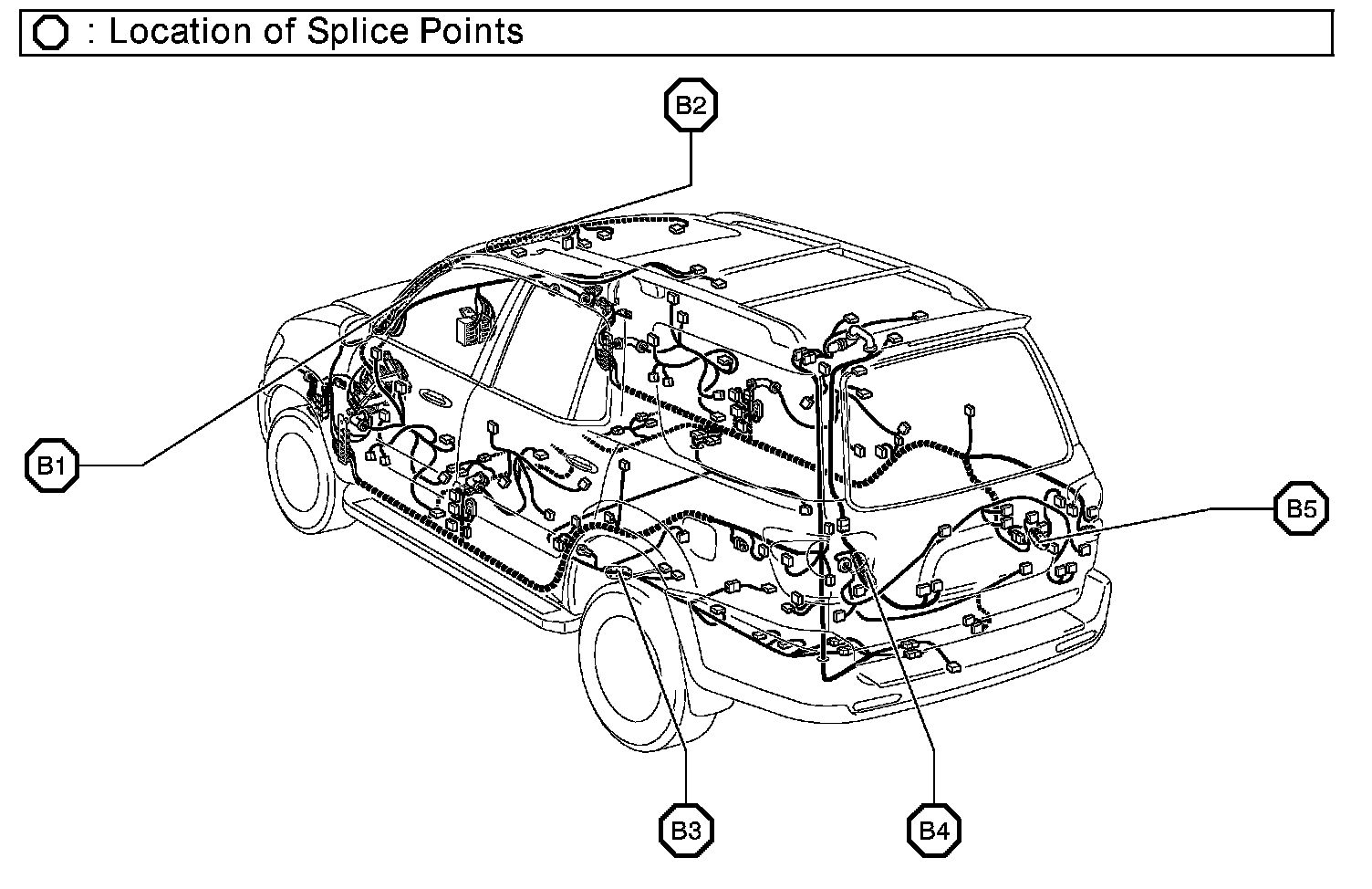

B1 - B5:
