Ambient Light Sensor: Testing and Inspection

ADJUST AUTOMATIC LIGHT CONTROL SENSOR








Connector connected:
INSPECT AUTOMATIC LIGHT CONTROL SENSOR CIRCUIT

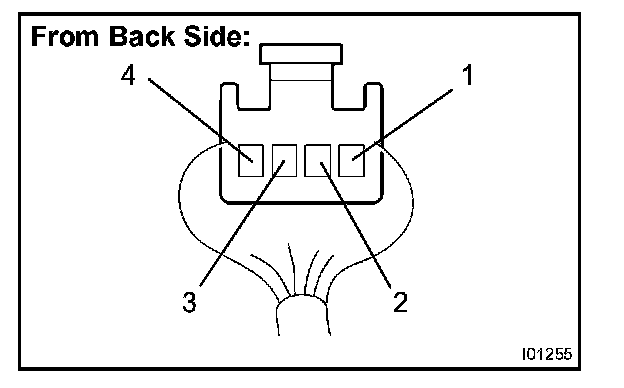

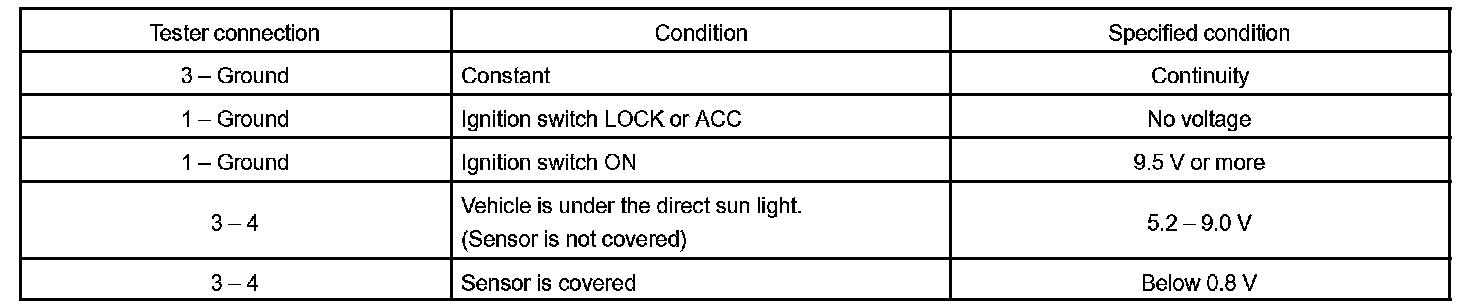

Connect the wire harness side connector to the sensor and inspect wire harness side connector from the back side, as shown in the table.

HINT:
- Ignition switch ON.
- Light control switch AUTO.

If circuit is as specified, try replacing the sensor with a new one. If the circuit is not as specified, inspect the circuit connected to other parts.







Connector disconnected:
INSPECT AUTOMATIC LIGHT CONTROL SENSOR CIRCUIT

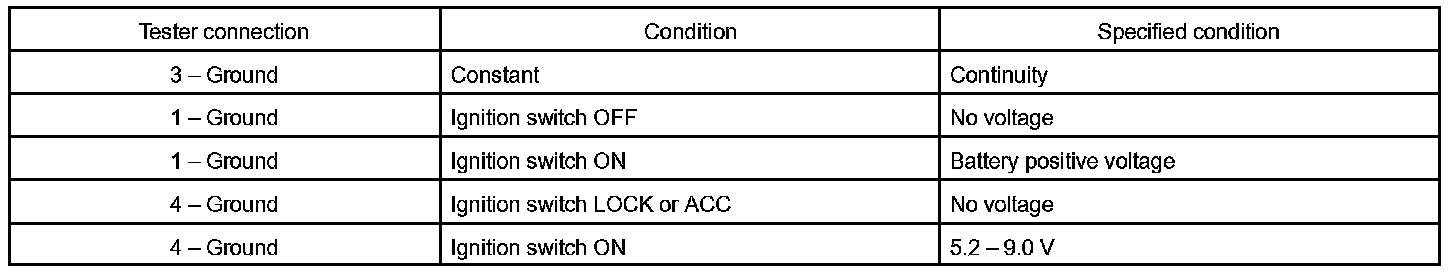

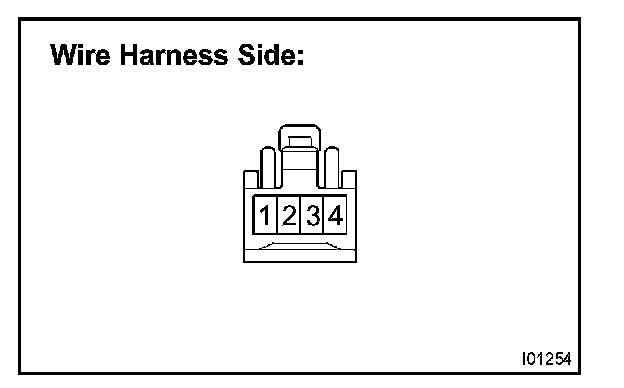

Disconnect the connector from the sensor and inspect the connector on the wire harness side, as shown in the table.
If the circuit is not as specified, inspect the circuit connected to other parts.
