Pinout Values and Diagnostic Parameters

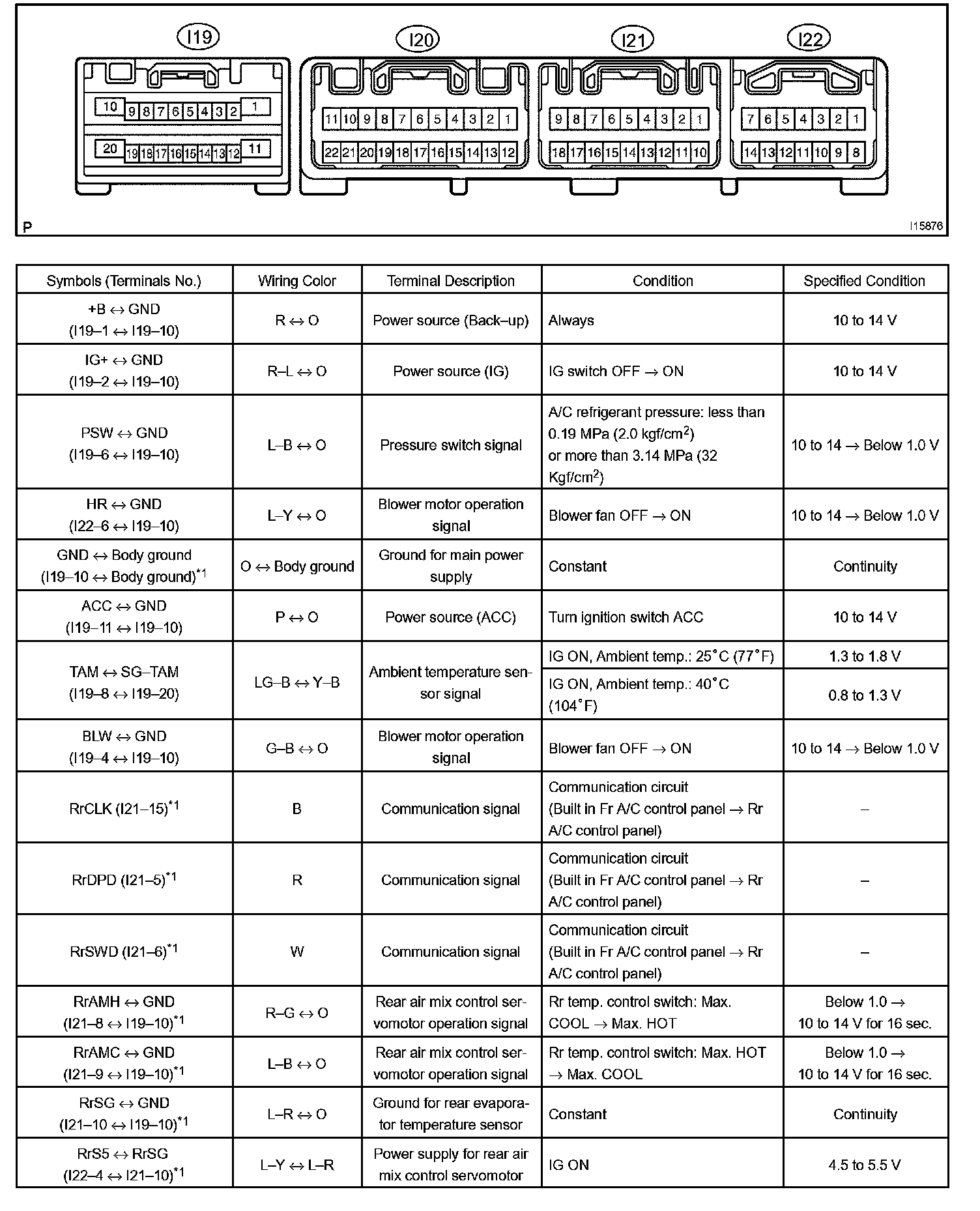

Terminals Of Control Module/Pinouts - Integration Control And Panel Part 1:

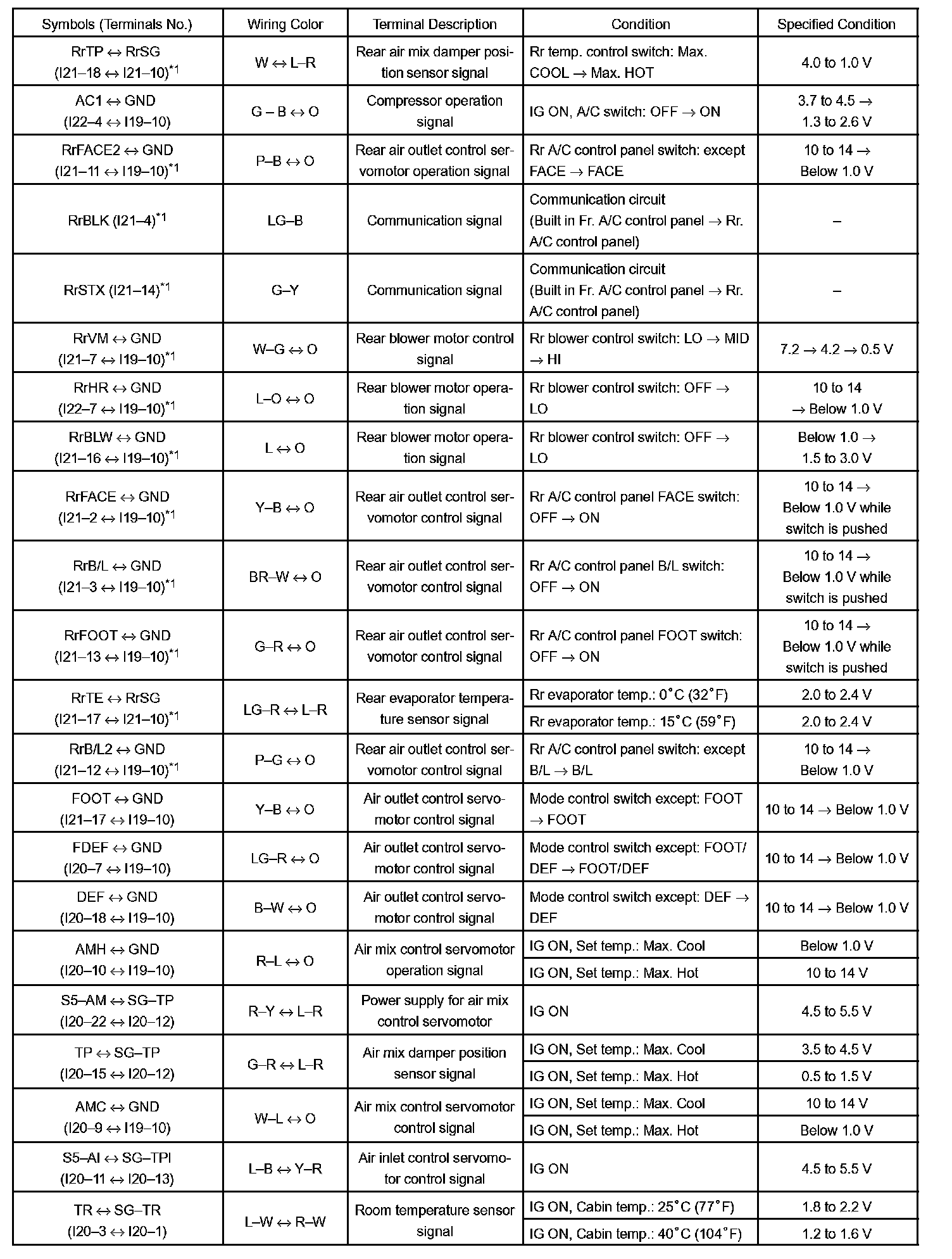

Terminals Of Control Module/Pinouts - Integration Control And Panel Part 2:

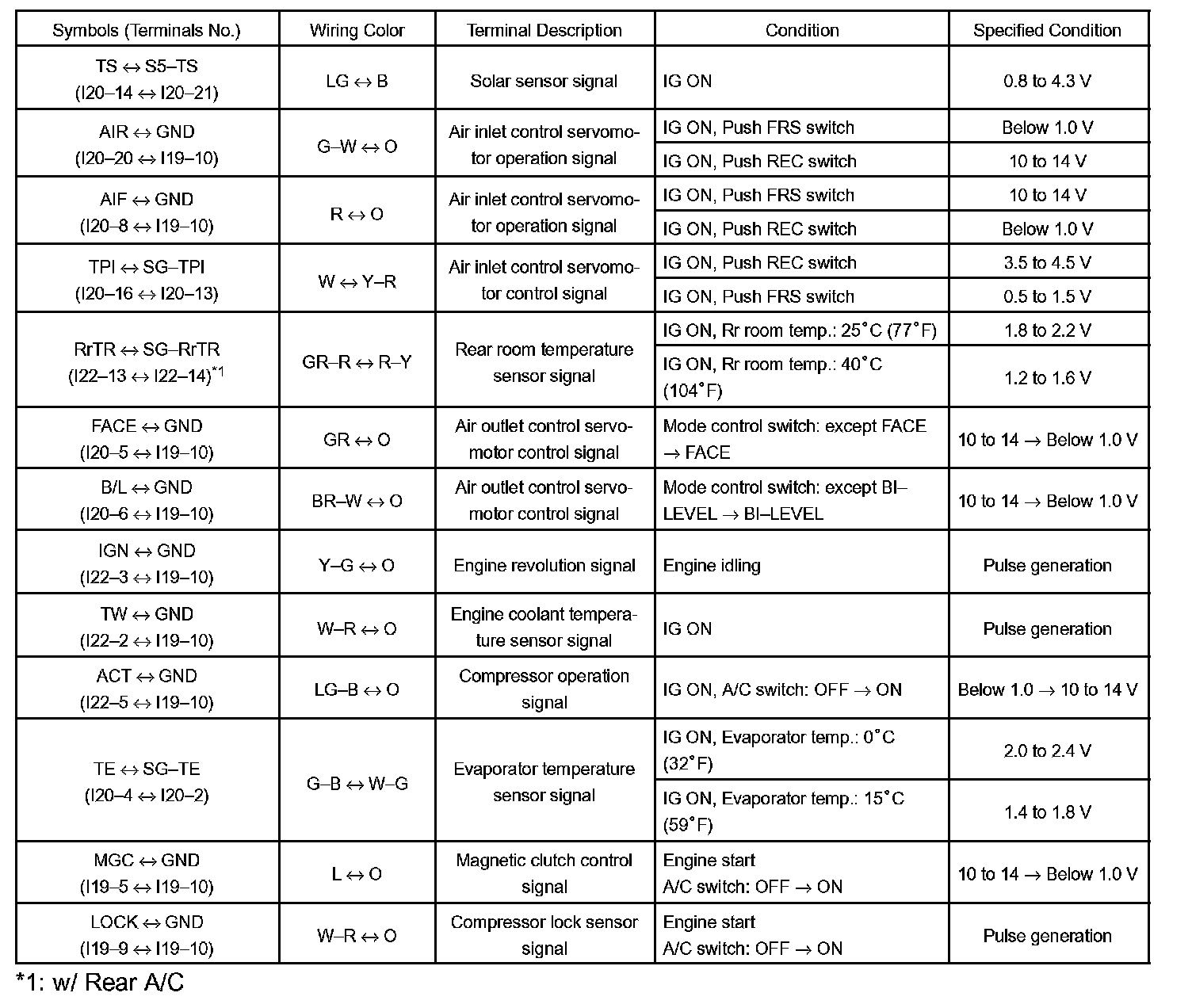

Terminals Of Control Module/Pinouts - Integration Control And Panel Part 3:
