Igniter Circuit
IGNITER CIRCUITCIRCUIT DESCRIPTION
The integration control and panel monitors the engine speed through signals sent from the igniter. It uses these signals and compressor speed signals to detect the compressor lock condition.

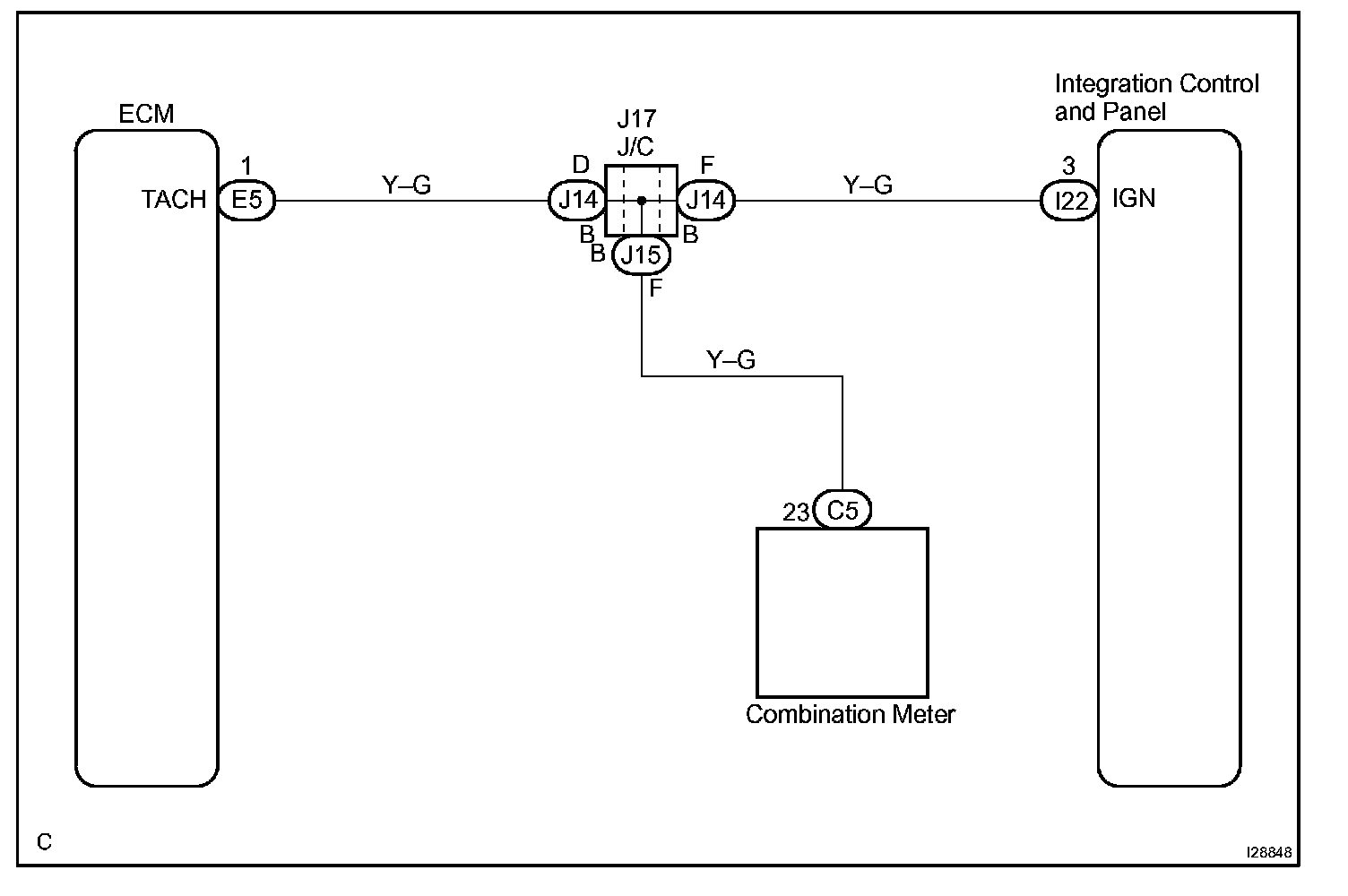

Wiring Diagram:
Step 1 - 3:

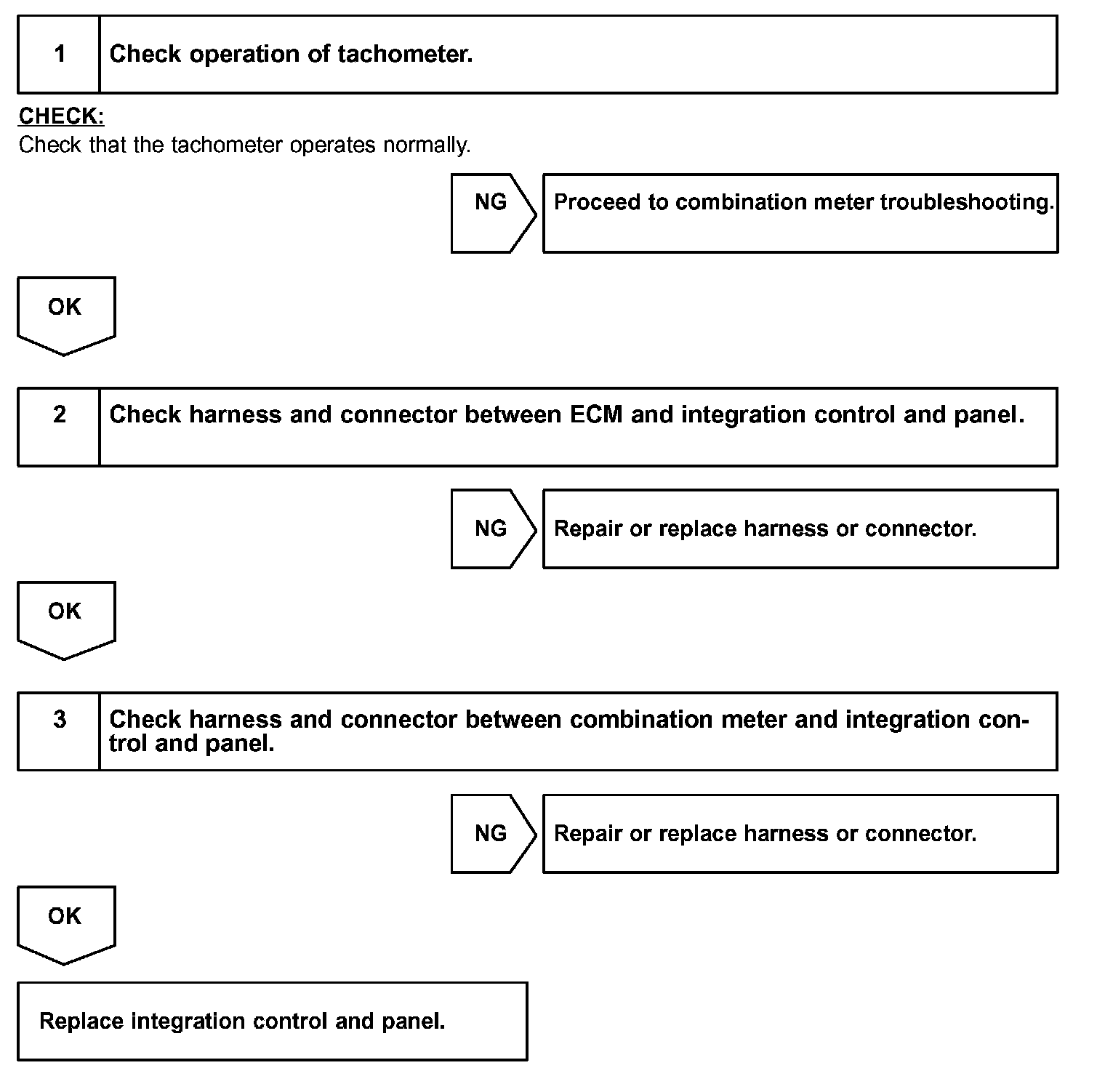

INSPECTION PROCEDURE
