IG Power Source Circuit
IG POWER SOURCE CIRCUITCIRCUIT DESCRIPTION
This is the power source for the integration control and panel and servomotors, etc.

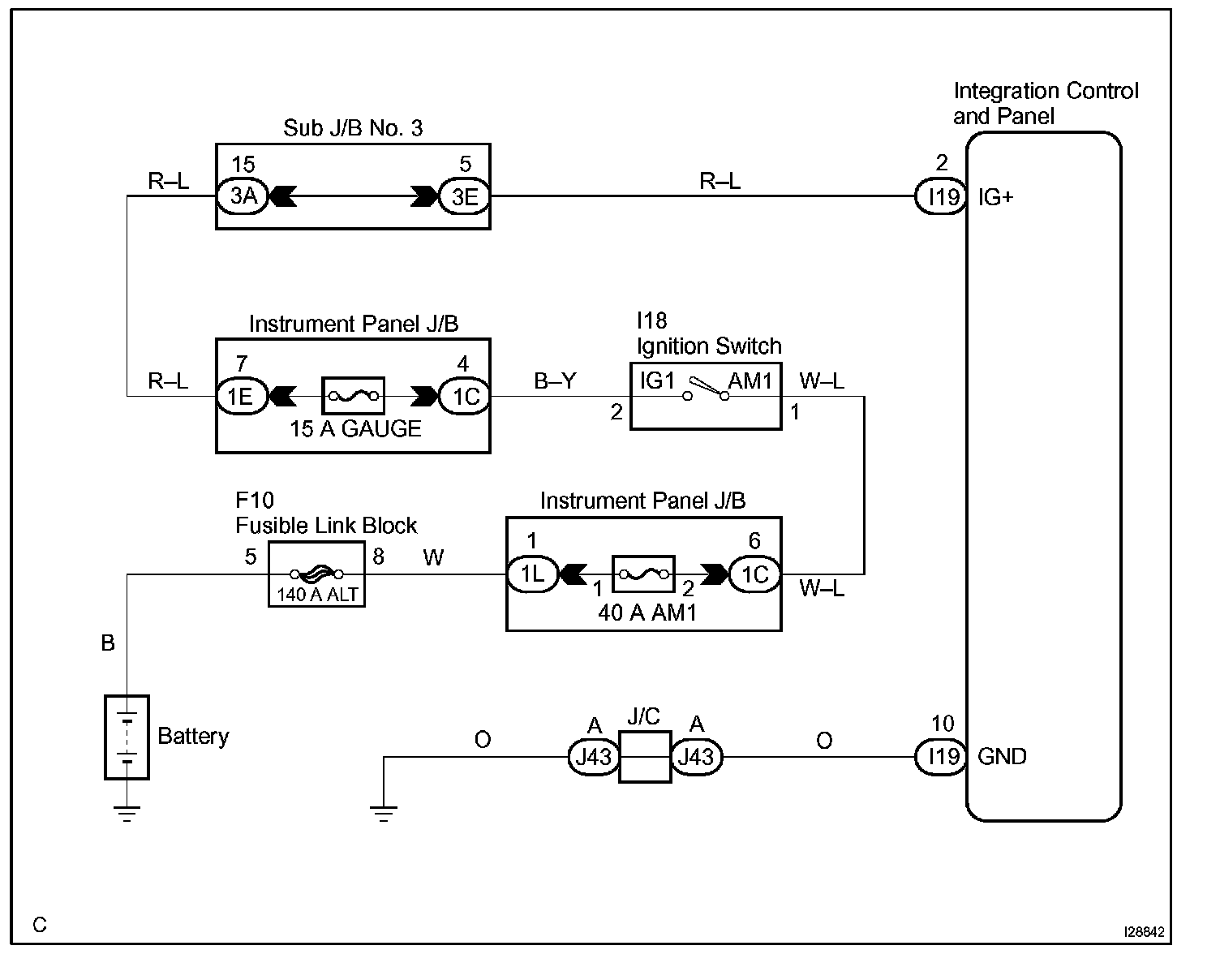

Wiring Diagram:

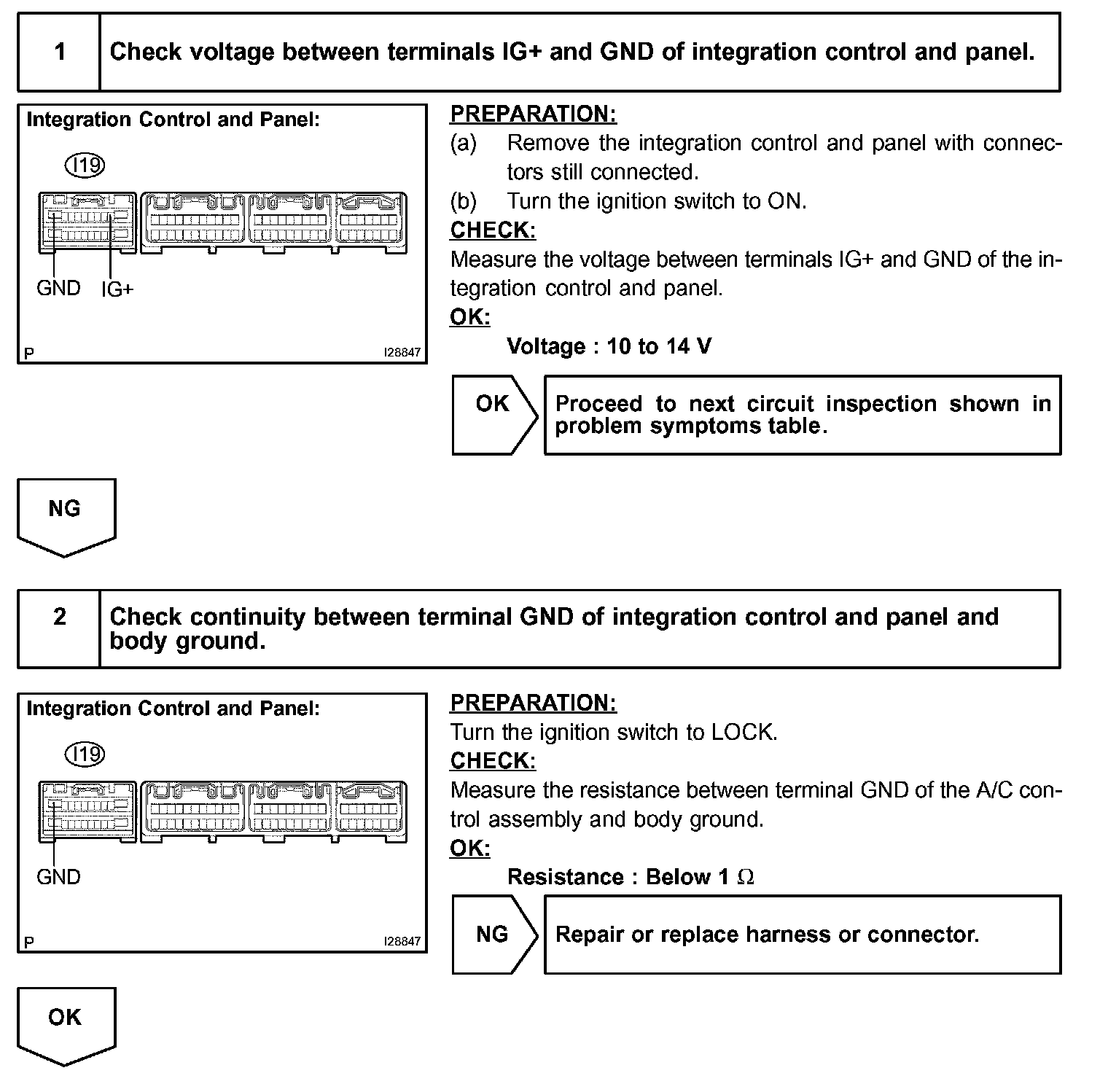

Step 1 - 2:

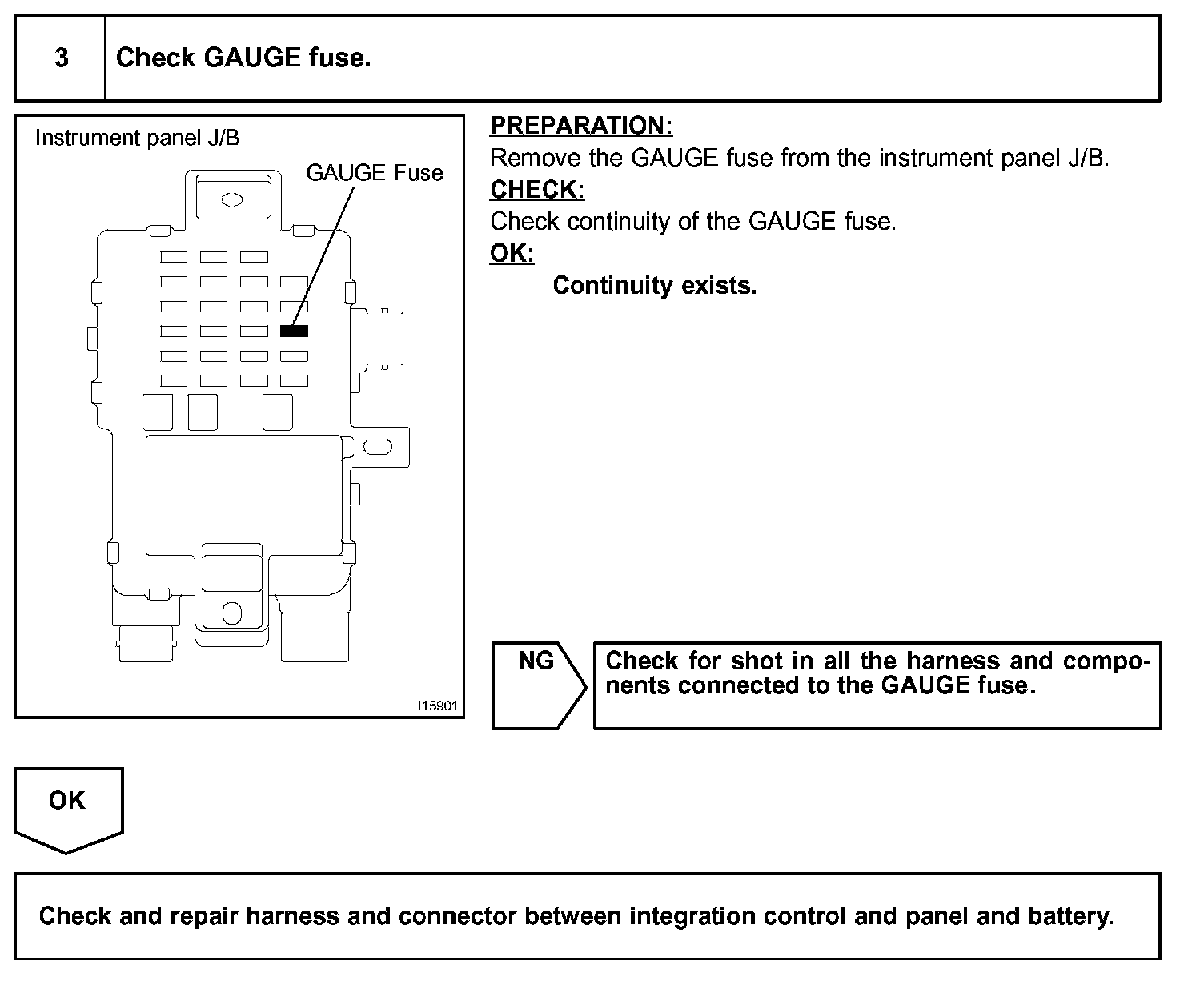

Step 3:
INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
This is the power source for the integration control and panel and servomotors, etc.
INSPECTION PROCEDURE
