Compressor Circuit
COMPRESSOR CIRCUITCIRCUIT DESCRIPTION
The integration control and panel outputs the magnetic clutch ON signal from terminal AC1 to the ECM. When the ECM receives this signal, it sends a signal from terminal ACT and switches the A/C magnetic clutch relay ON. This turns the A/C magnetic clutch on.

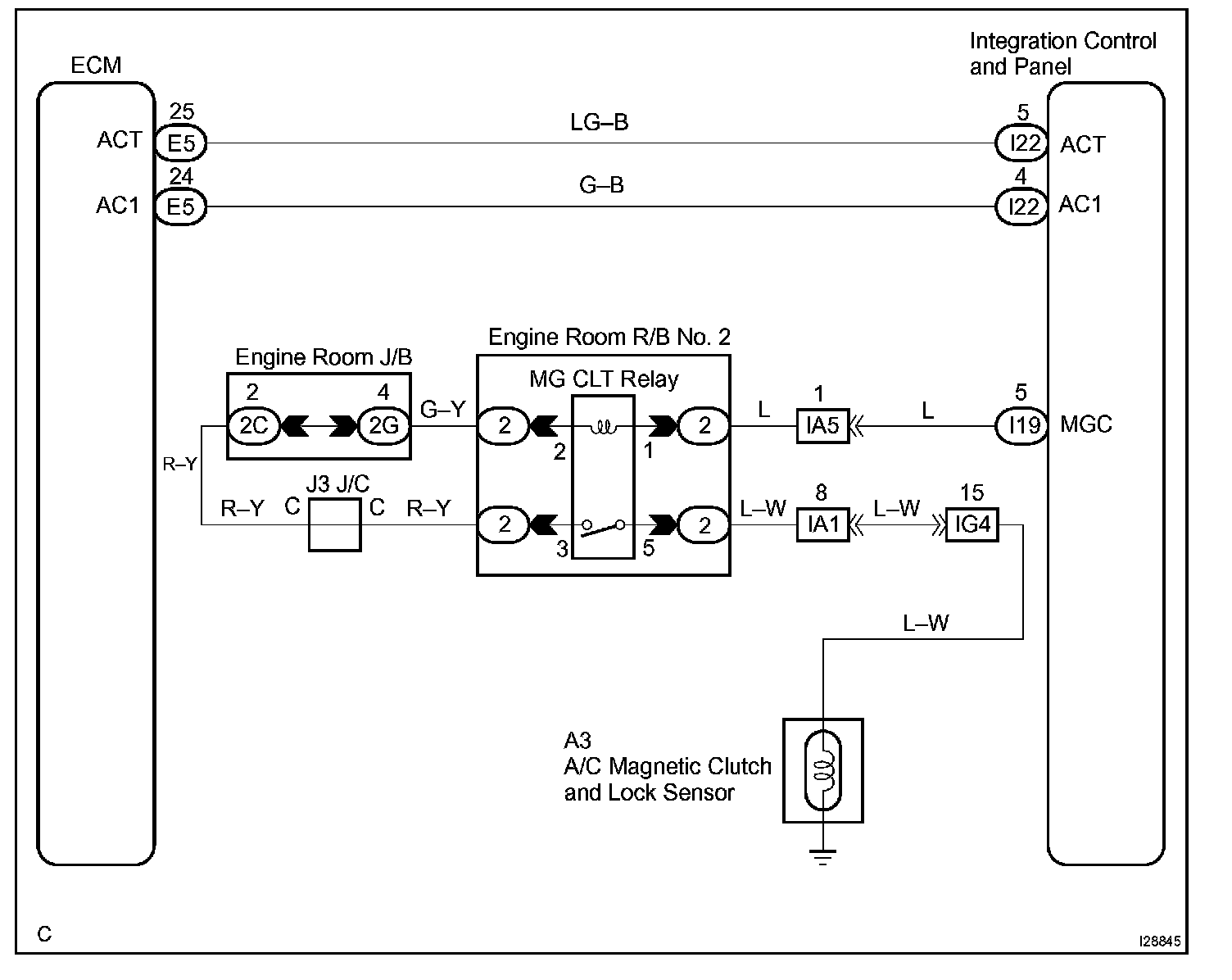

Wiring Diagram:

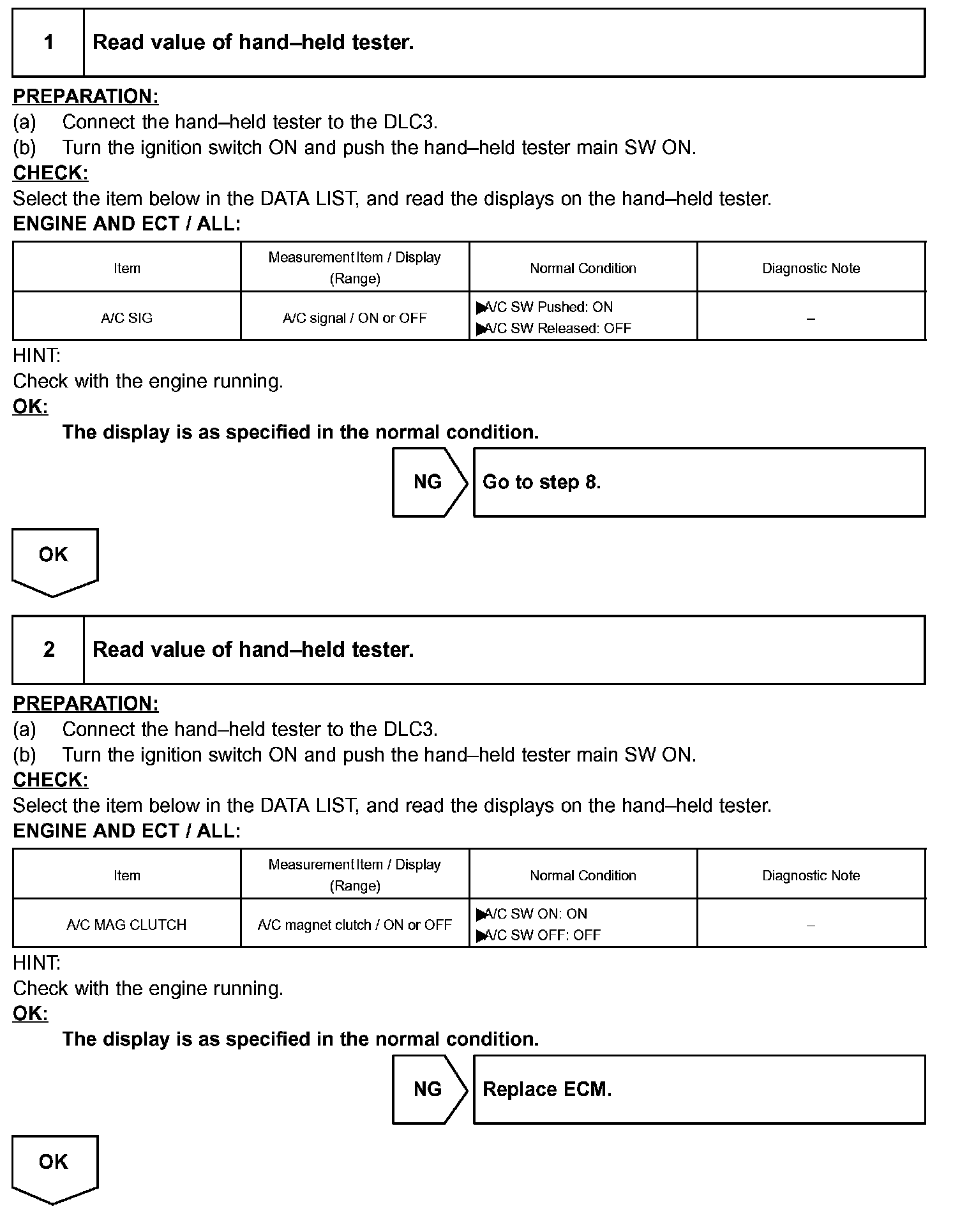

Step 1 - 2:

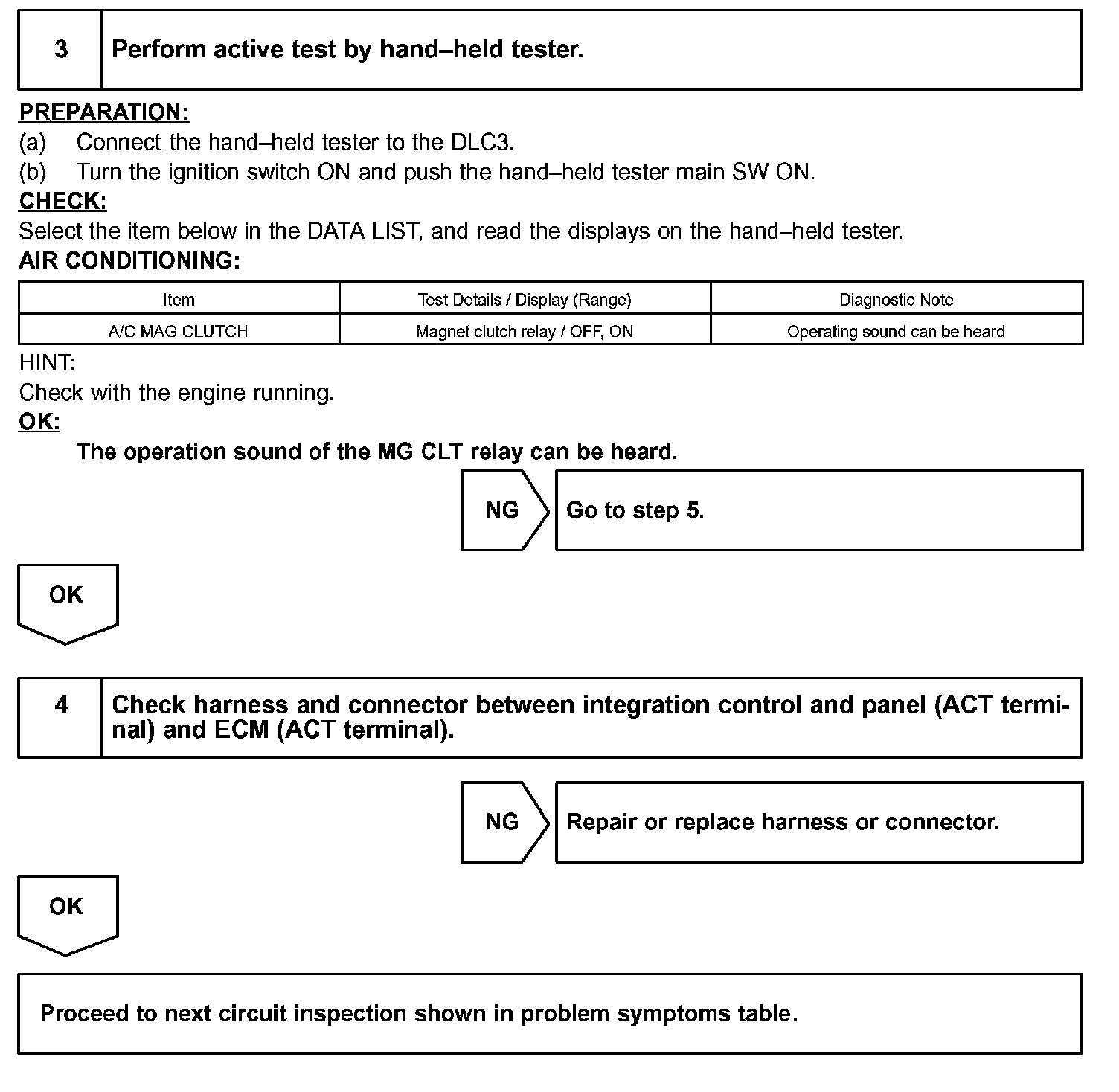

Step 3 - 4:

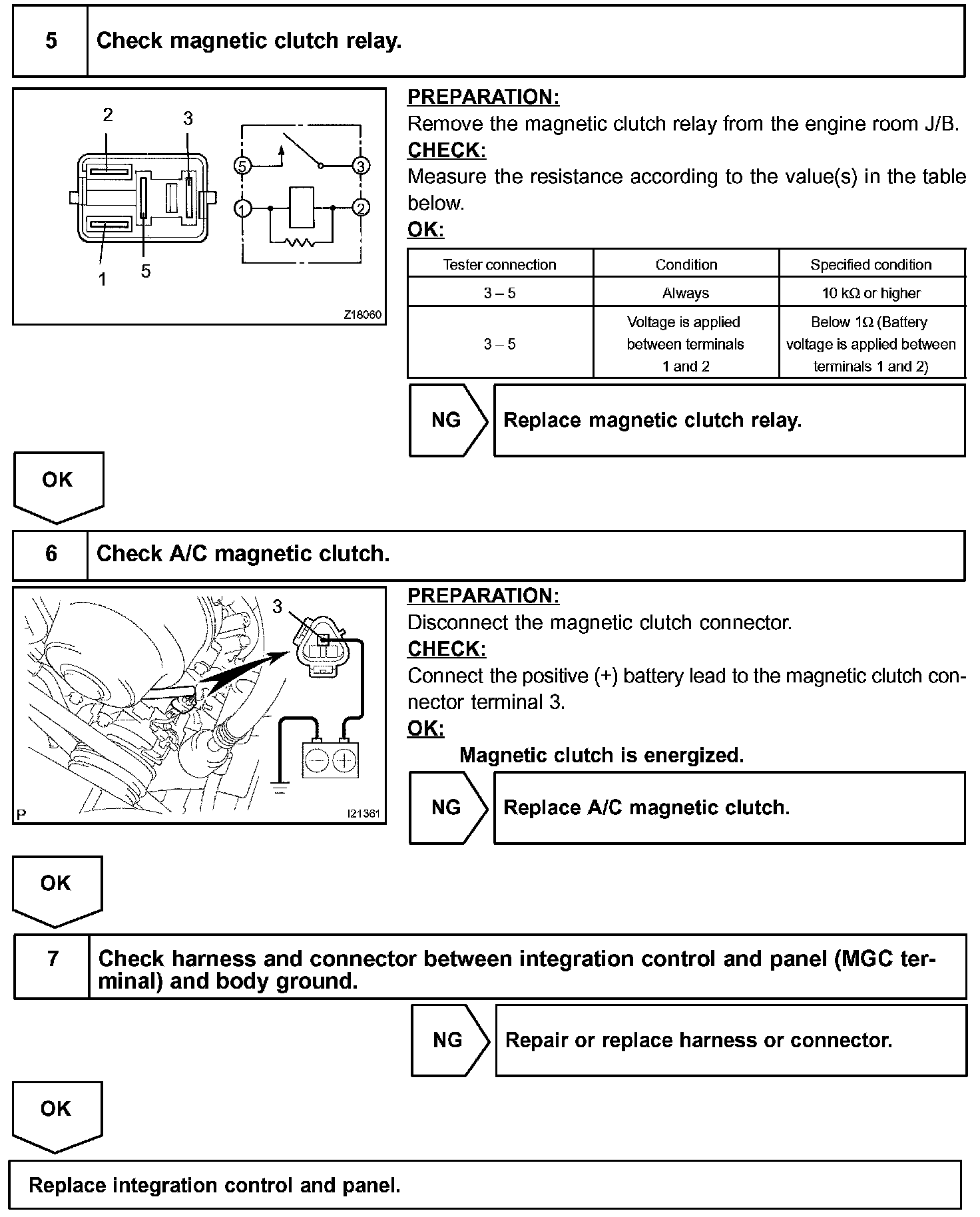

Step 5 - 7:

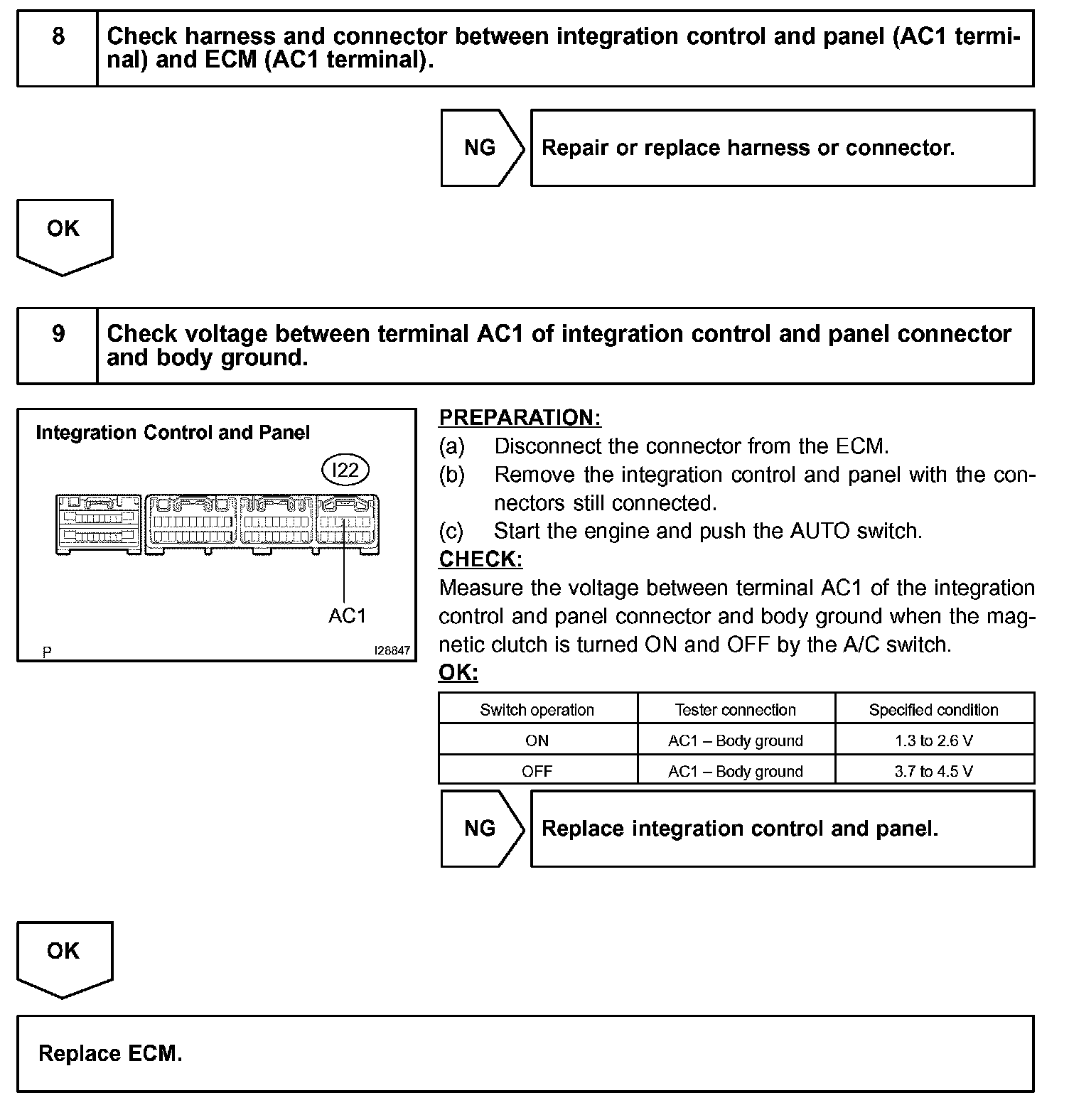

Step 8 - 9:
INSPECTION PROCEDURE
