Condenser HVAC: Service and Repair

Condenser:

CONDENSER

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM

HINT: At the time of installation, refer to the following:
- Evacuate air from the refrigeration system.
- Charge the system with refrigerant and inspect for leakage of refrigerant.

Specified amount:
Single A/C: 750 ±50 g (26.45 ±1.76 oz.)
Dual A/C: 1050 ±50 g (37.03 ±1.76 oz.)

2. REMOVE CONDENSER FAN

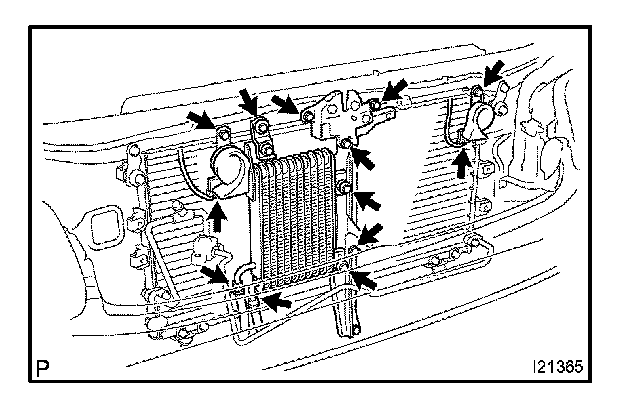

3. REMOVE A/T COIL COOLER
4. REMOVE HORN
5. REMOVE HOOD LOCK
6. REMOVE CENTER BRACE




7. REMOVE RECEIVER AND HOLDER

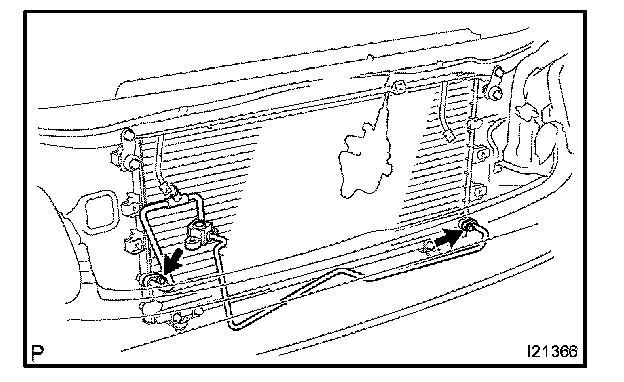

8. DISCONNECT LIQUID TUBE AND DISCHARGE HOSE
Remove the 2 bolts and disconnect both tube and hose.

Torque: 5.4 N.m (5.5 kgf.cm, 48 in.lbf)

NOTE: Cap the openings immediately to keep moisture or dirt out of the system.

HINT: At the time of installation, refer to the following:
Lubricate 2 new O-rings with compressor oil and install them to the tubes.

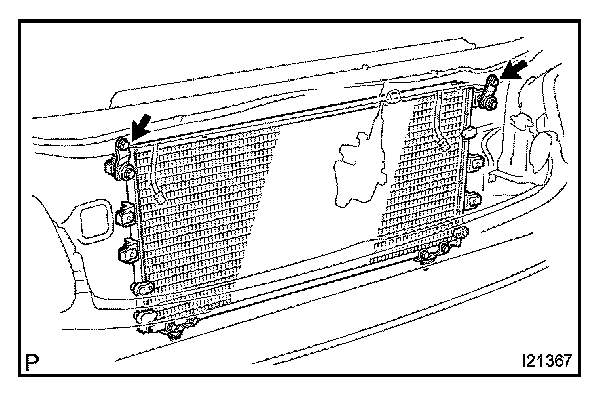

9. REMOVE CONDENSER
a. Remove the 2 bolts.
b. Pull the condenser forward and then upward.

HINT: At the time of installation, refer to the following:
If the condenser is replaced, add compressor oil to the compressor.

Add 40 to 50 cc (1.4 to 1.7 fl.oz.)
Compressor oil: ND-OIL 8 or equivalent

INSTALLATION
Installation is in the reverse order of removal
