Removal And Installation
Condenser FanREMOVAL

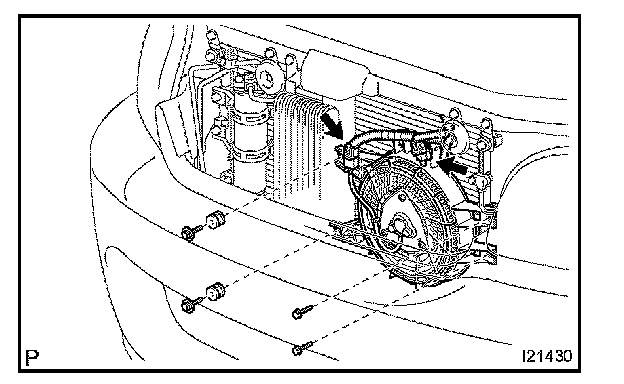

REMOVE CONDENSER FAN
a. Disconnect the 2 connectors.
b. Disconnect the wire harness clamp.
c. Remove the ambient temperature sensor.
d. Remove the 4 bolts and condenser fan with the fan shroud.
INSTALLATION
Installation is in the reverse order of removal
