Disassembly And Reassembly

DISASSEMBLY

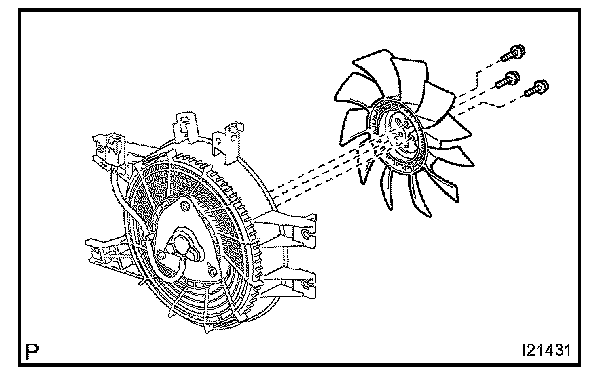

1. REMOVE FAN
Remove the 3 bolts and fan.

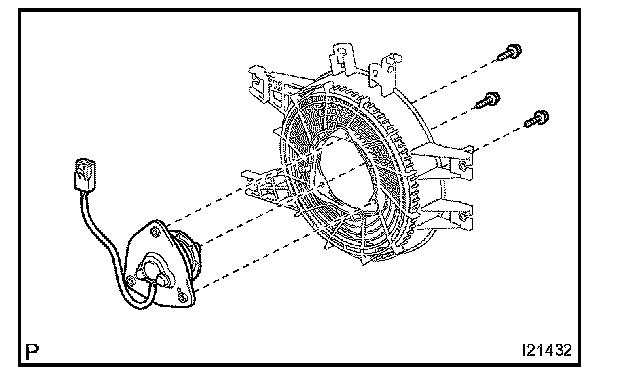

2. REMOVE FAN MOTOR FROM FAN SHROUD
Remove the 3 screws and fan motor.

REASSEMBLY
Reassembly is in the reverse order of disassembly
