Compressor HVAC: Testing and Inspection

WARNING FOR A/C COMPRESSOR LOCK

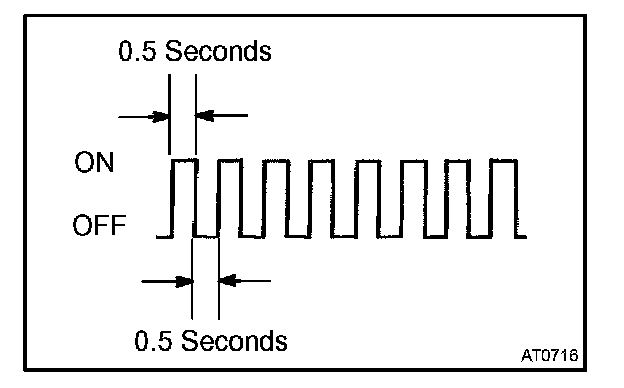

If compressor lock occurs during A/C operation, the A/C switch indicator on the A/C control assembly starts blinking.

When this occurs, check for compressor lock (DTC 22) using diagnosis trouble code check then proceed to inspect the circuit or the component.
