Removal and Installation

Blower Unit:

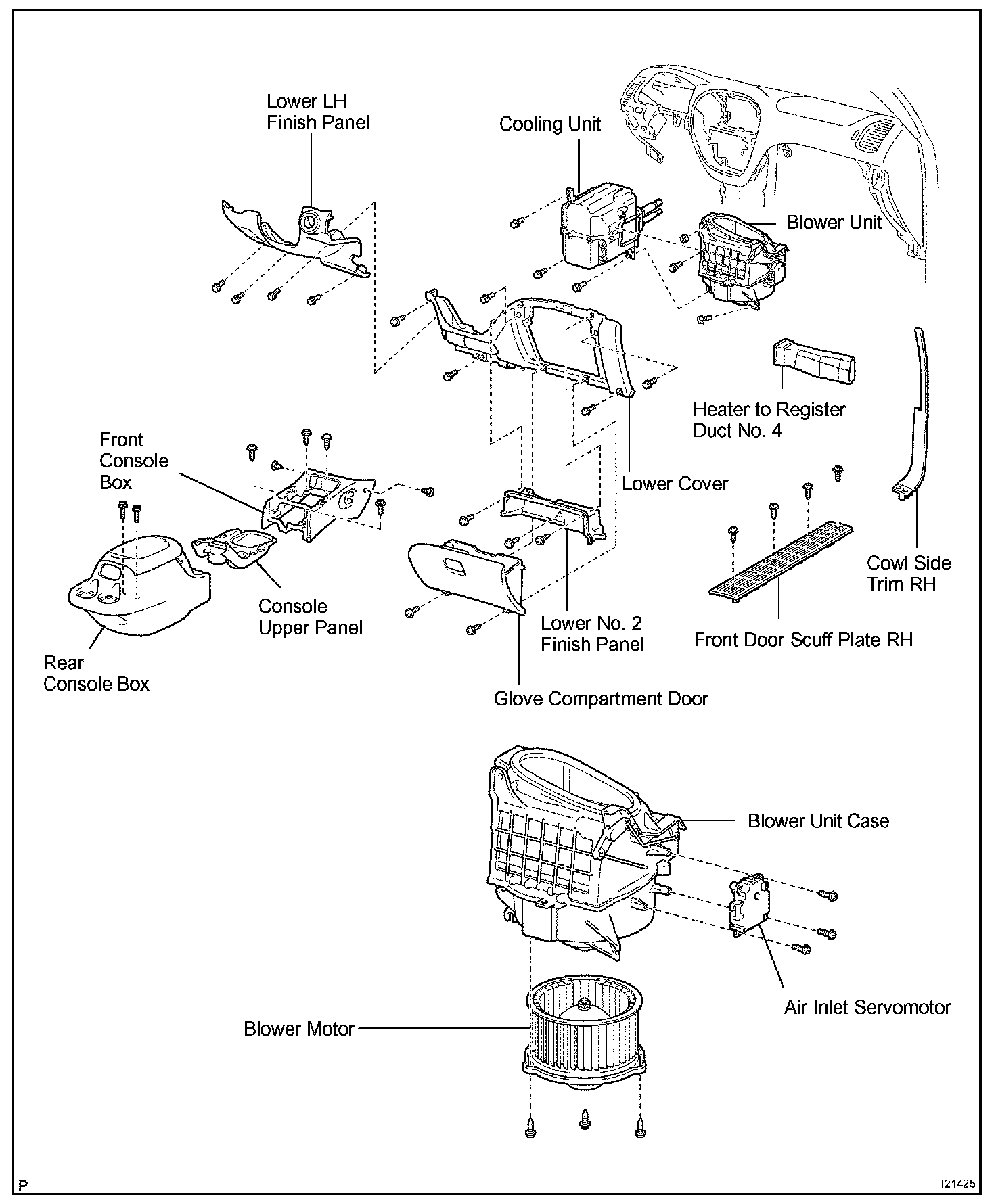

BLOWER UNIT

REMOVAL

1. REMOVE CONSOLE UPPER PANEL
2. REMOVE REAR CONSOLE BOX
3. REMOVE FRONT CONSOLE BOX
4. REMOVE LOWER LH FINISH PANEL
5. REMOVE GLOVE COMPARTMENT DOOR
6. REMOVE LOWER NO. 2 FINISH PANEL
7. REMOVE LOWER COVER
8. REMOVE COOLING UNIT

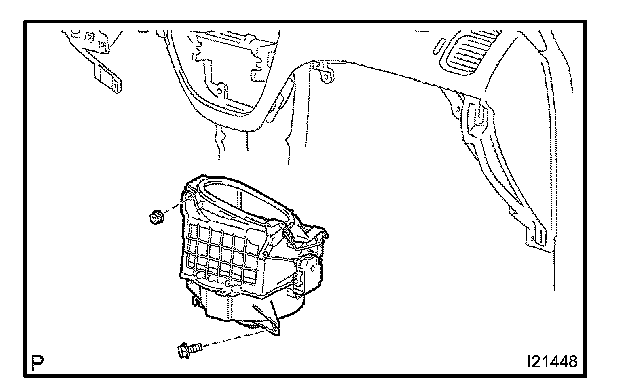

9. REMOVE BLOWER UNIT
a. Disconnect the connector from the blower motor.
b. Disconnect the connector from the air inlet servomotor.
c. Remove the nut, bolt and blower unit.

INSTALLATION
Installation is in the reverse order of removal
