Disassembly and Reassembly
DISASSEMBLY

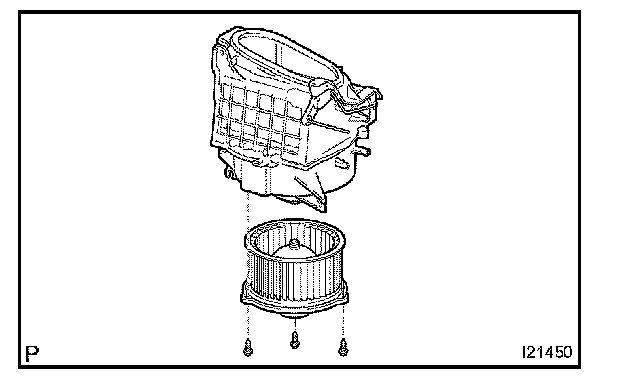

1. REMOVE BLOWER MOTOR
Remove the 3 screws and blower motor.

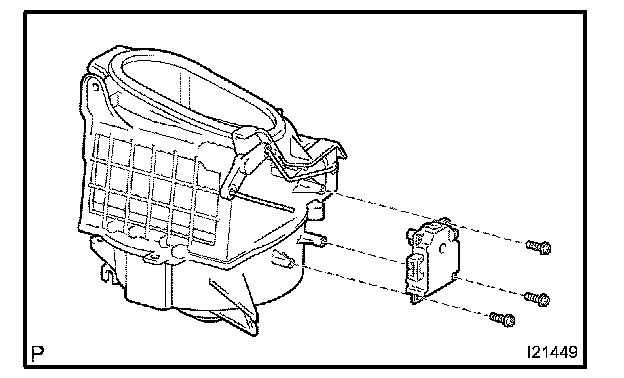

2. REMOVE AIR INLET SERVOMOTOR
Remove the 3 screws and servomotor.
REASSEMBLY
Reassembly is in the reverse order of disassembly
1. REMOVE BLOWER MOTOR
Remove the 3 screws and blower motor.
2. REMOVE AIR INLET SERVOMOTOR
Remove the 3 screws and servomotor.
REASSEMBLY
Reassembly is in the reverse order of disassembly
