Sequoia 2WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Variable Induction System
Variable Induction System

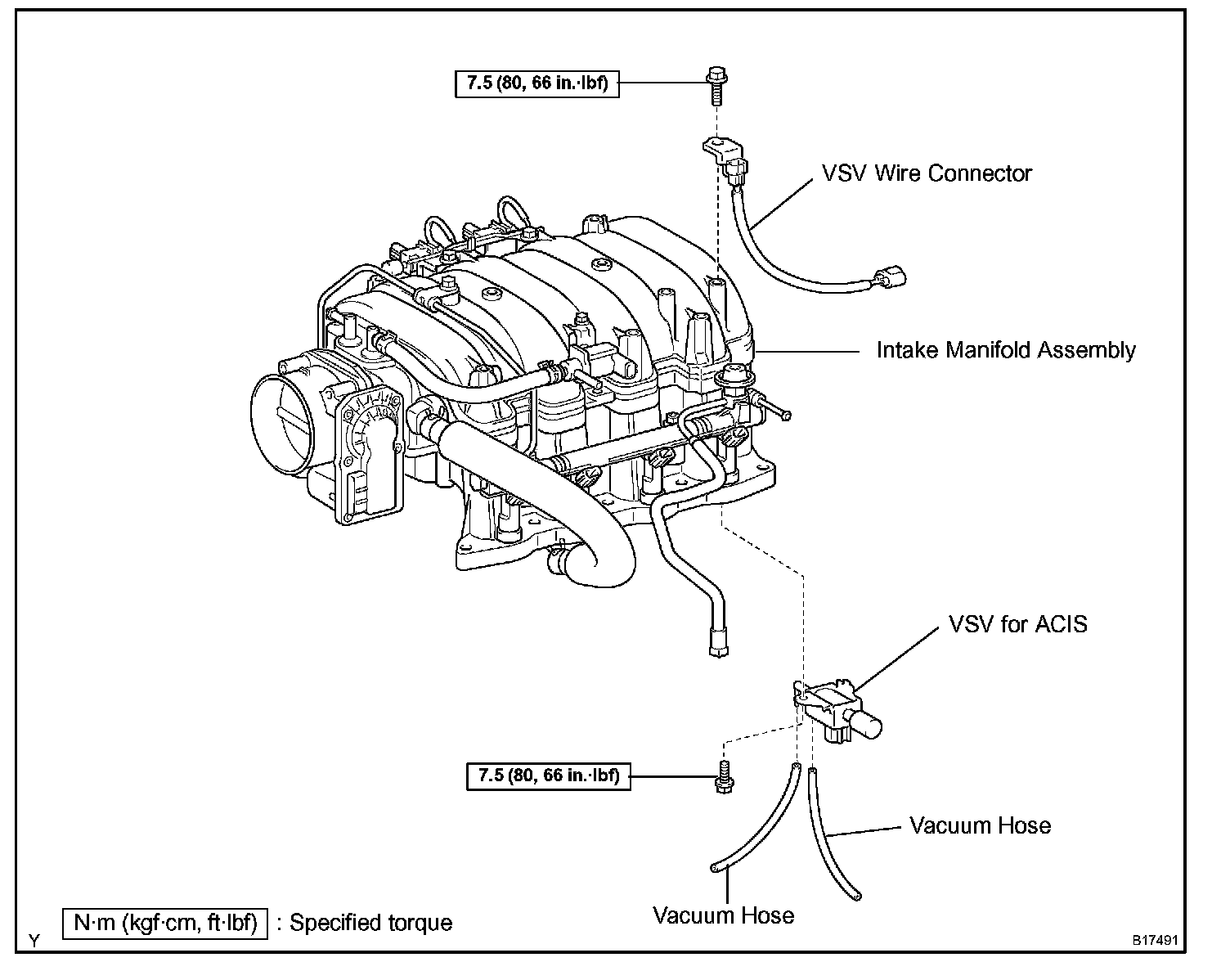

Acoustic Control Induction System (ACIS) Part 1:
Acoustic Control Induction System (ACIS) Part 2:
Acoustic Control Induction System (ACIS) Part 3:
