Toyota Truck
>>
2005
>>
Sequoia 2WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>

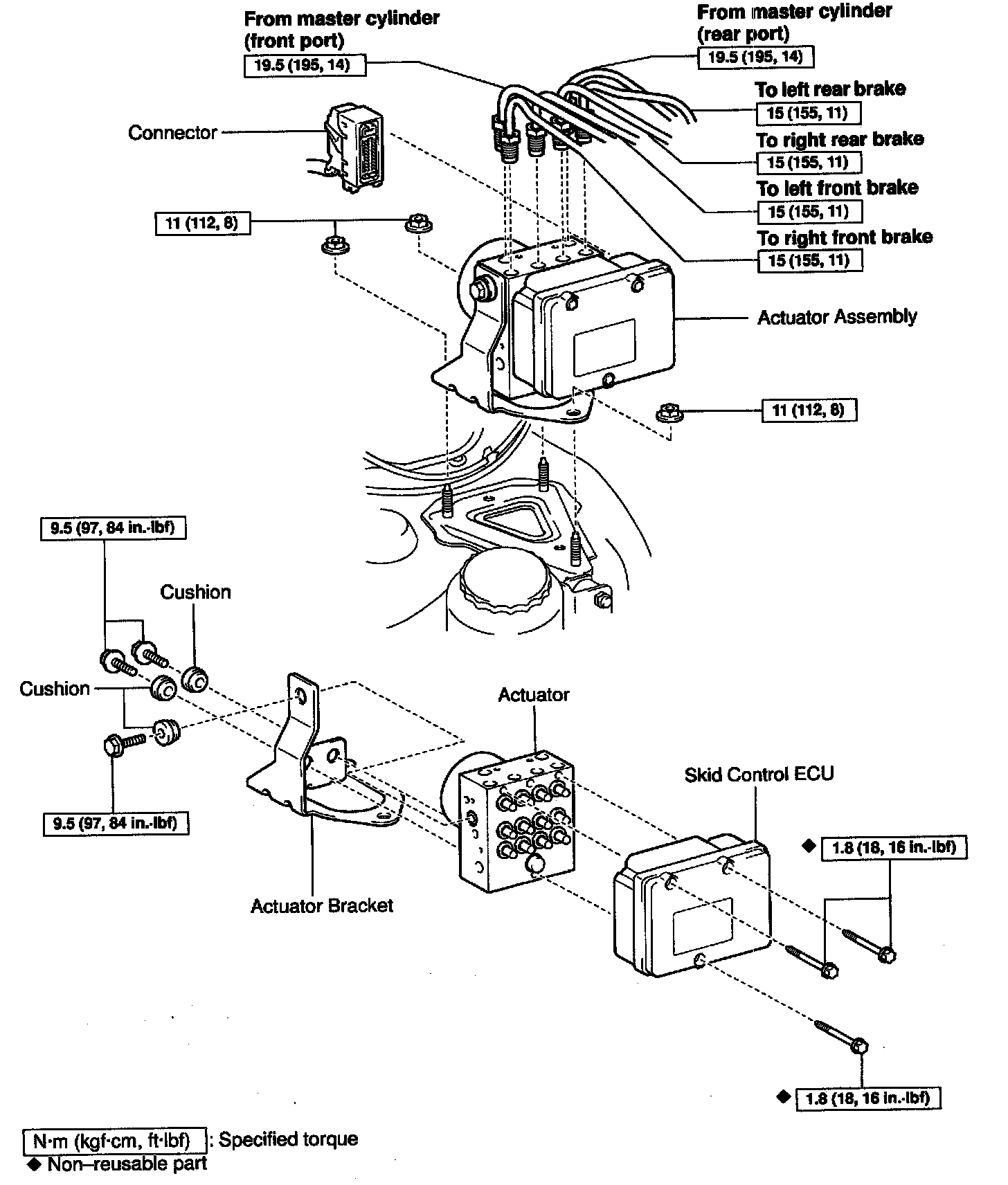

Hydraulic Control Assembly - Antilock Brakes
Hydraulic Control Assembly - Antilock Brakes
ABS & VSC ACTUATOR REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
