Navigation and Audio System Without RSES

Navigation and Audio System Without RSES Part 1:

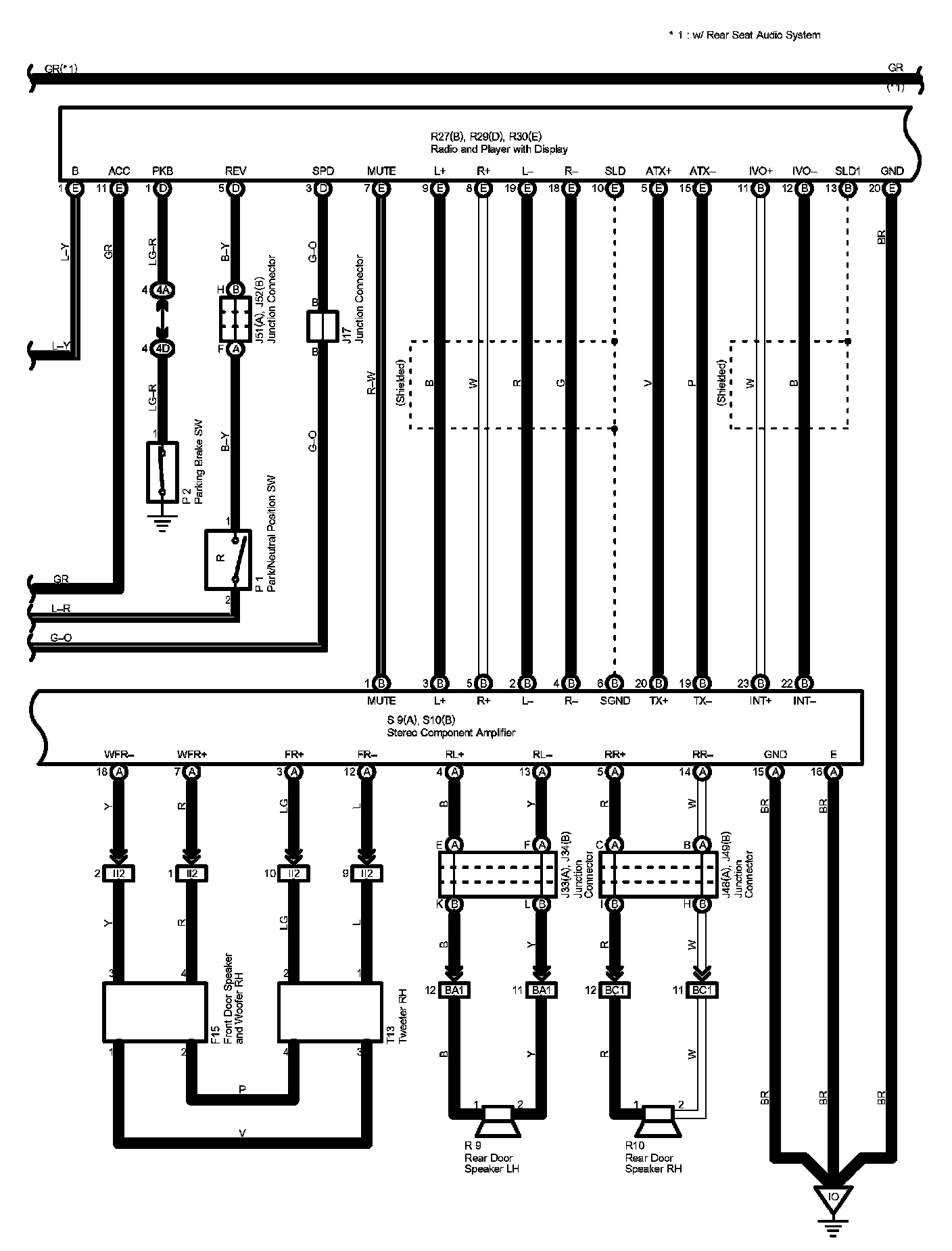

Navigation and Audio System Without RSES Part 2:

Navigation and Audio System Without RSES Part 3:

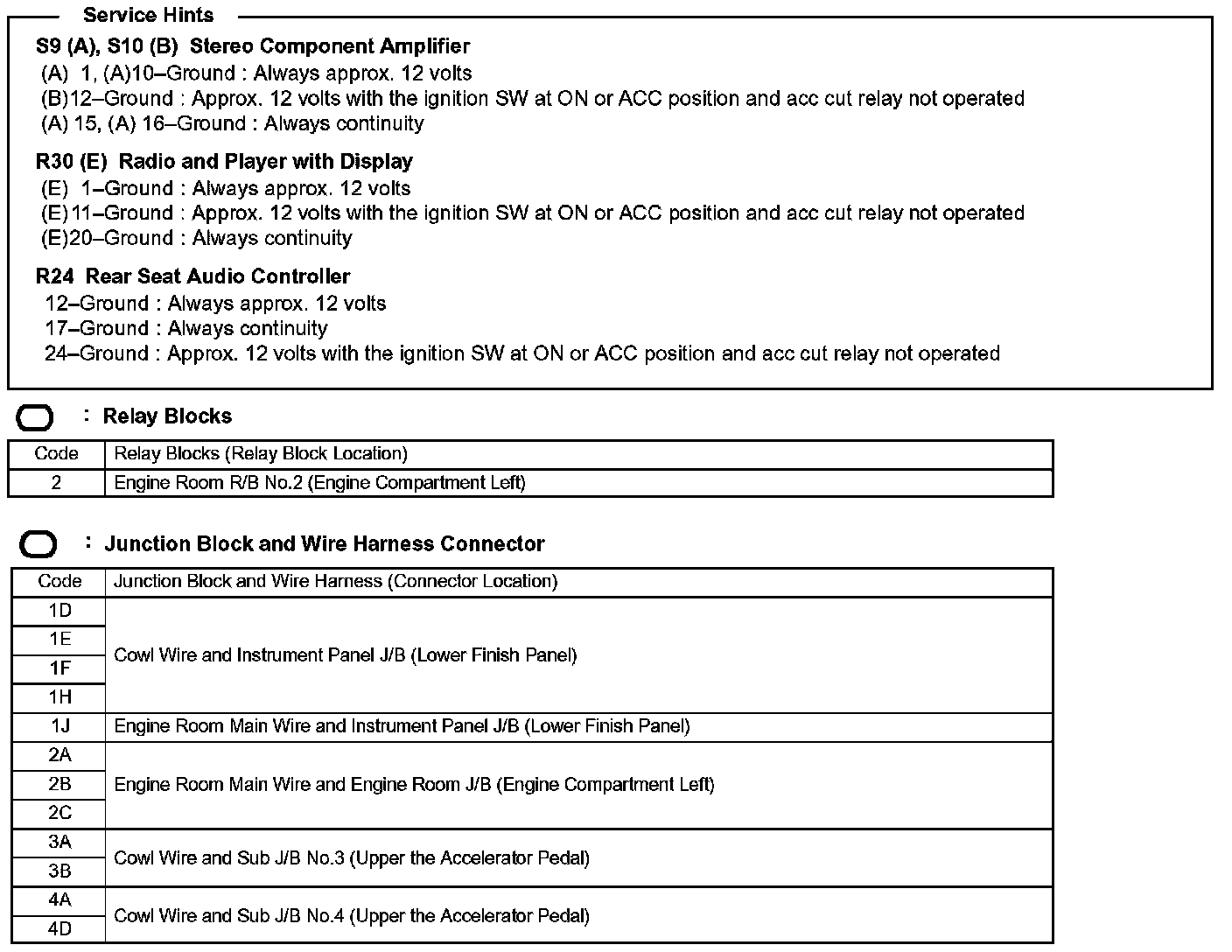

Diagram Legend Part 1:

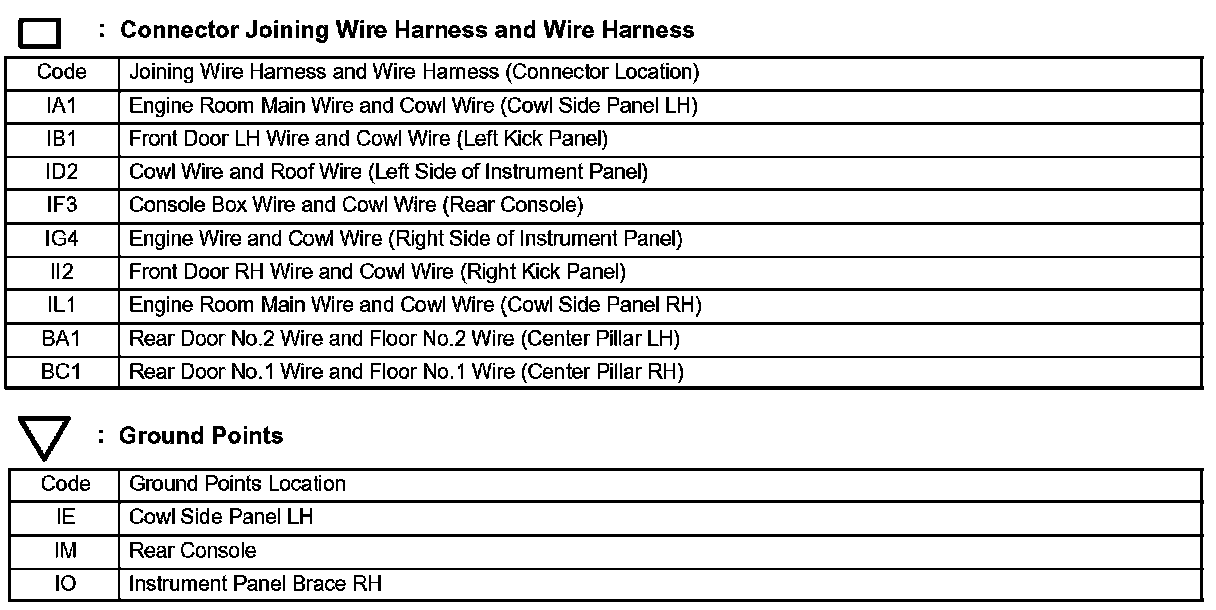

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
