Multiple Junction Connector
Multiple Junction Connector

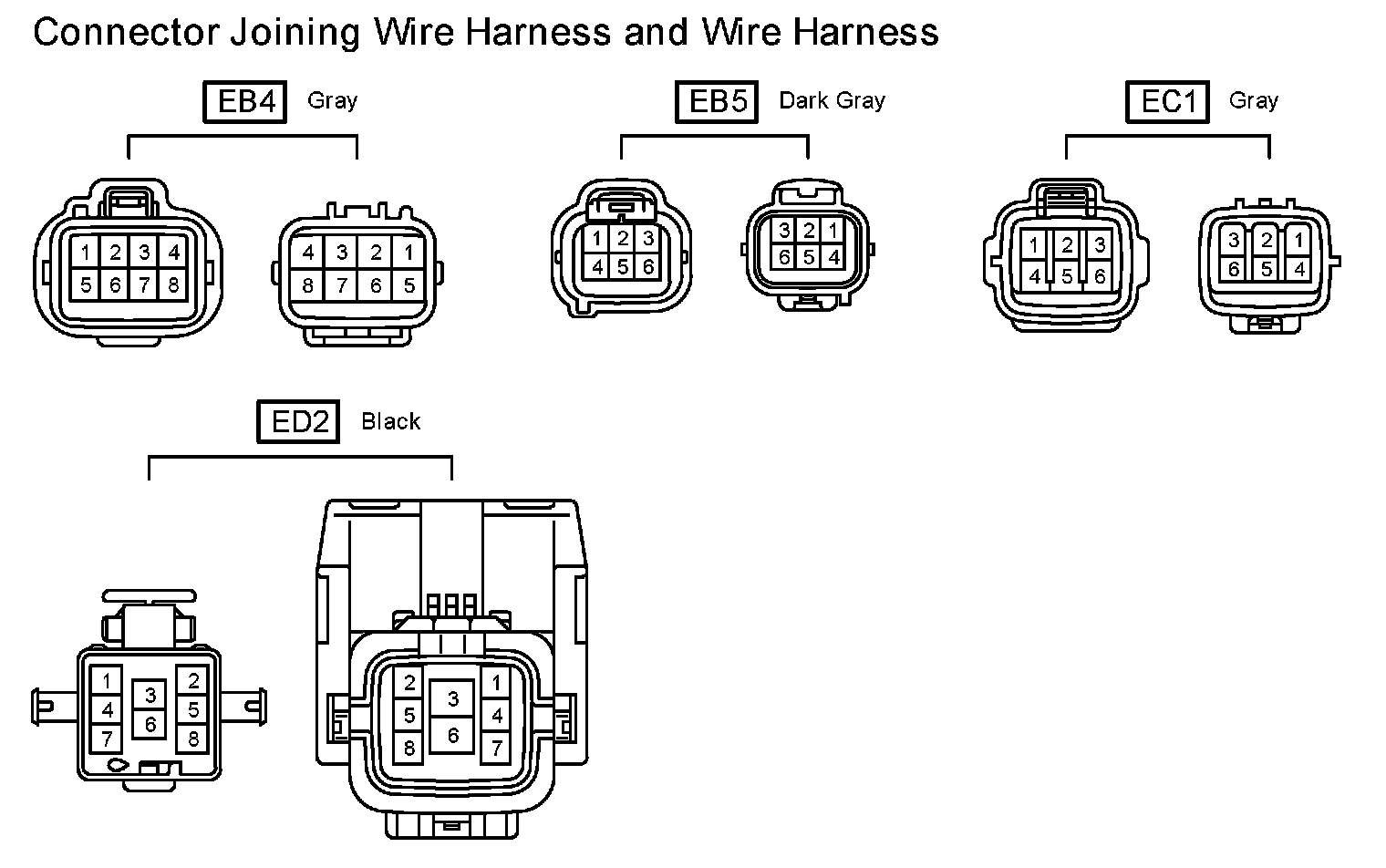

EB4 - ED2:

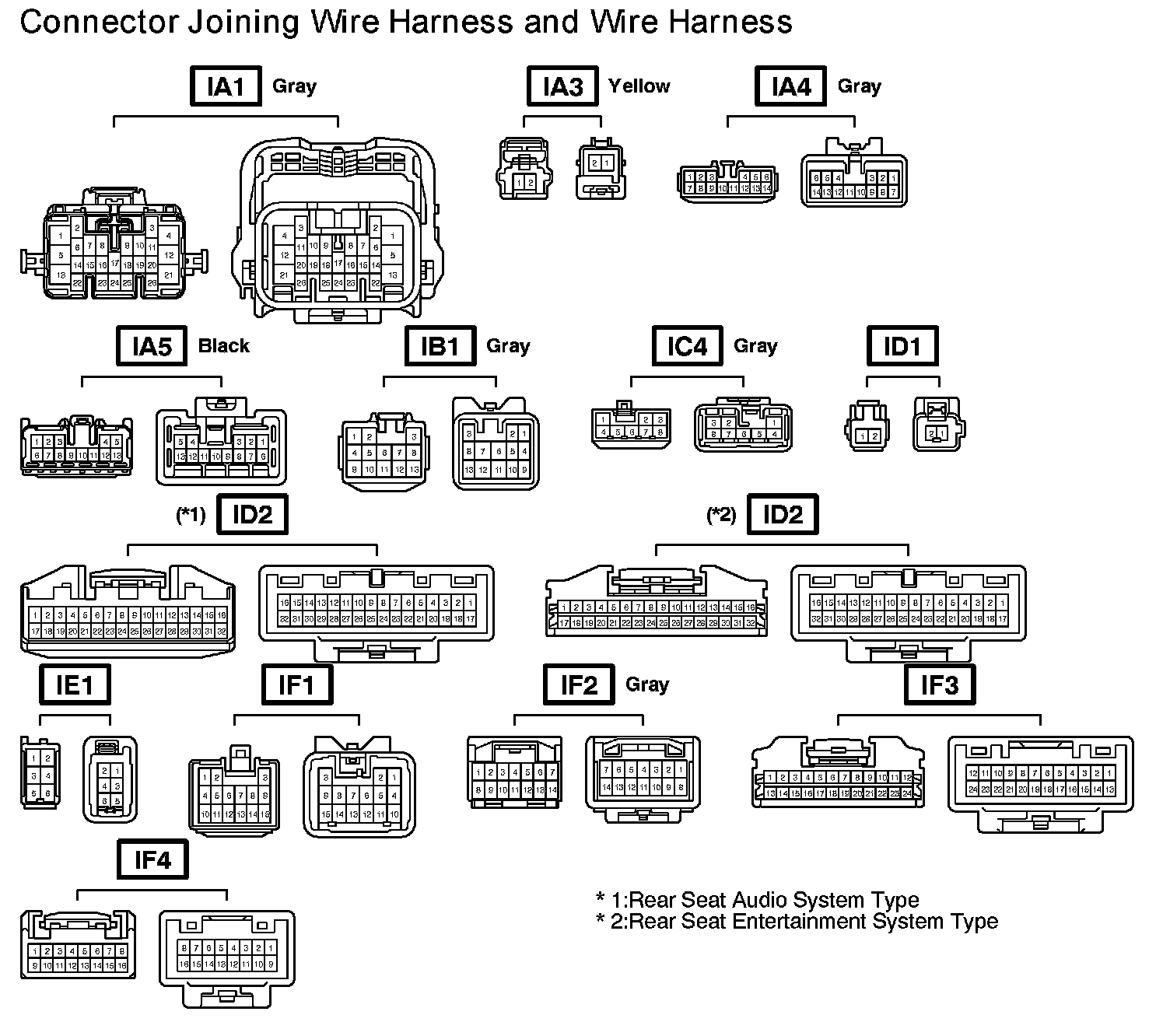

IA1 - IF4:
IG1 - IN1:

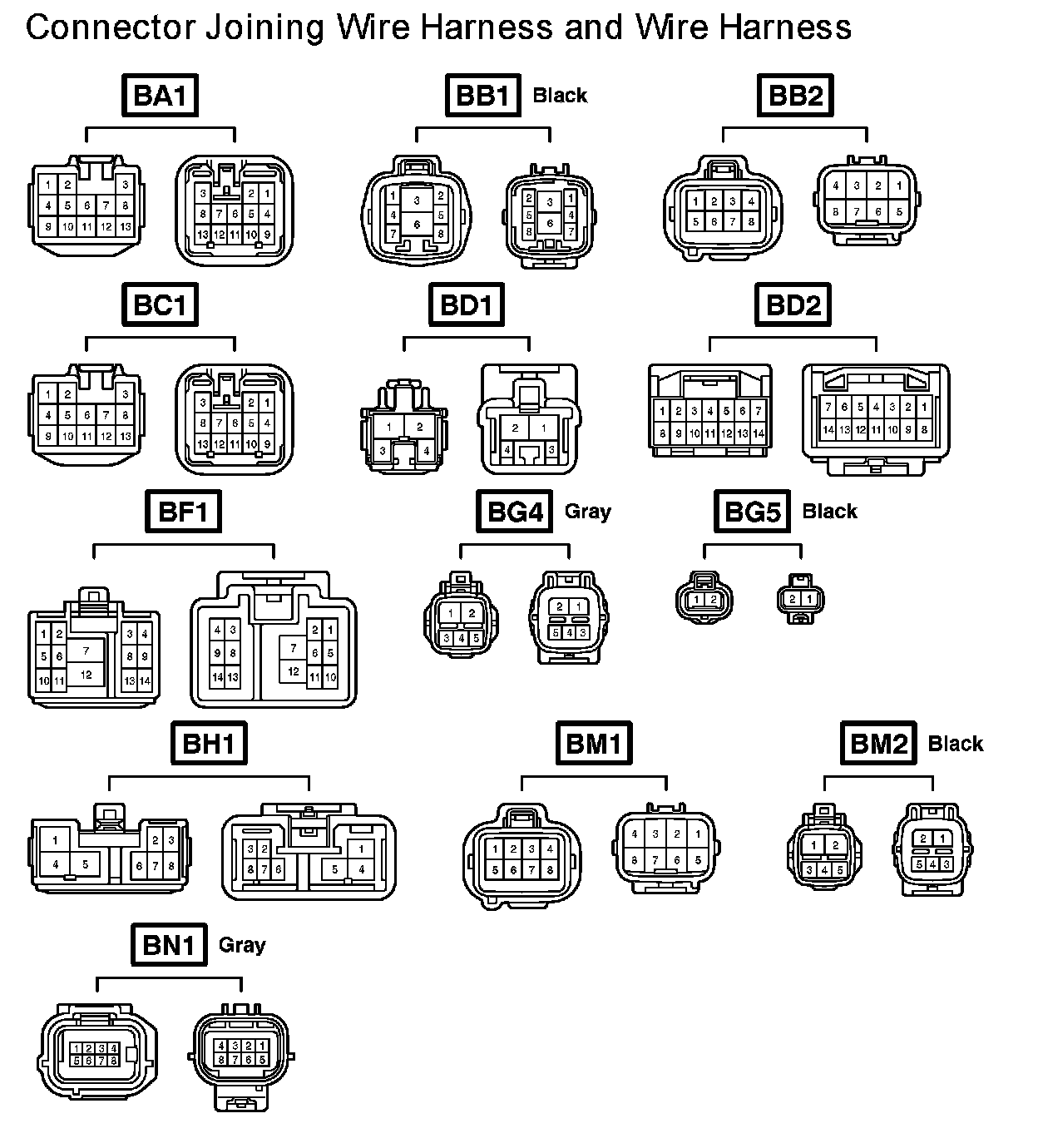

BA1 - BN1:

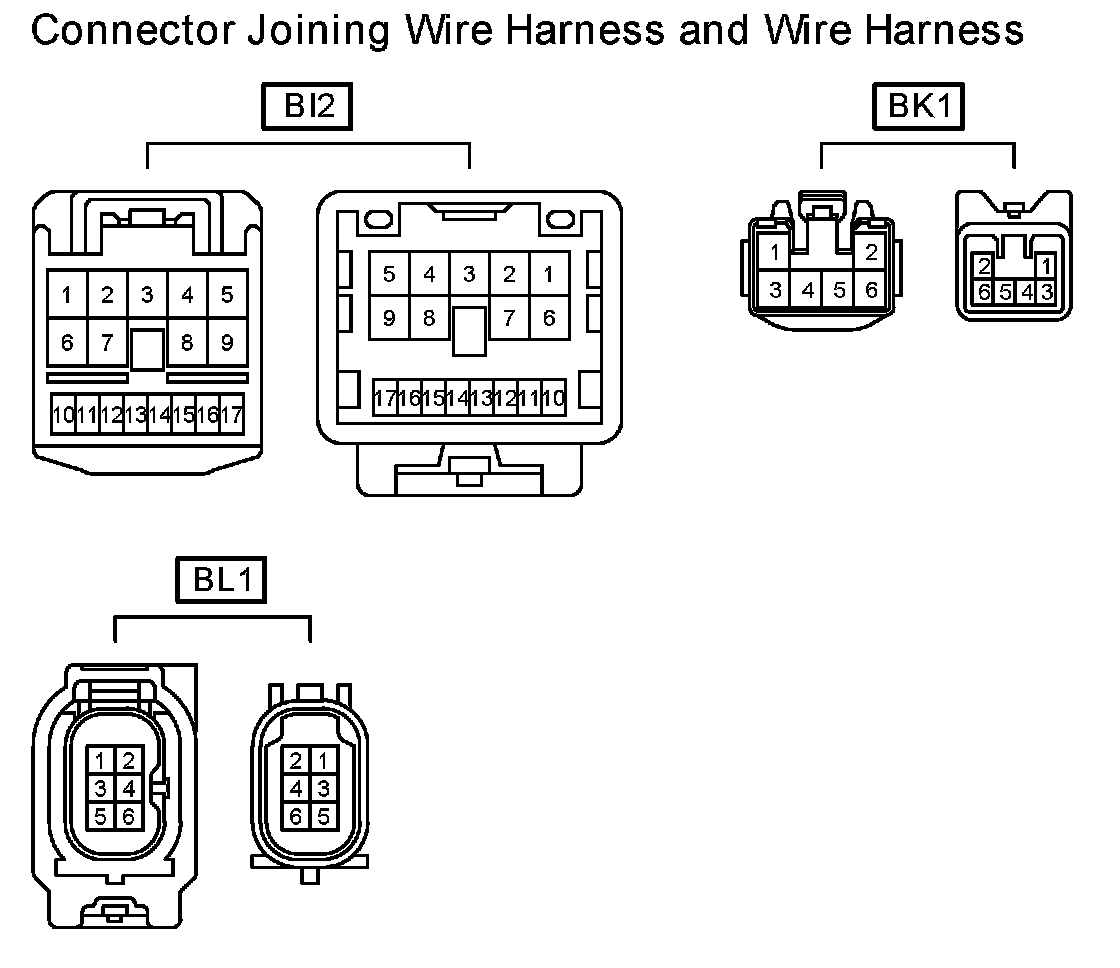

BI2 - BL1:
