Toyota Truck
>>
2005
>>
Sequoia 2WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

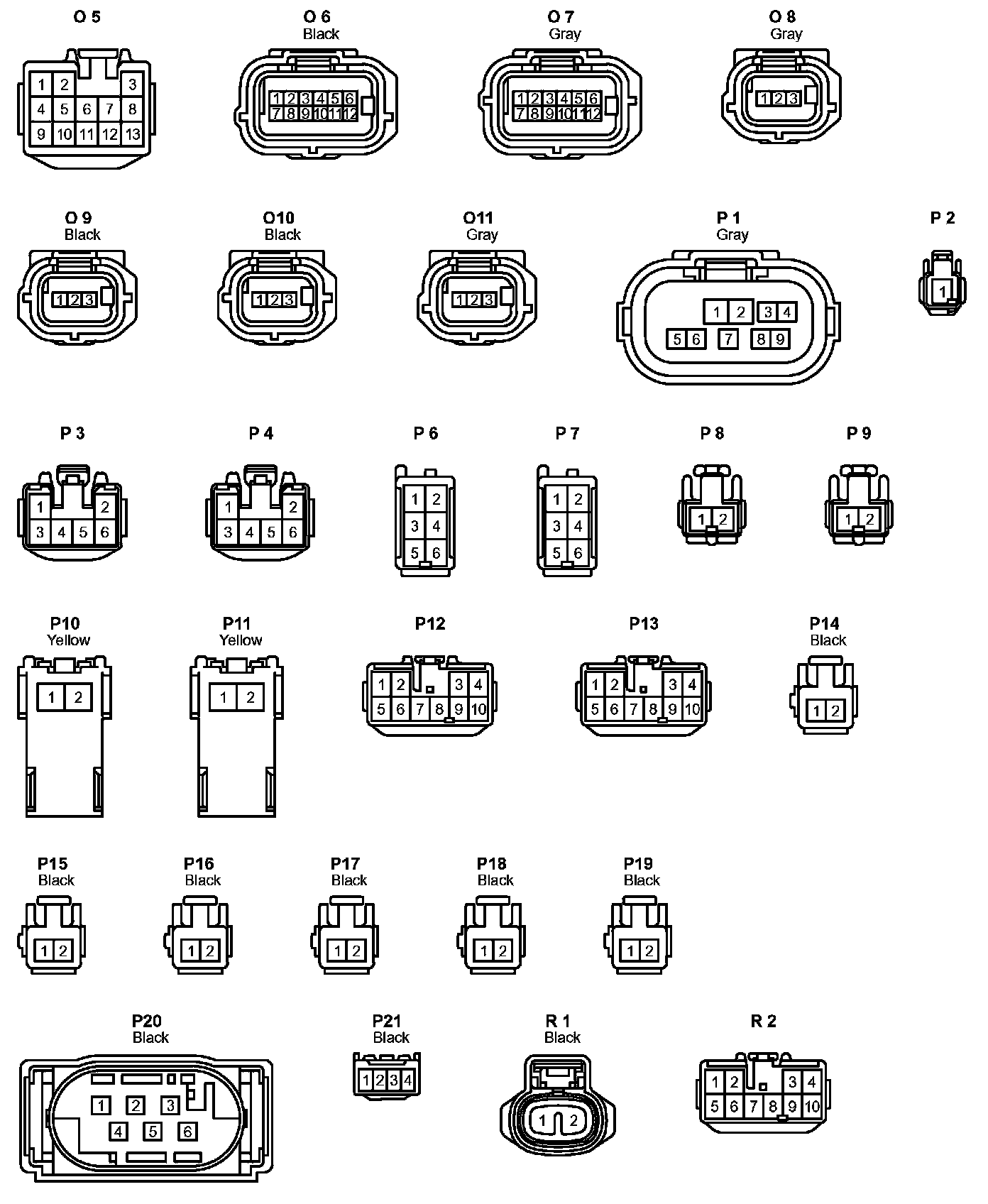

O5 - R2
O5 - R2
O5 - R2:
