Road Test
ROAD TEST1. PROBLEM SYMPTOM CONFIRMATION
a. Inspect the SET function.
1. Push the ON-OFF button on.
2. Drive at the required speed (40 km/h (25 mph) or higher).
3. Push the cruise control main switch to -/SET.
4. Check that the vehicle cruises at the set speed.
b. Inspect the ACC function.
1. Push the ON-OFF button on.
2. Drive at the required speed (40 km/h (25 mph) or higher).
3. Push the cruise control main switch to -/SET.
4. Check that vehicle speed increases while the cruise control main switch is pushed to +/RES, and that the vehicle cruises at the newly set speed when the switch is released.
5. Momentarily push the cruise control main switch to +/RES and then immediately release it. Check that vehicle speed increases by approximately 1.6 km/h (1.0 mph) (Tap-up function).

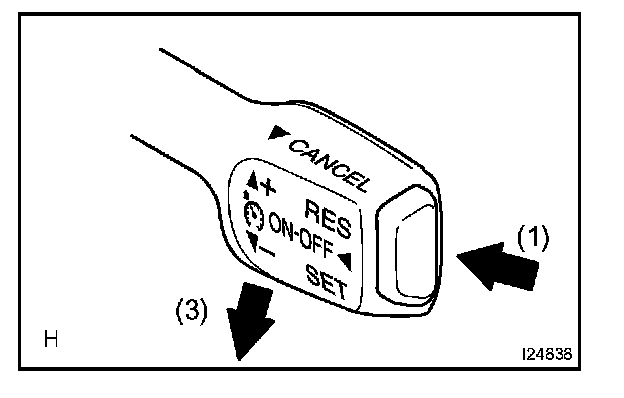

c. Inspect the COAST function.
1. Push the ON-OFF button on.
2. Drive at the required speed (40 km/h (25 mph) or higher).
3. Push the cruise control main switch to -/SET.
4. Check that vehicle speed decreases while the cruise control main switch is pushed to -/SET, and that the vehicle cruises at the newly set speed when the switch is released.
5. Momentarily push the cruise control main switch to -/SET, and then immediately release it. Check that vehicle speed decreases by approximately 1.6 km/h (1.0 mph) (Tap-down function).
d. Inspect the CANCEL function.
1. Push the ON-OFF button on.
2. Drive at the required speed (40 km/h (25 mph) or higher).
3. Push the cruise control main switch to -/SET.
4. When doing any one of the following, check that the cruise control system deactivates and that the normal driving mode is reset.
- Depressing the brake pedal
- Moving the shift lever to any position except D
- Pushing the ON-OFF button off
- Pulling the cruise control main switch to CANCEL
Reference: Cruise control will deactivate if VSC starts operation while driving.

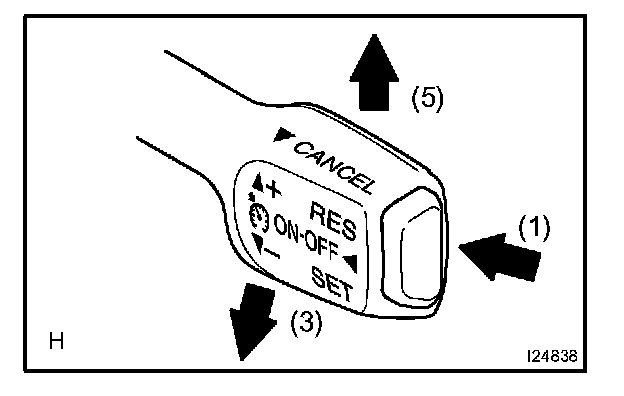

e. Inspect the RES (RESUME) function.
1. Push the ON-OFF button on.
2. Drive at the required speed (40 km/h (25 mph) or higher).
3. Push the cruise control main switch to -/SET.
4. When doing any one of the following, check that the cruise control system deactivates and that the normal driving mode is reset.
- Depressing the brake pedal
- Moving the shift lever to any position except D
- Pulling the cruise control main switch to CANCEL
5. After pushing the cruise control main switch to +/RES while driving, check that the vehicle resumes the speed set prior to the cancellation.
