Removal and Installation

REMOVAL
1. REMOVE FRONT WHEEL
Torque: 110 Nm (1,150 kgf-cm, 82 ft. lbs.)

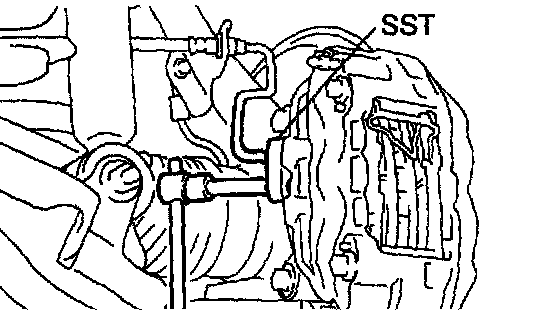

2. DISCONNECT BRAKE LINE
Using SST, disconnect the brake line. Use a container to catch the brake fluid.
SST 09023-00100
Torque: 15 Nm (155 kgf-cm, 11 ft. lbs.)

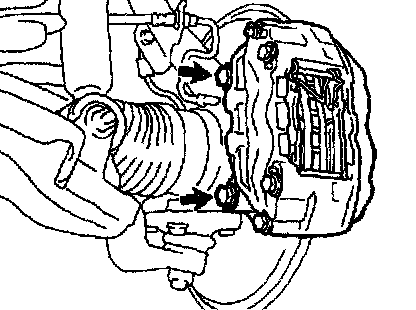

3. REMOVE CALIPER
Remove the 2 mounting bolts and caliper.
Torque: 123 Nm (1,250 kgf-cm, 90 ft. lbs.)
4. REMOVE CLIP, 2 PINS AND ANTI-RATTLE SPRING
5. REMOVE 2 PADS WITH 4 ANTI-SQUEAL SHIMS

INSTALLATION
Installation is in the reverse order of removal.

HINT:
^ After installation, fill the brake reservoir with brake fluid and bleed brake system.
^ Check for leaks.
