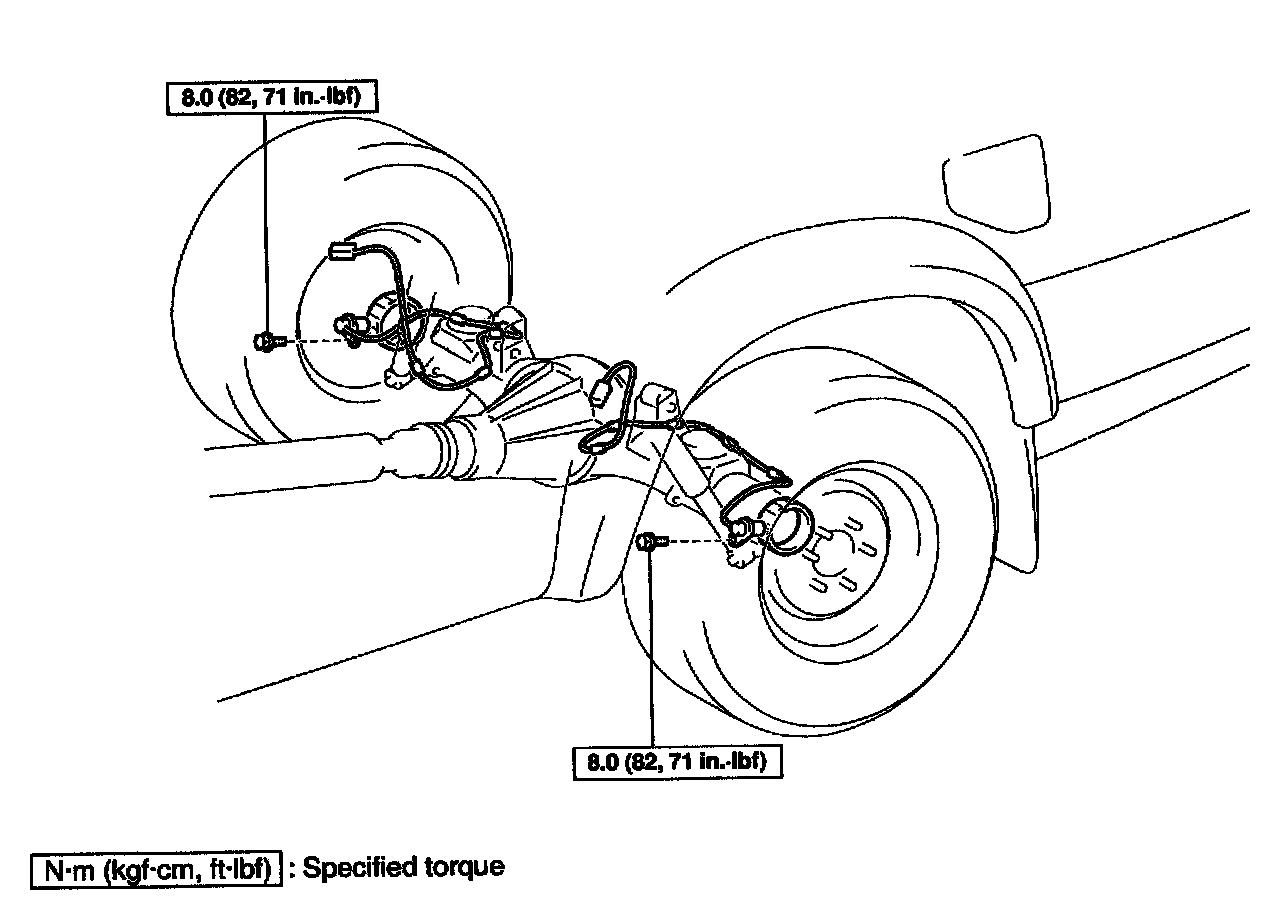

Speed Sensor, Rear

REMOVAL
1. DISCONNECT SPEED SENSOR CONNECTOR
2. REMOVE SPEED SENSOR
a. Remove the 6 resin clips holding the sensor wire harness.

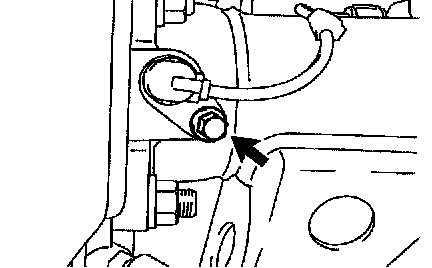

b. Remove the bolt and speed sensor from the axle carrier.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)

INSTALLATION
Installation is In the reverse order of removal.

HINT: After installation, check speed sensor signal.
