VSC TRAC Warning Light Circuit (Remains On)

VSC TRAC WARNING LIGHT CIRCUIT (REMAINS ON)

CIRCUIT DESCRIPTION

If the ECU stores a DTC to shut down VSC & TRAC operation, the VSC TRAC warning light on the combination meter come on.

Wiring Diagram:

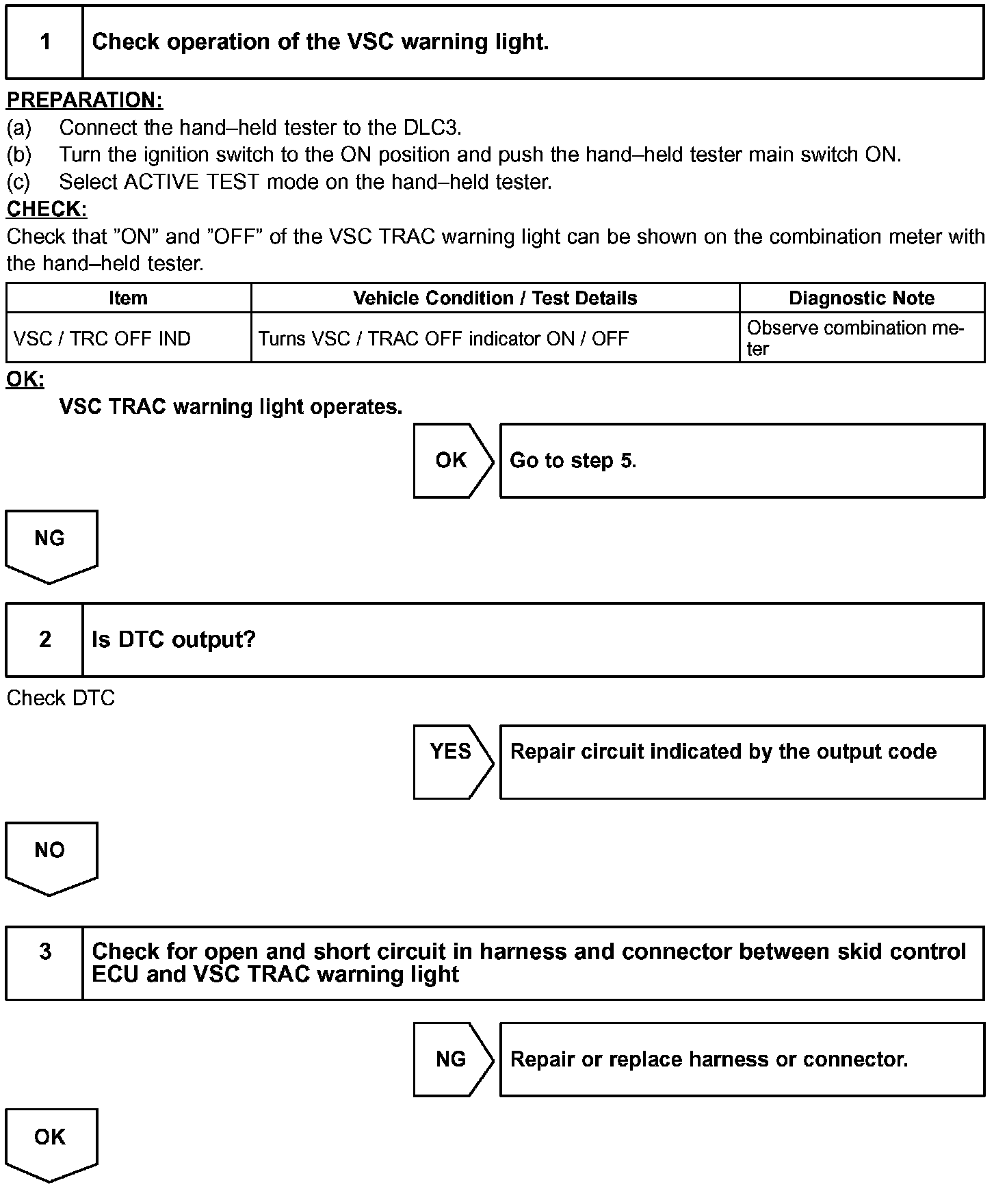

Step 1 - 3:

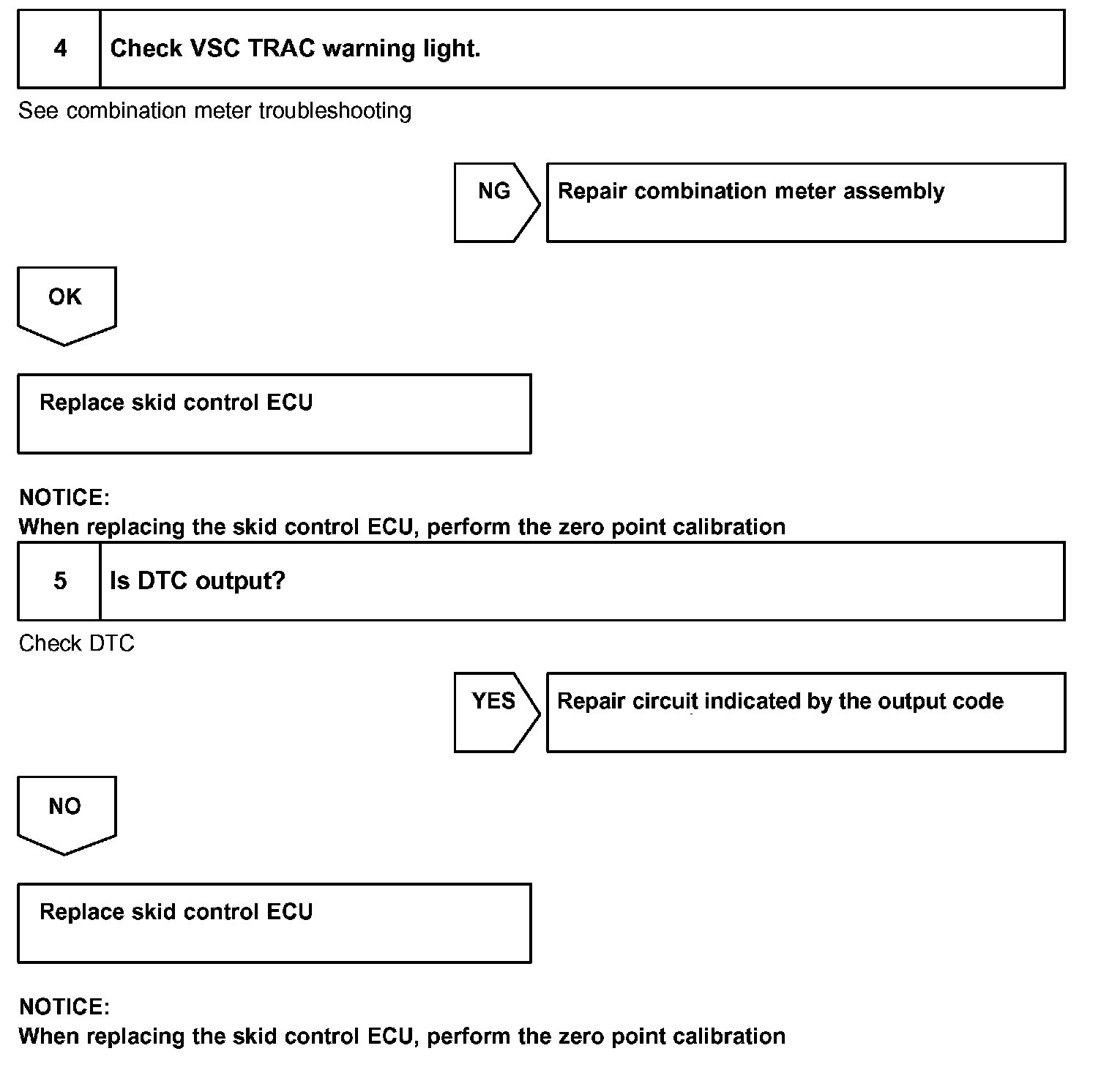

Step 4 - 5:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
