VSC TRAC Warning Light Circuit (Does Not Light Up)

VSC TRAC WARNING LIGHT CIRCUIT (DOES NOT LIGHT UP)

CIRCUIT DESCRIPTION

If the ECU stores a DTC to shut down VSC & TRAC operation, the VSC TRAC warning light on the combination meter come on.

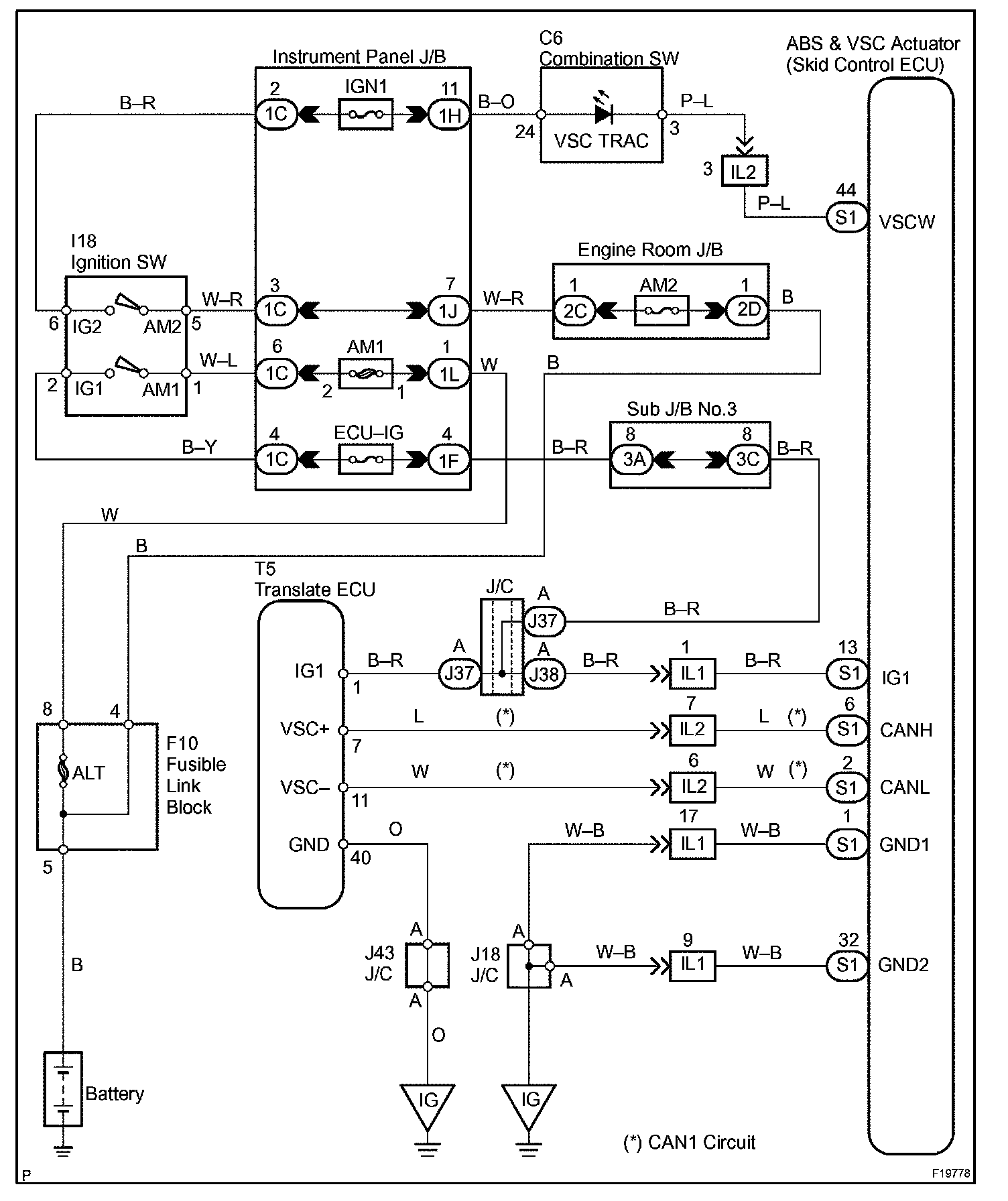

Wiring Diagram:

Step 1:

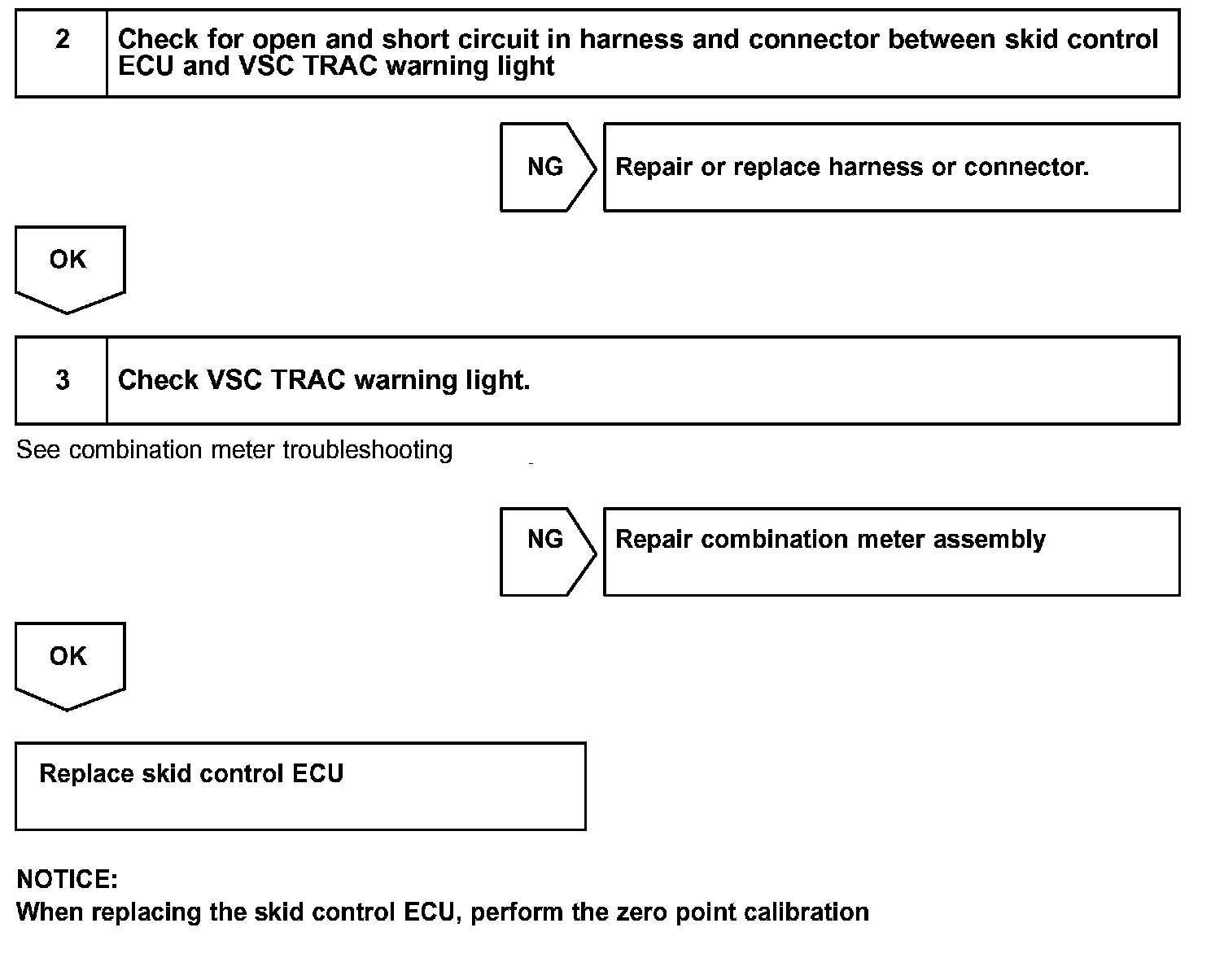

Step 2 - 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
