Slip Indicator Light Circuit (Does Not Light Up)

SLIP INDICATOR LIGHT CIRCUIT (DOES NOT LIGHT UP)

CIRCUIT DESCRIPTION

The SLIP indicator light blinks during VSC & TRAC operation.

The skid control ECU is connected to the translate ECU via the CAN communication system.

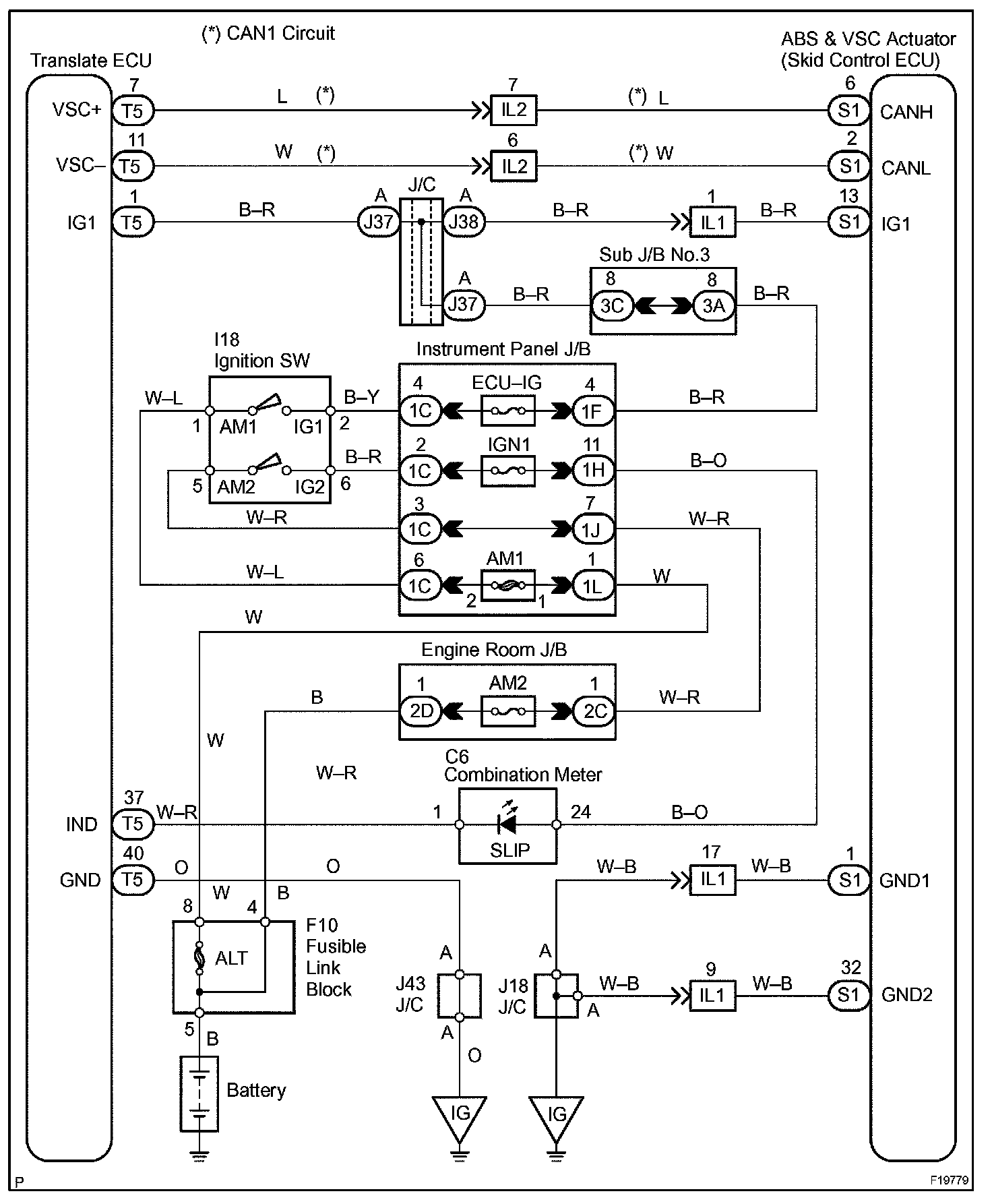

Wiring Diagram:

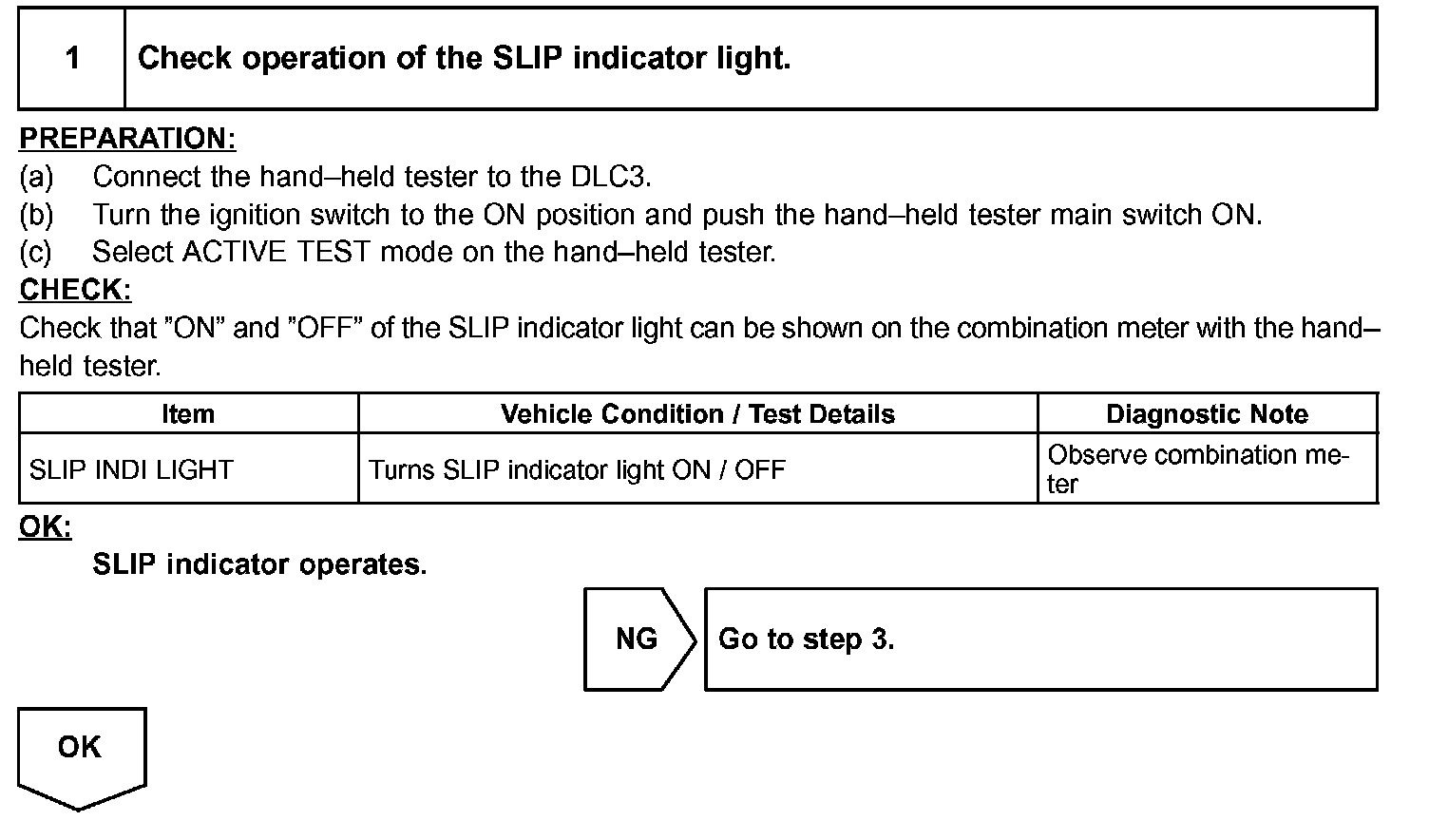

Step 1:

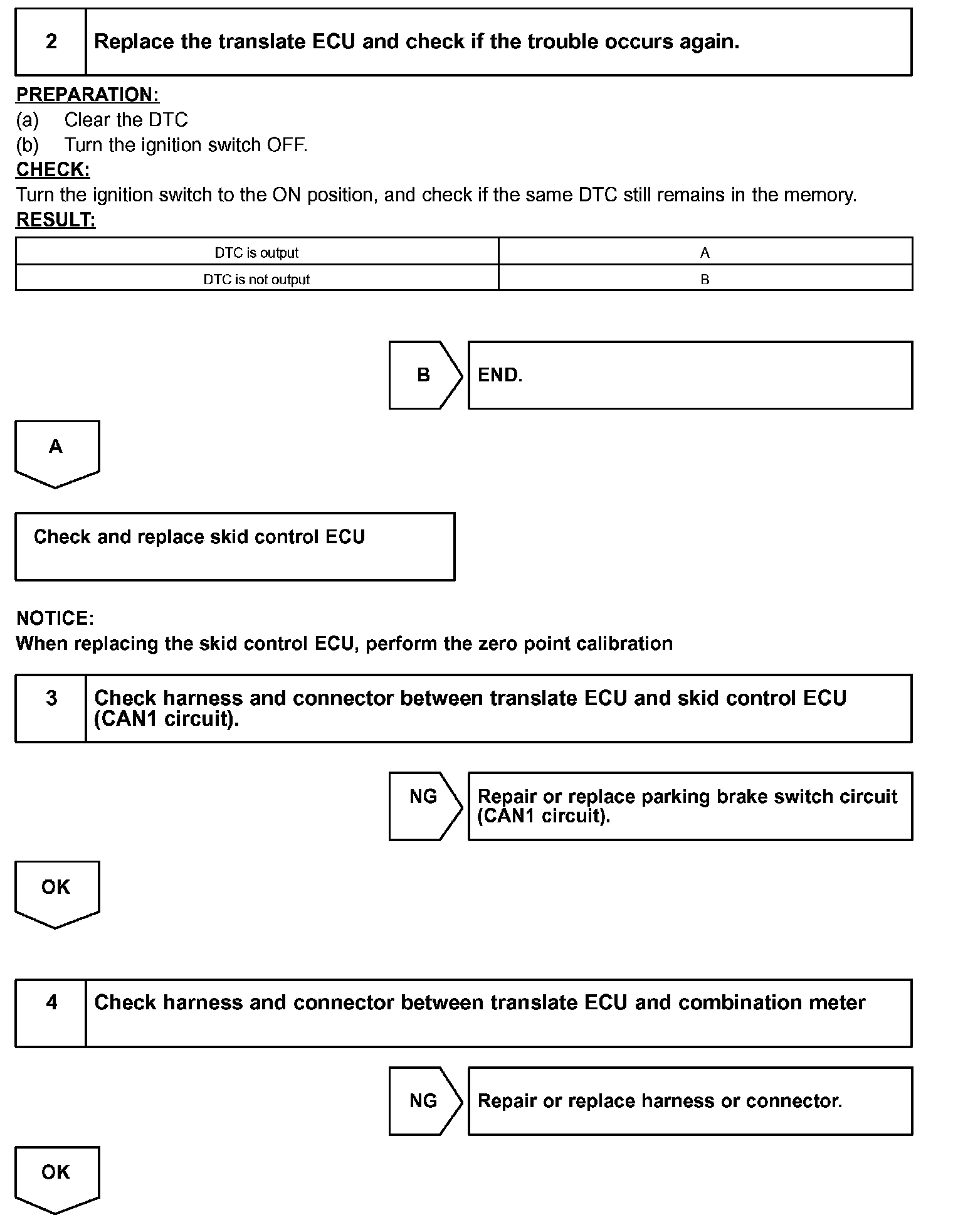

Step 2 - 4:

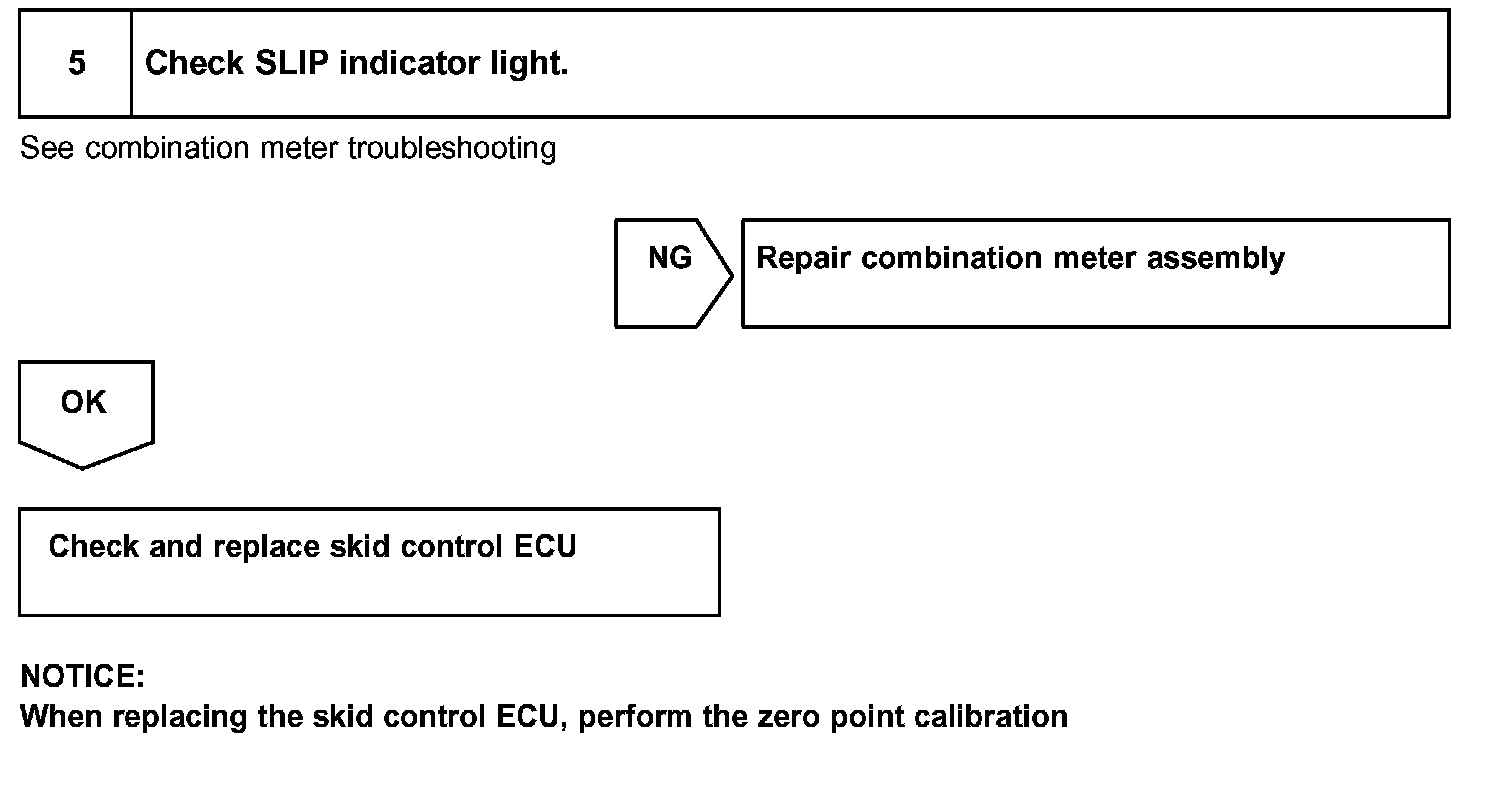

Step 5:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 3 when not using the hand-held tester.
