SLIP Indicator Light Circuit (Remains On)

SLIP INDICATOR LIGHT CIRCUIT (REMAINS ON)

CIRCUIT DESCRIPTION
The SLIP indicator light blinks during VSC & TRAC operation.

The skid control ECU is connected to the translate ECU via the CAN communication system.

Wiring Diagram:

Step 1 - 3:

Step 4 - 6:

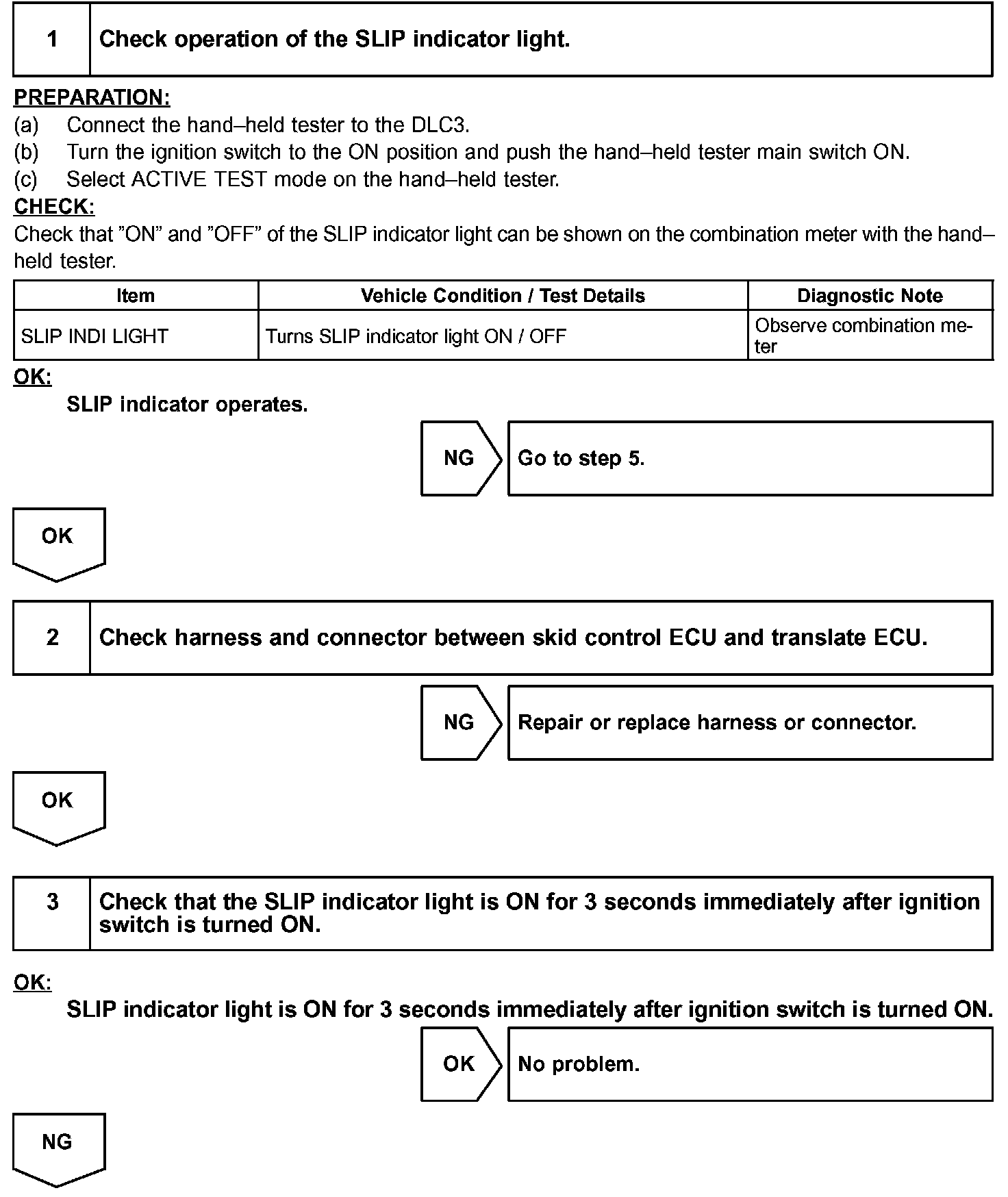

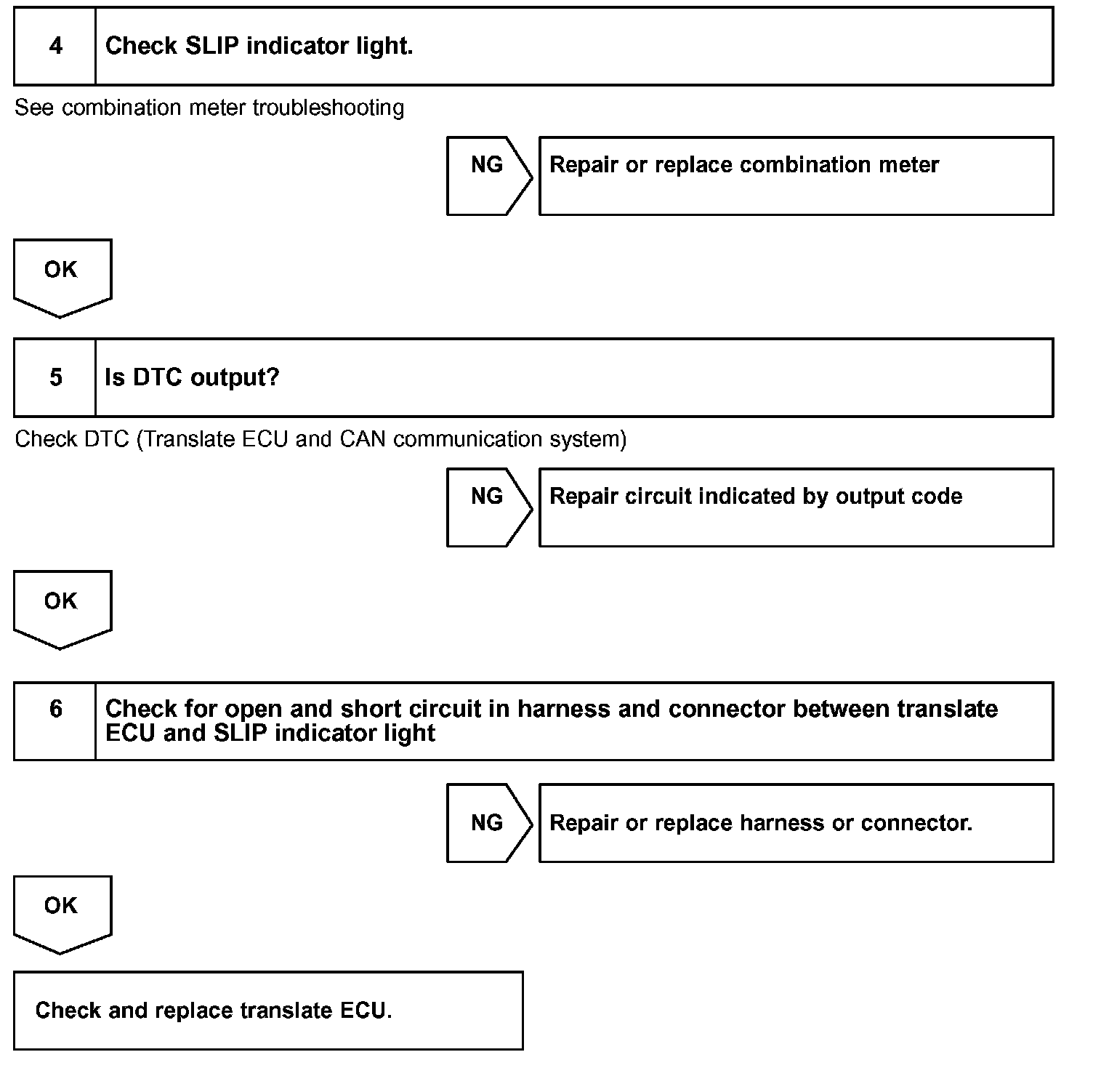

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
