DTC Normal Code - Malfunction In Translate ECU

DTC NORMAL CODE MALFUNCTION IN TRANSLATE ECU

CIRCUIT DESCRIPTION

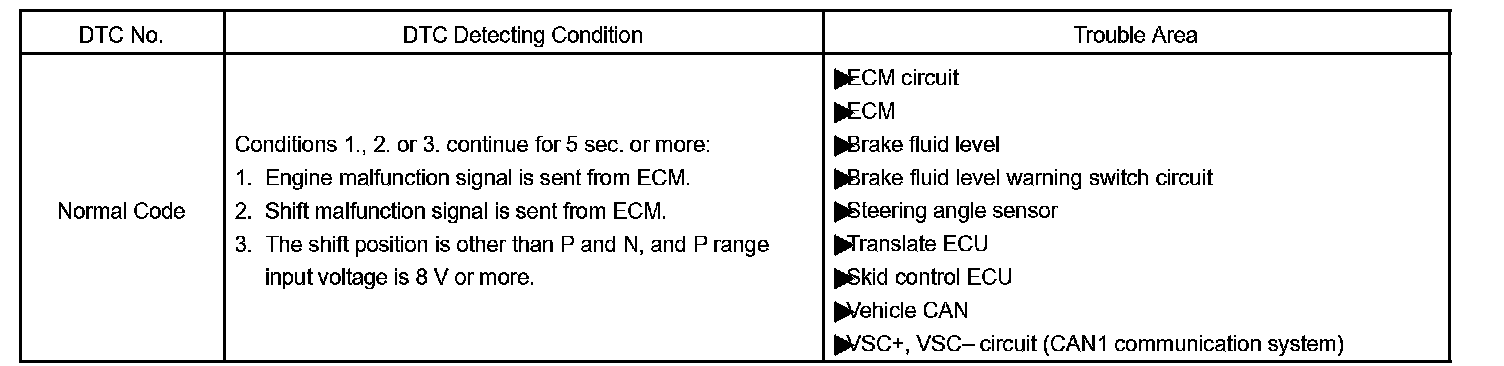

DTC Detecting Condition:

If any trouble occurs in the engine control system, the skid control ECU prohibits ABS & VSC control.

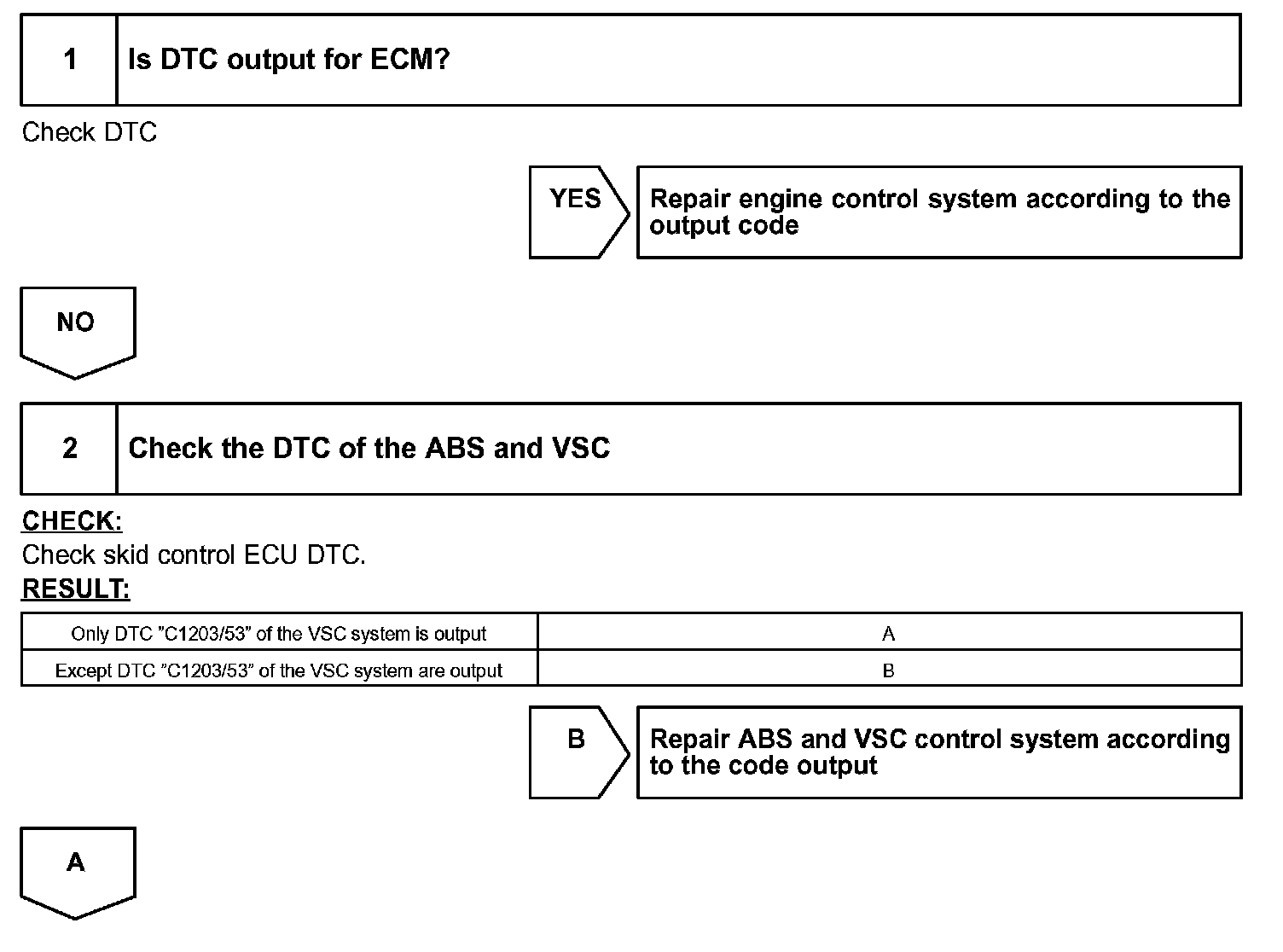

Step 1 - 2:

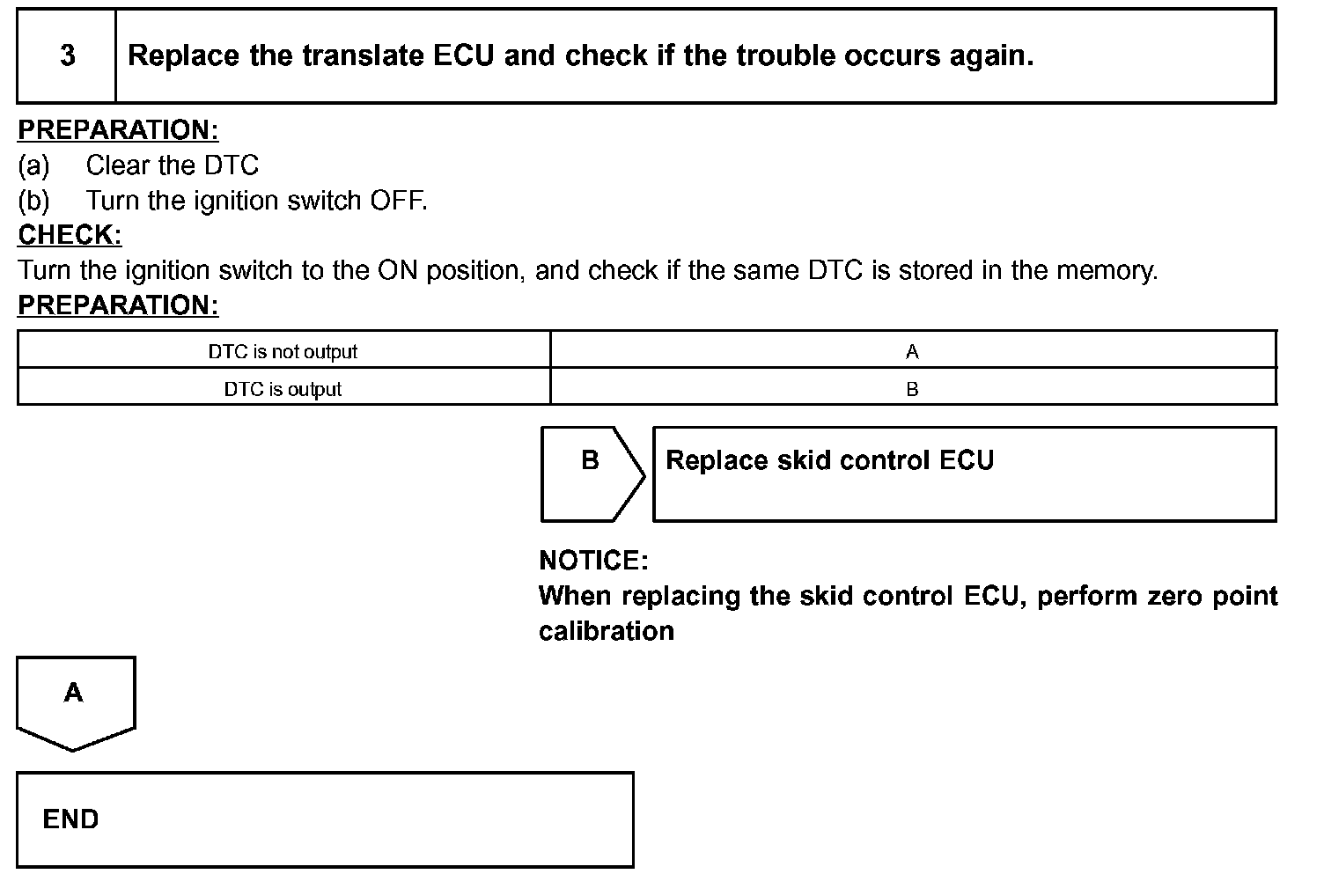

Step 3:

INSPECTION PROCEDURE
