VSC OFF (TRAC OFF) Indicator Light, Center Diff. Lock (TRAC OFF) Switch Circuit

VSC OFF *1 (TRAC OFF)*2 INDICATOR LIGHT, CENTER DIFF. LOCK *1 (TRAC OFF)*2 SWITCH CIRCUIT

*1: Only for 4WD
*2: Only for 2WD

CIRCUIT DESCRIPTION

This is the VSC (TRAC) control main switch. When the center diff. lock (TRAC OFF) switch is pushed on, VSC (TRAC) indicator goes off and the VSC OFF (TRAC OFF) indicator comes on. Turn the ignition switch OFF, and check that the VSC (TRAC) indicator comes on when turning the ignition switch to the ON position again.

Pressing the center diff. lock switch in 2WD mode does not deactivate VSC control. *1

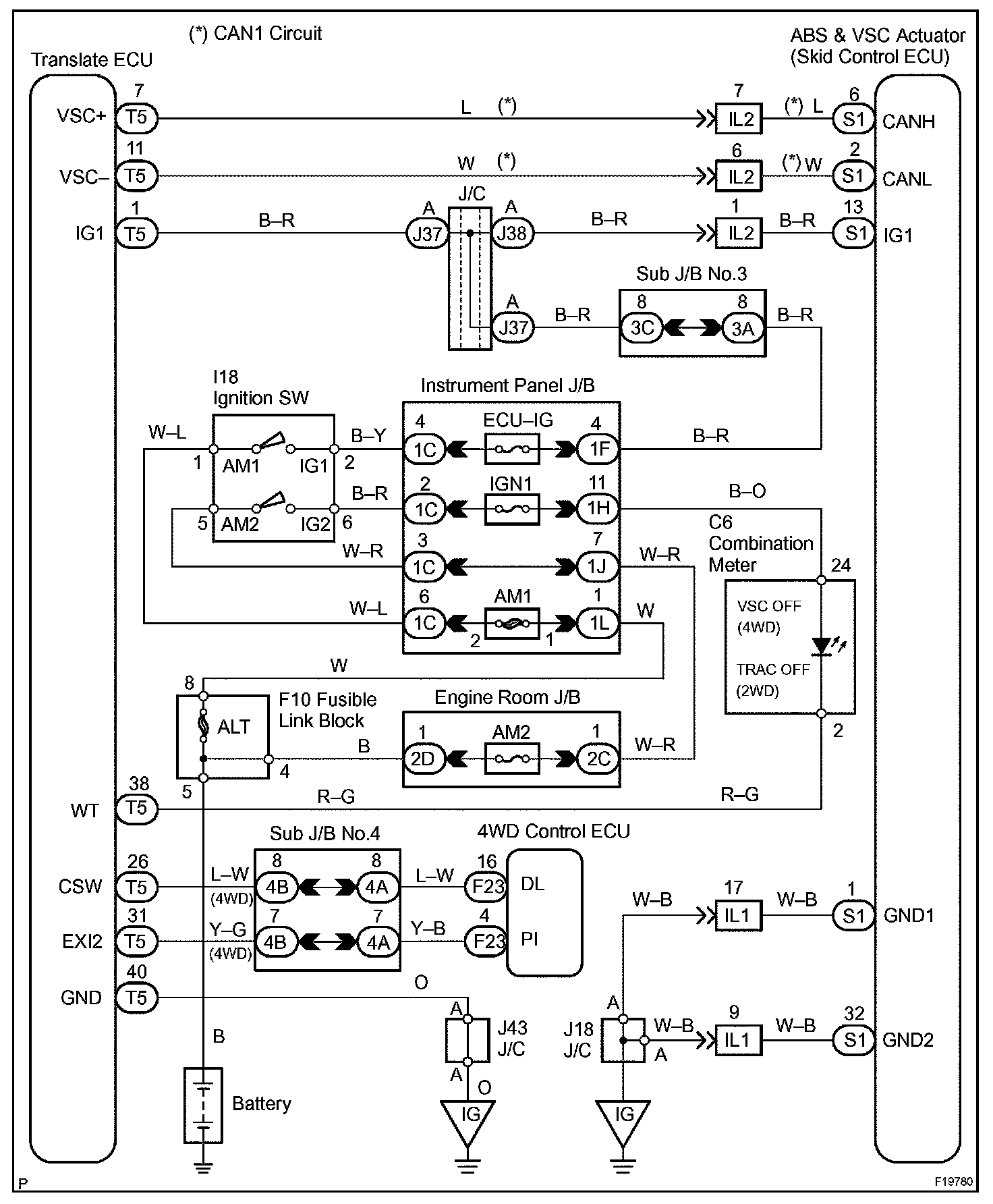

Wiring Diagram:

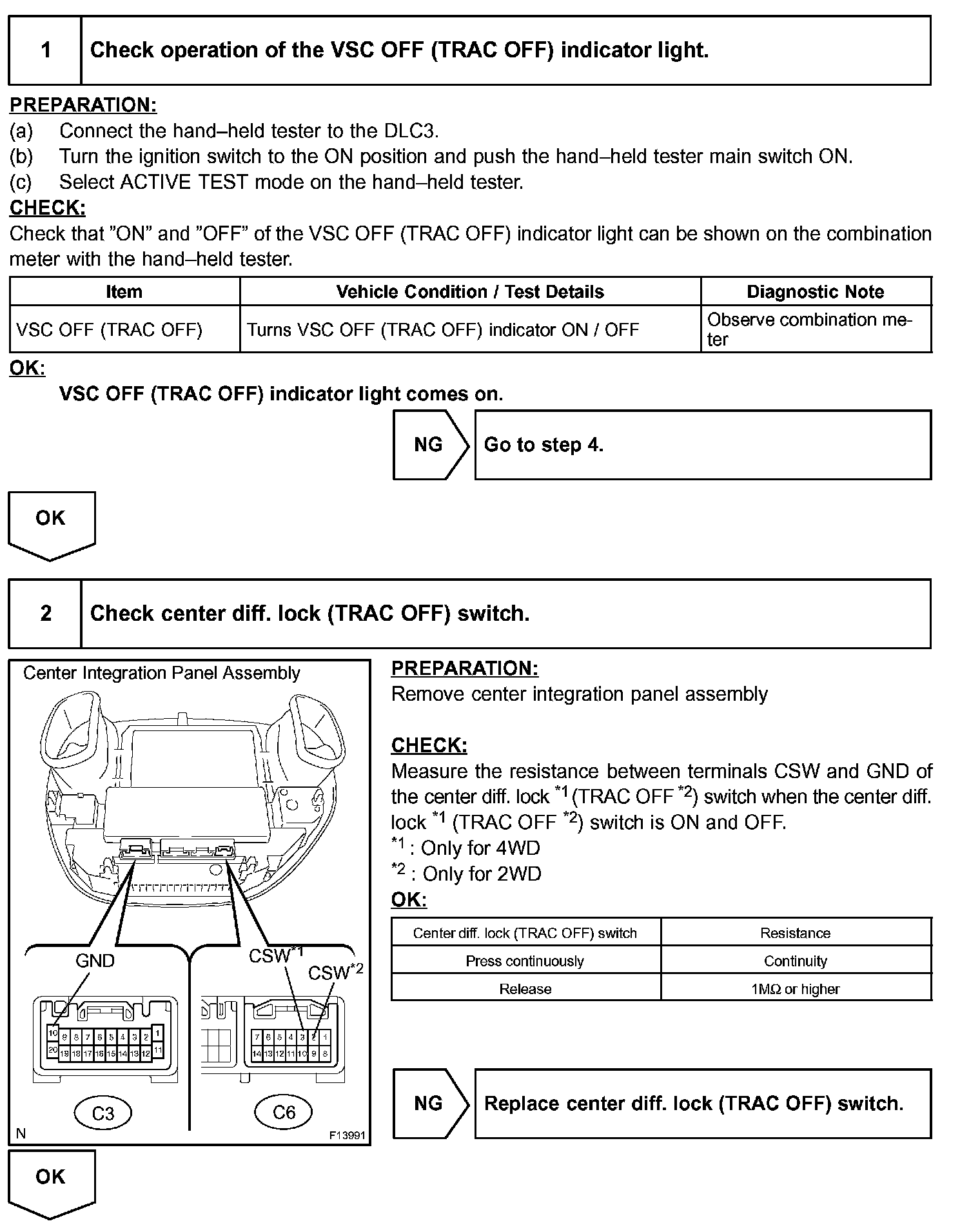

Step 1 - 2:

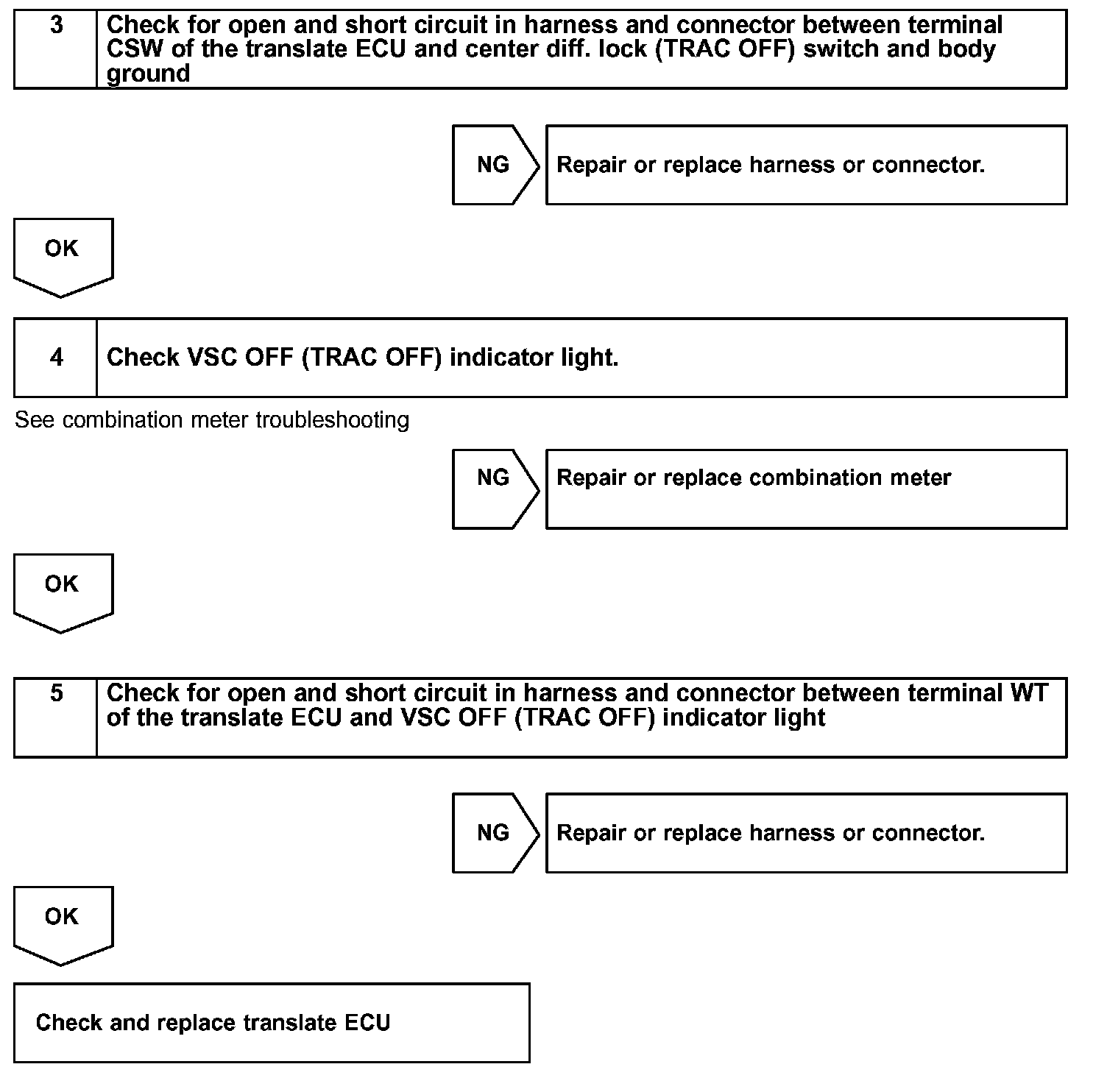

Step 3 - 5:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
