Tc Terminal Circuit

TC TERMINAL CIRCUIT

CIRCUIT DESCRIPTION

Connecting terminals TC and CG of the DLC3 causes the skid control ECU to indicate the DTC by blinking the ABS warning light, VSC TRAC warning light and BRAKE warning light.

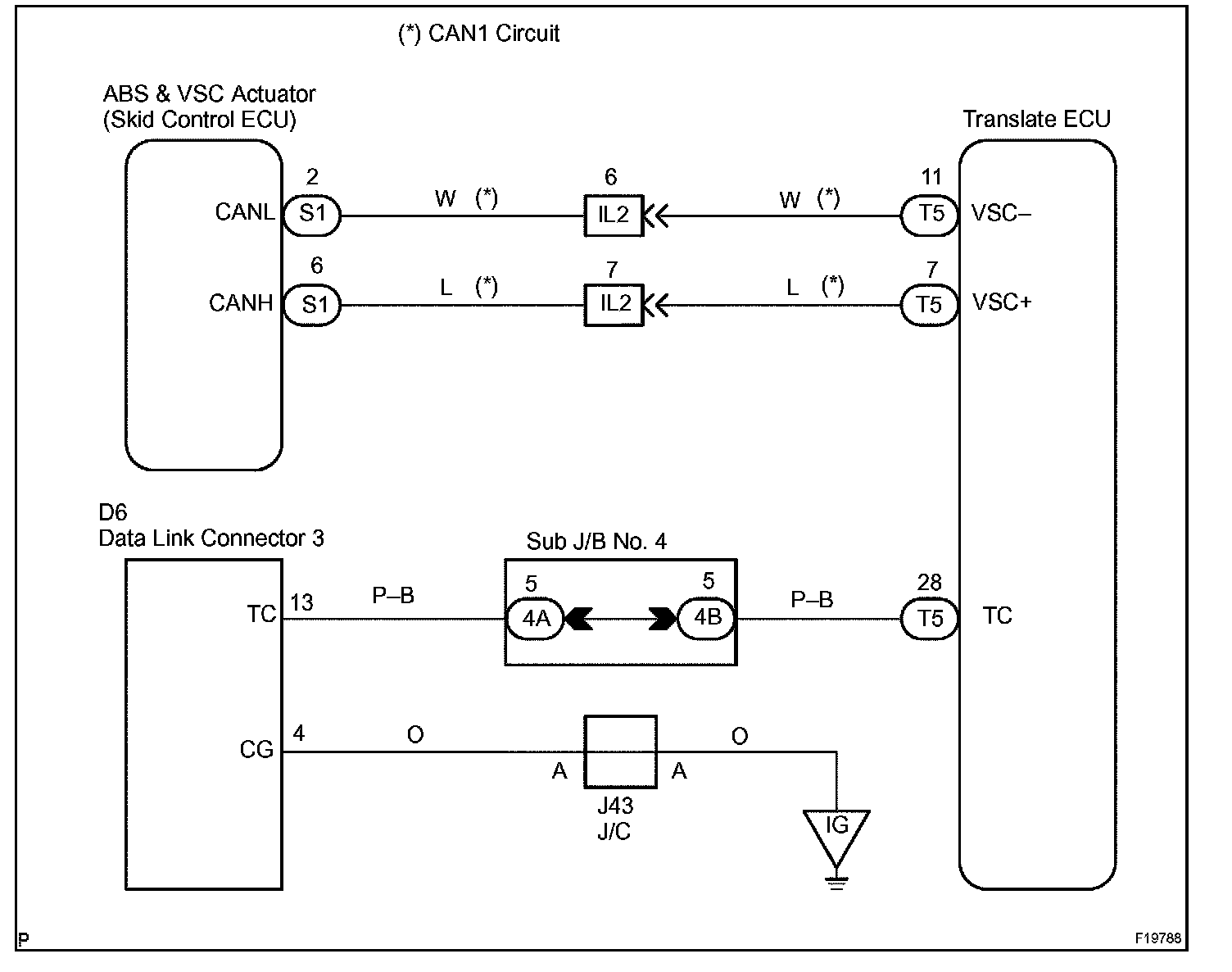

Wiring Diagram:

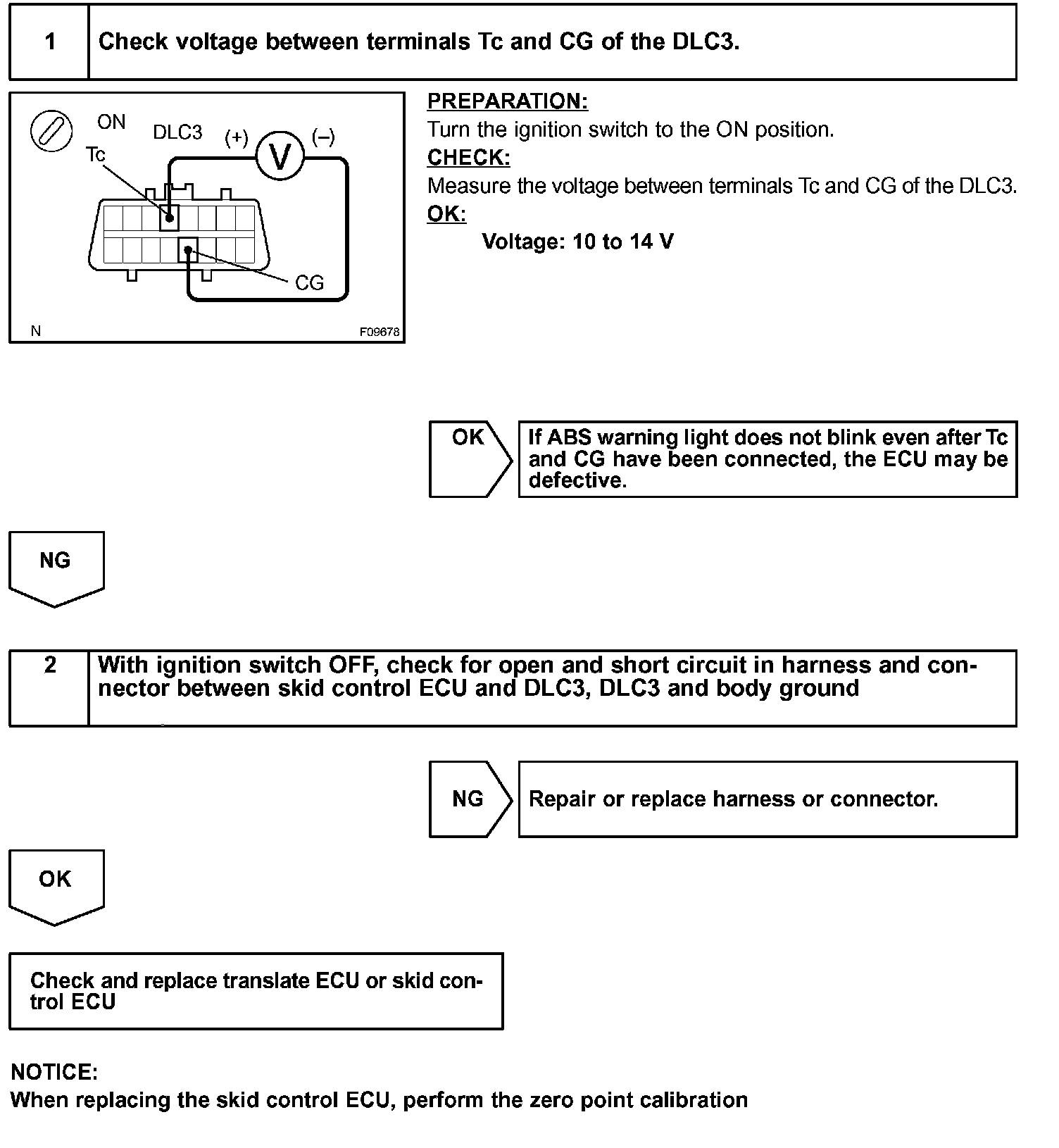

Step 1 - 2:

INSPECTION PROCEDURE
