Park/Neutral Position Switch Circuit

PARK/NEUTRAL POSITION SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The power seat memory system operates only when the ignition switch is in the ON position and the park/ neutral position is in the P (park) position.

The position control ECU & switch assembly detects the P position, via multiplex communication, through the park/neutral position switch.

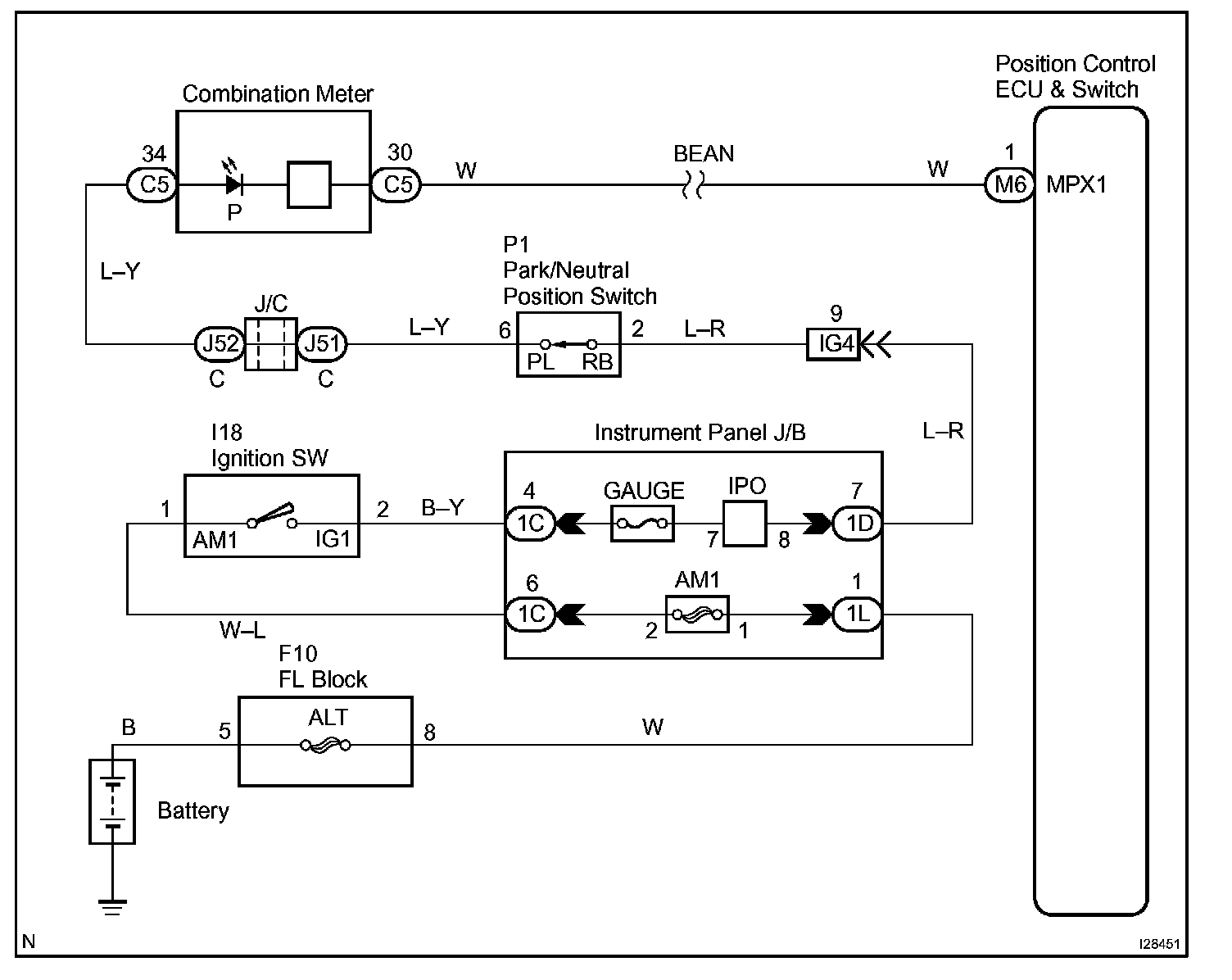

Wiring Diagram:

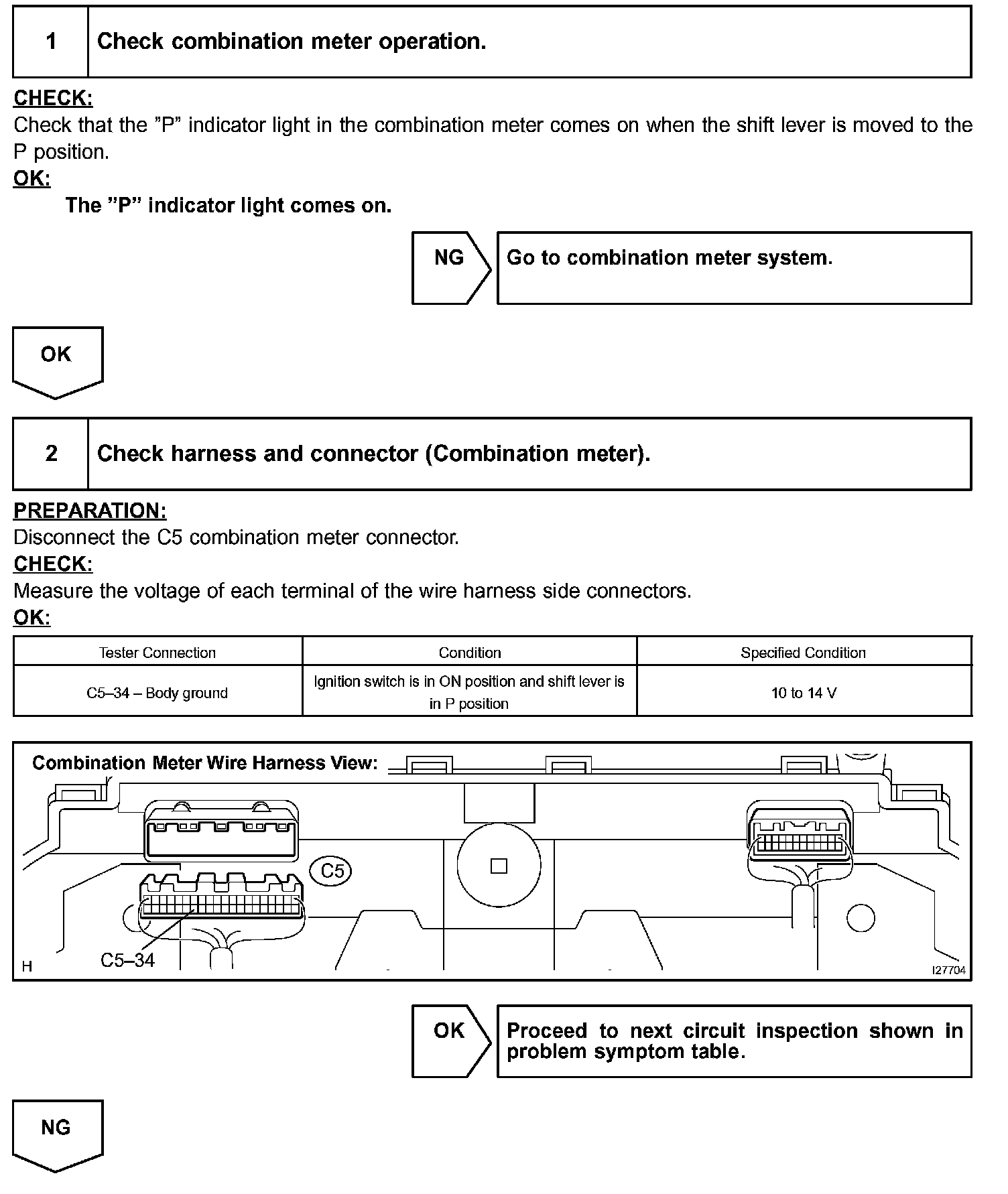

Step 1 - 2:

Step 3:

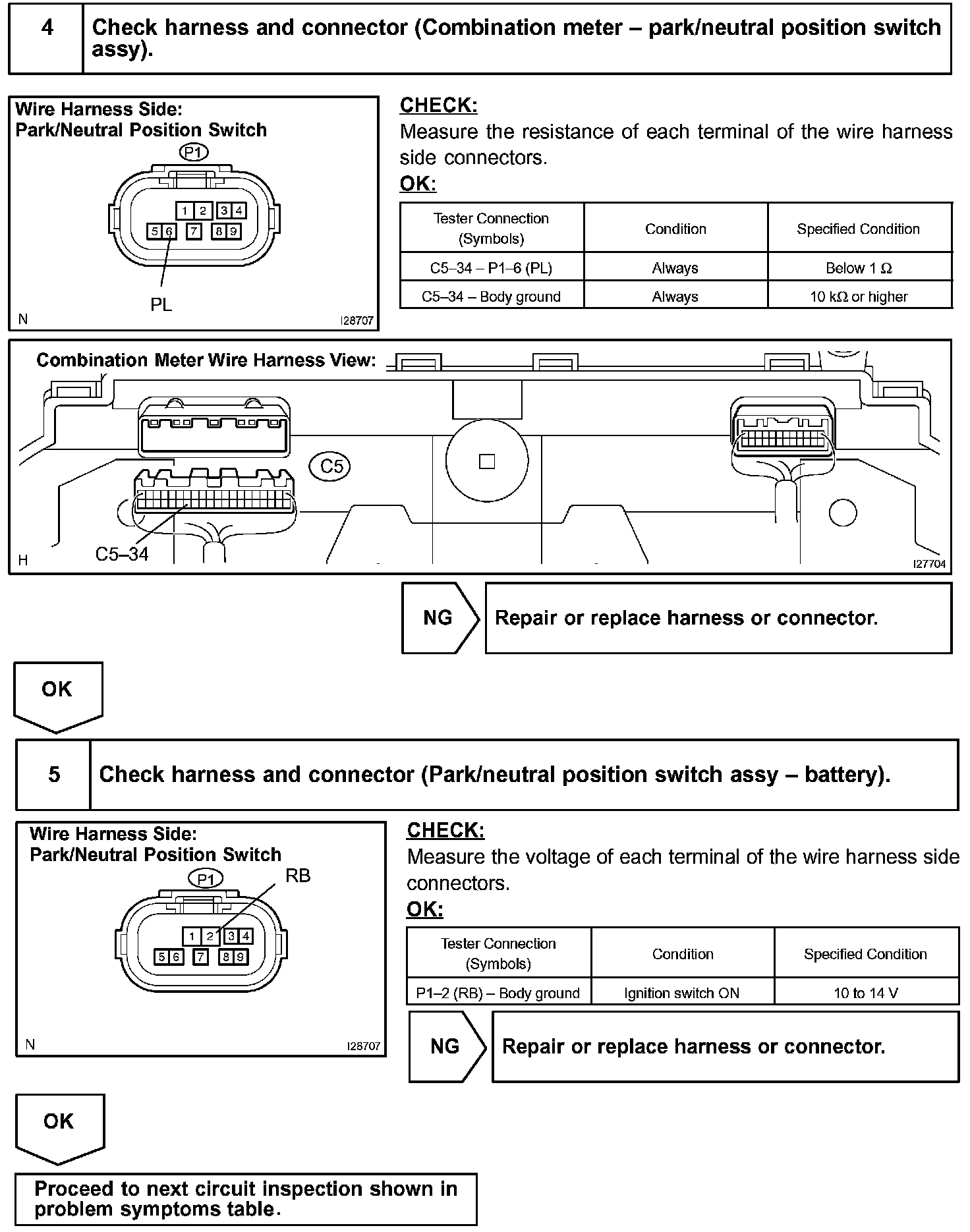

Step 4 - 5:

INSPECTION PROCEDURE
